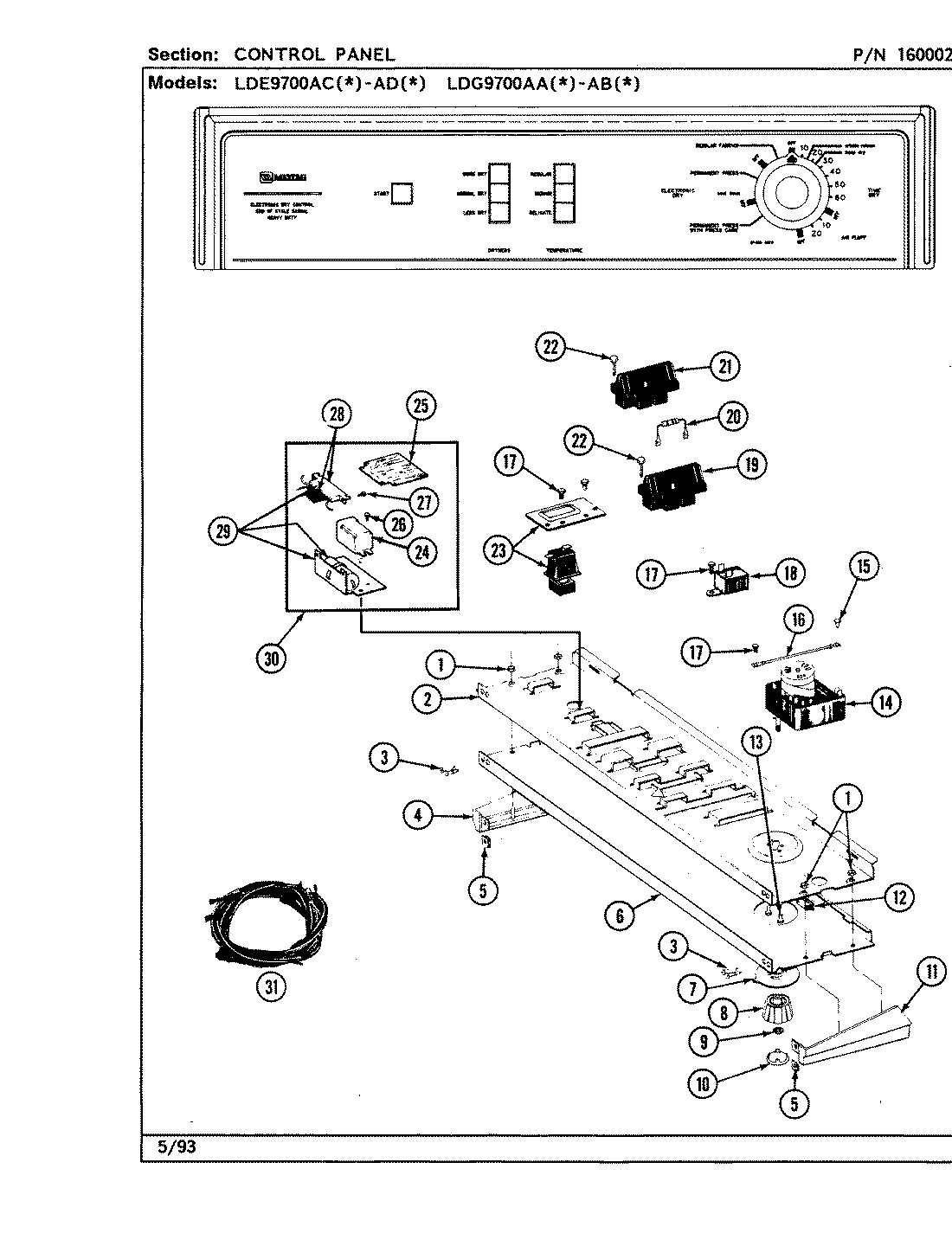

LDG9700ABL 03 – CONTROL PANEL

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 207215
5	MAY 214894
6	MAY 307320
7	MAY 315042
8	MAY 315041
9	W10155650 Whirlpool Nut
10	MAY 215821
11	MAY 207216
12	MAY 214897
13	MAY 910708
14	MAY Y307404
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	WP694419 Whirlpool Buzzer Adjuster
20	MAY 306917
21	MAY 307304
22	WP67006908 Whirlpool Refrigerator Screw
23	SWITCH PUSH TO START
24	MAY 307899
25	MAY Y307896
26	WP3177991 Whirlpool Screw
27	SCREW FOR CAUTION PLATE----NA
28	MAY 307422
29	EDGE BOARD CONNECTOR
30	MAY 307898
31	MAY 315080
31	MAY 16000327
31	MAY 307308
