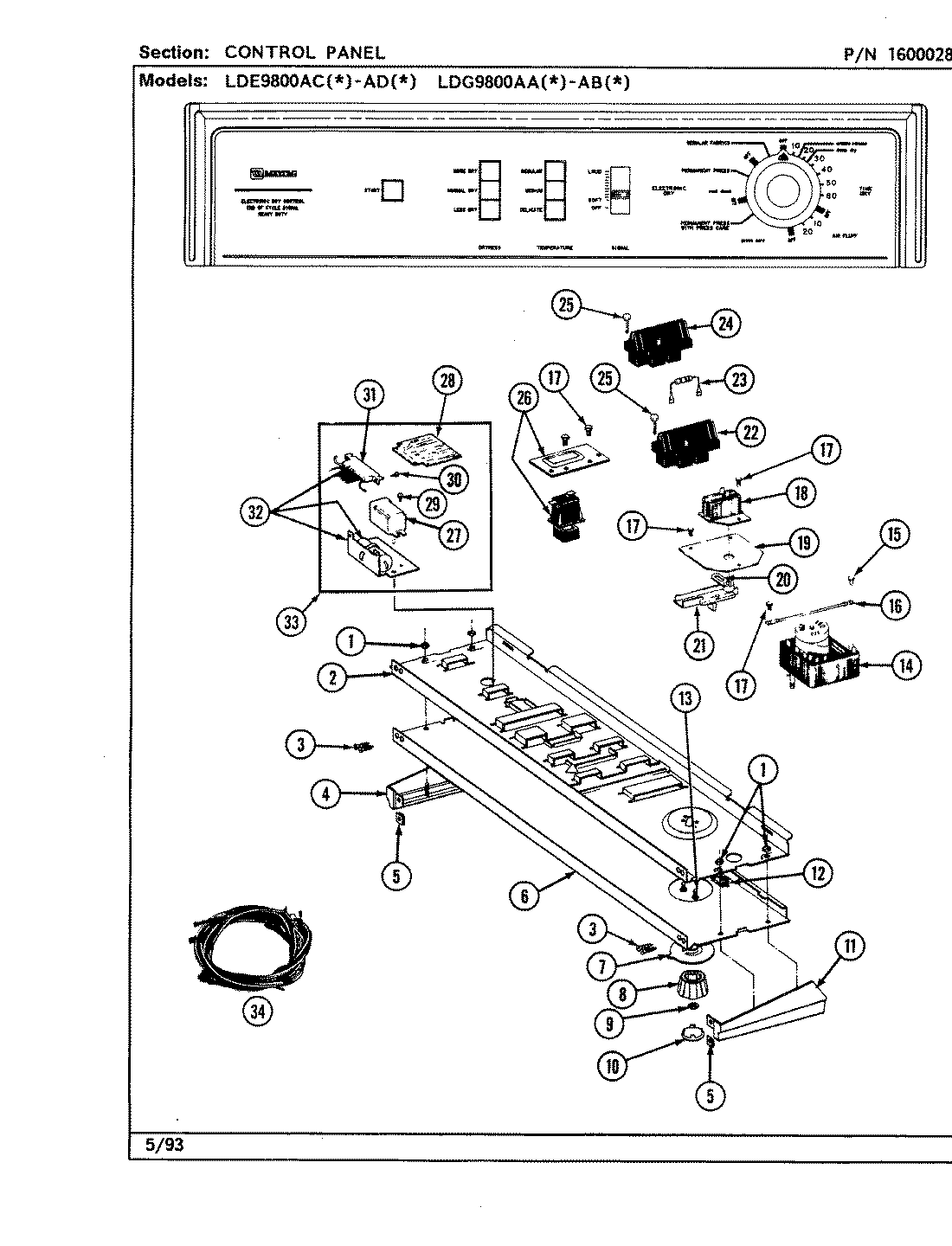

LDG9800AAW 03 – CONTROL PANEL

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 207215
5	MAY 214894
6	MAY 307321
7	MAY 315042
8	MAY 315041
9	W10155650 Whirlpool Nut
10	MAY 215821
11	MAY 207216
12	MAY 214897
13	MAY 910708
14	MAY Y307404
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	MAY Y305204
19	BRACKET FOR BUZZER
20	MAY 314171
21	SLIDE ASSY
23	MAY 306917
24	MAY 307304
25	WP67006908 Whirlpool Refrigerator Screw
26	SWITCH PUSH TO START
27	MAY 307899
28	MAY Y307896
29	WP3177991 Whirlpool Screw
30	SCREW FOR CAUTION PLATE----NA
31	MAY 307422
32	EDGE BOARD CONNECTOR
33	MAY 307898
34	INSTALL & INST PKG D9800C
34	MAY 315081
34	MAY 307294
