LDG9900BAW 03 – CONTROL PANEL – Aparts

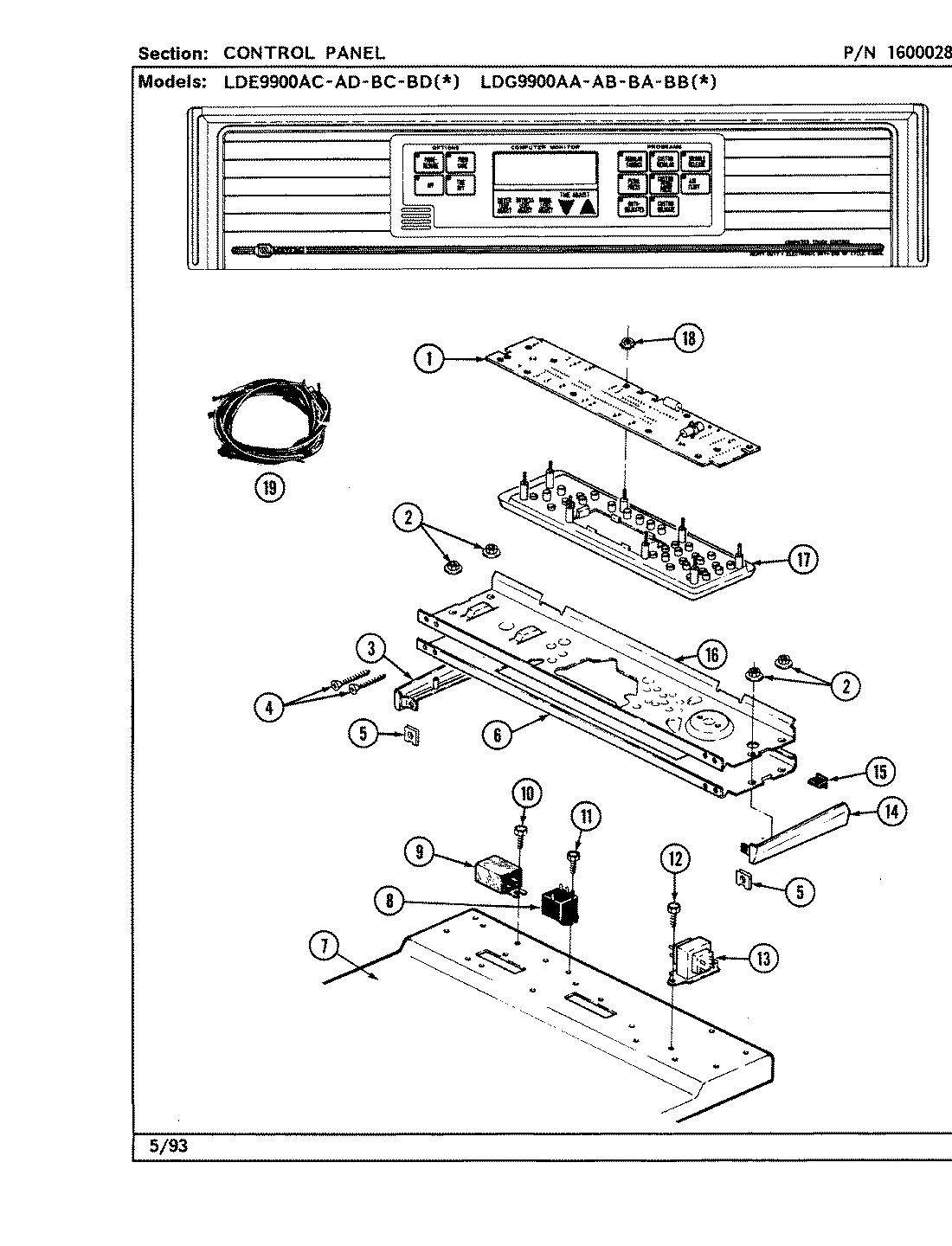

LDG9900BAW 03 – CONTROL PANEL

Products

Position	Product
1	MAY 307218
2	MAY 214872
3	MAY 207215
4	MAY 210932
5	MAY 214894
6	CONTROL PANEL
7	MAY 307104L
7	TOP COVER ASSY. (WHT)
8	MAY 206824
9	MAY 306199
10	WP3177991 Whirlpool Screw
12	WP90767 Whirlpool Screw
12	MAY Y313559
13	MAY 207766
14	MAY 207216
15	MAY 214897
16	BACKUP PLATE
17	MAY 307214
18	M0282005 Whirlpool Nut
19	WIRE HARNESS
19	MAY 315036
19	MAY 315030
19	MAY 16000327
19	MAY 308507
