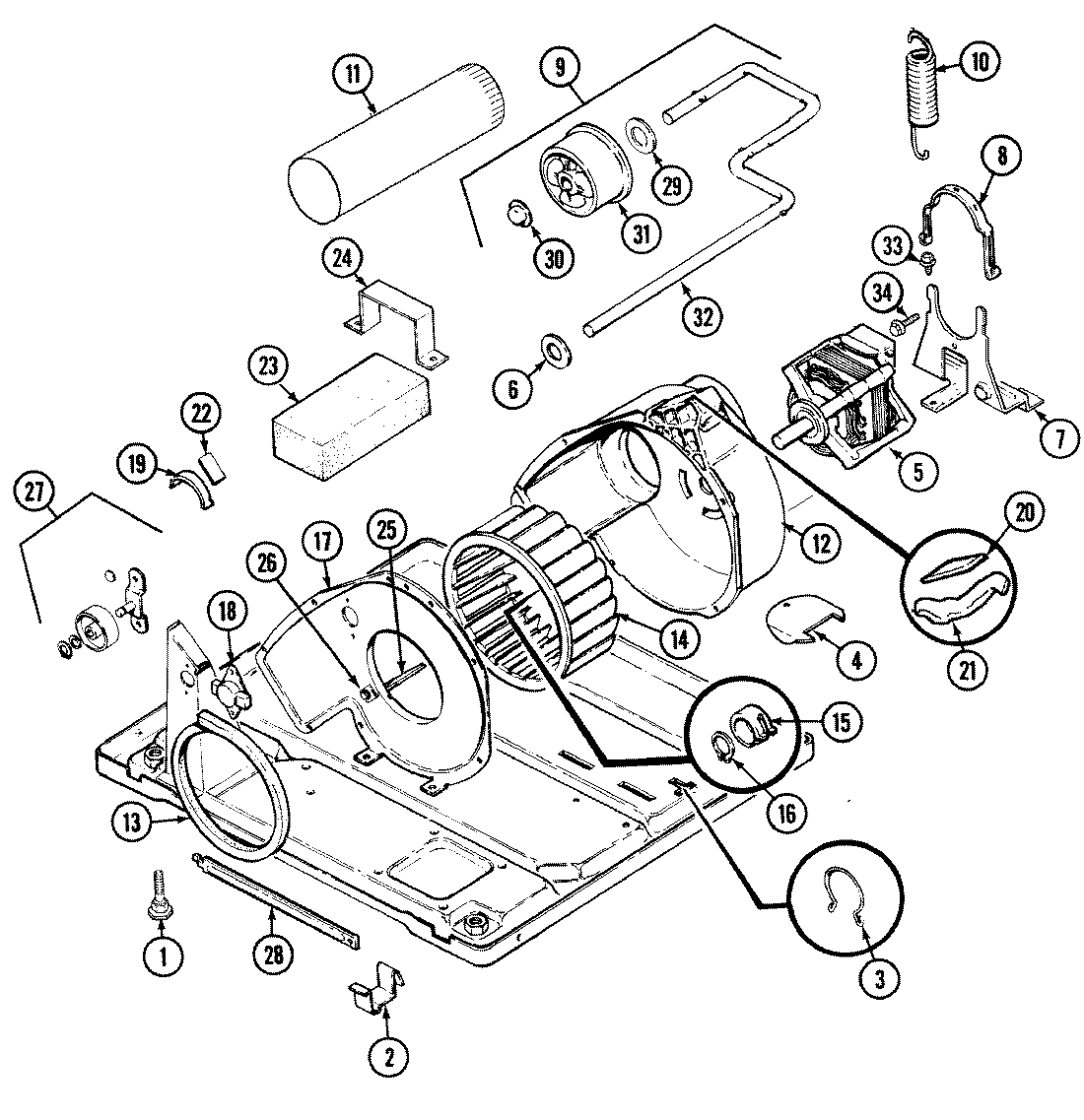

LDGA100AAW 05 – MOTOR & DRIVE

Products

Position	Product
1	W11117769 Whirlpool Refrigerator Leveler
2	WP53-0120 Whirlpool Clip
3	MAY 25-7027
4	MAY 25-7741
4	MAY 53-1921
5	W10410996 Whirlpool Dryer Drive Motor
5	MAY 53-2275
7	MAY 53-1932
7	MAY 25-7811
8	WP660658 Whirlpool Clamp
10	31001465 Whirlpool Idler Spring
11	MAY 53-0134
12	MAY 53-1801
13	12001324 Whirlpool Collector Duct
14	MAY 53-0106
14	31001043 Whirlpool Blower Wheel
15	MAY 25-7823
16	MAY 25-7855
17	MAY 25-7807
17	MAY 53-1934
18	MAY 25-2134
18	WP53-1107 Whirlpool Thermostat
19	LA-1006 Whirlpool Dryer Right Hand Glide Kit
19	WP31001470 Whirlpool Glide Assembly
20	WP31001356 Whirlpool Glide Pad
21	WP31001469 Whirlpool Glide Assembly
22	MAY LA-1008
22	MAY 53-1684
23	MAY 53-0645
24	MAY 53-0644
24	SCREW
25	MAY 53-1026
26	MAY 25-3457
27	12002126 Whirlpool Refrigerator Reinforcement Brace Glide
28	MAY 53-1625
29	MAY 25-7815
30	MAY 25-7957
31	MAY 53-1628
32	WP53-2287 Whirlpool Idler Assembly
33	MAY 25-7699
34	MAY 25-7674
