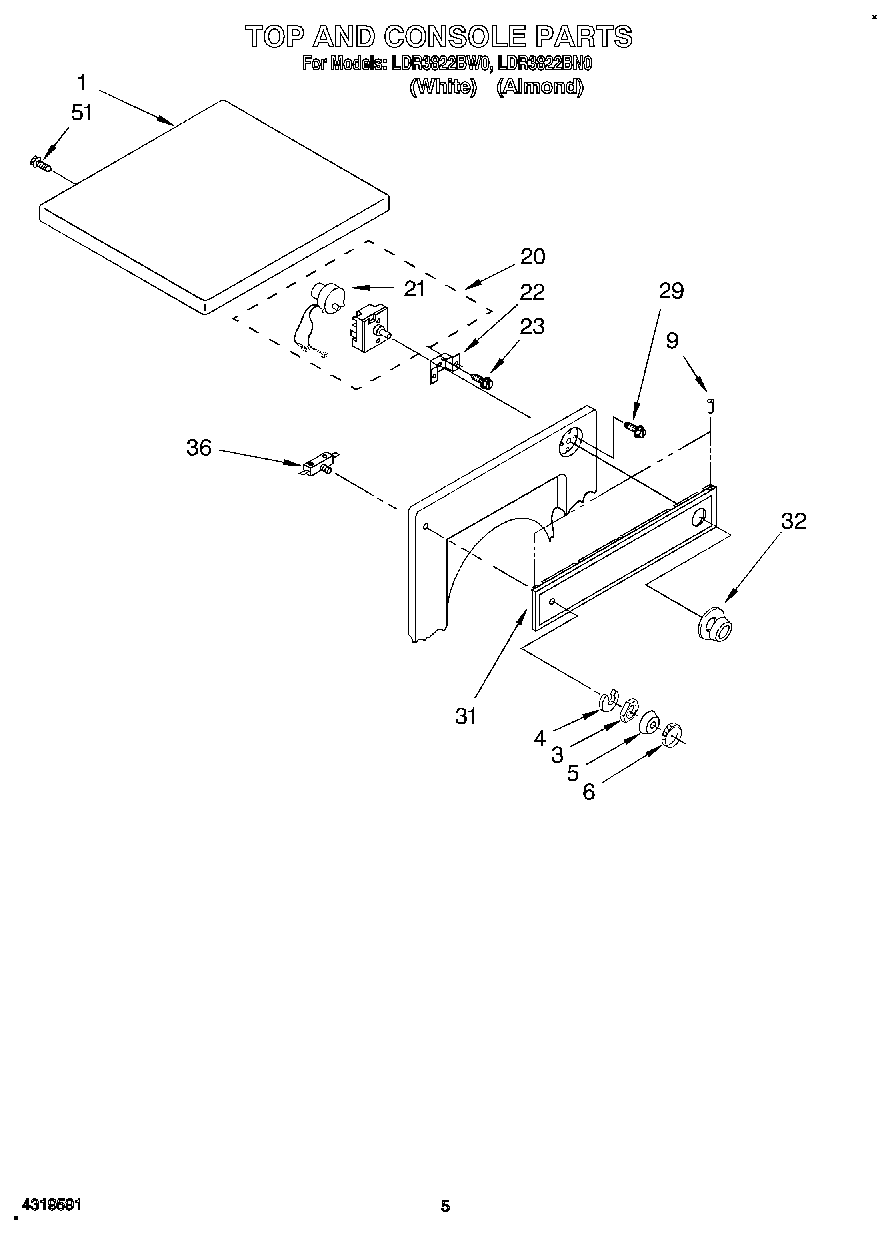

LDR3822BW0 03 – SECTION

Products

Position	Product
1	345703 Whirlpool White Maintop
1	Top (Almond)
3	Nut, Hex
4	Lockwasher
5	Ring, Trim
6	Nut, Knurled
9	Rivet, Plastic (4)
20	WP8563881 Whirlpool Timer
21	(Timer Motor Not Serviceable)
22	348171 Whirlpool Bracket
23	303776 Whirlpool Dishwasher Screw
29	WPW10139210 Whirlpool Screw
31	Panel, Control (White)
31	Panel, Control (Almond)
32	Timer Knob & Dial (White)
32	Timer Knob & Dial (Almond)
36	Switch, Push-To-Start
51	SCREW
