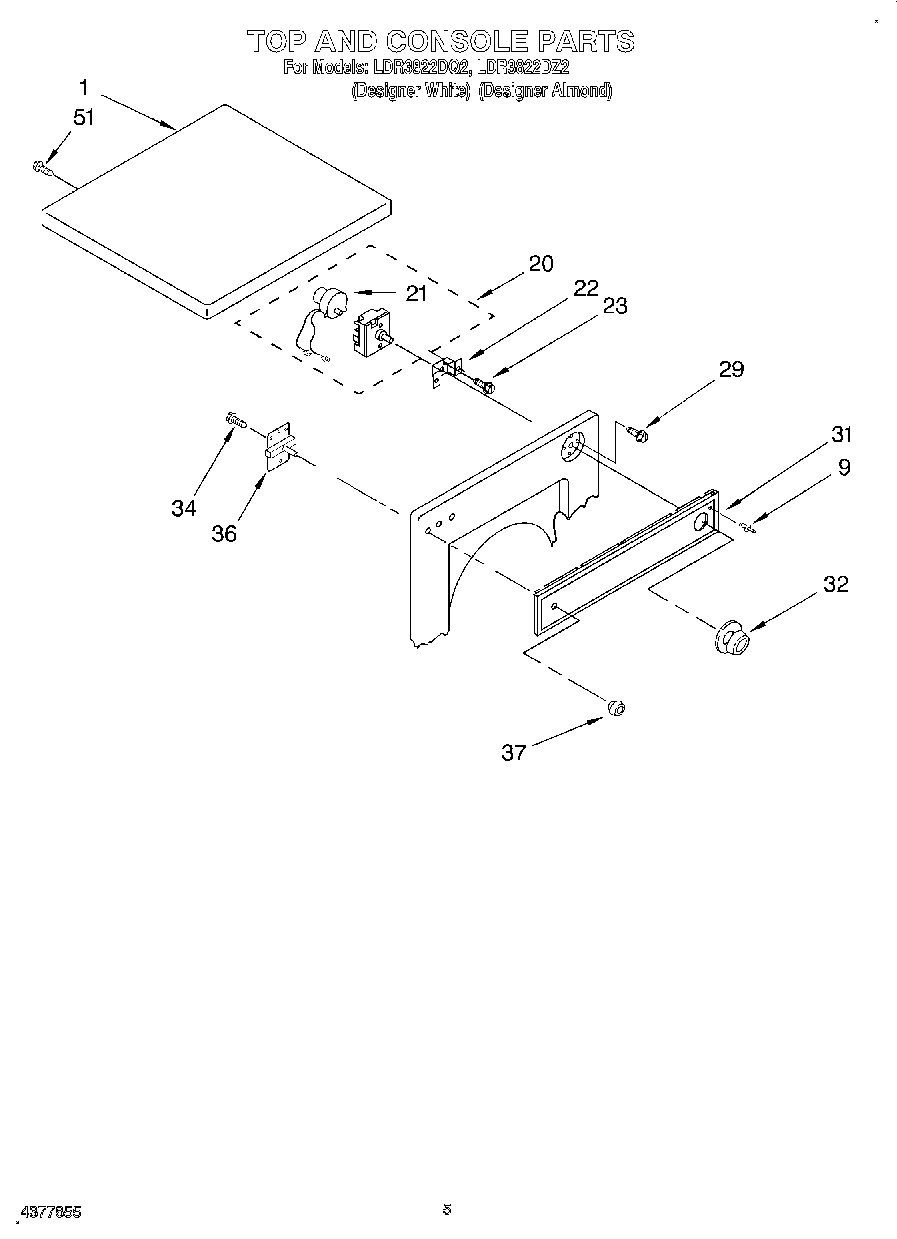

LDR3822DQ2 03 – SECTION

Products

Position	Product
1	Top (Almond)
1	345703 Whirlpool White Maintop
9	Rivet, Plastic (4)
20	WP8563881 Whirlpool Timer
21	(Timer Motor Not Serviceable)
22	348171 Whirlpool Bracket
23	WP3400882 Whirlpool Screw
29	WPW10139210 Whirlpool Screw
31	Panel, Control (Almond)
31	Panel, Control (White)
32	Timer Knob & Dial (White)
32	Timer Knob & Dial (Almond)
34	WP3390631 Whirlpool Screw
36	Switch, Push-To-Start
37	WP3957800 Whirlpool Knob
51	SCREW
