LDR3822HQ0 03 – SECTION

Products

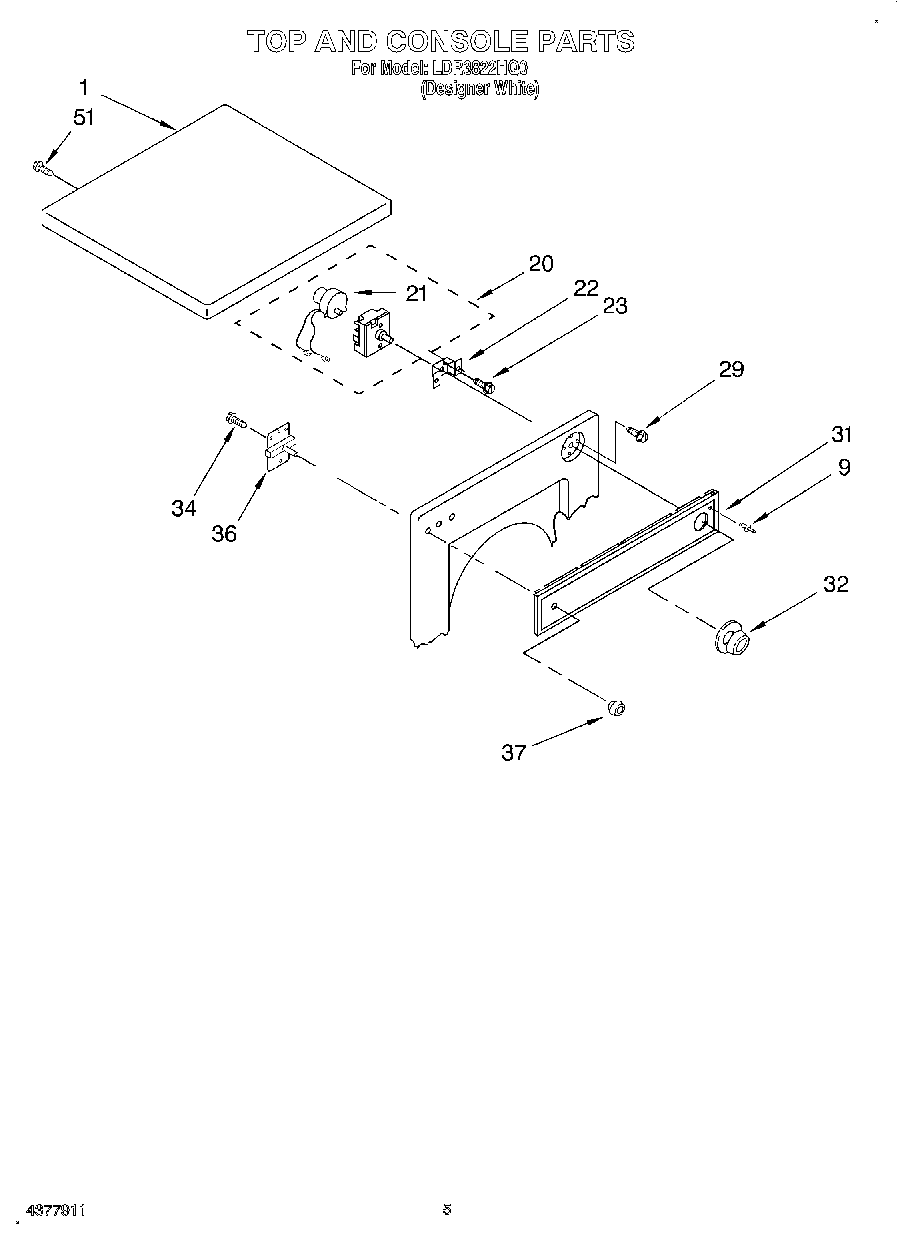

PositionProduct
1345703 Whirlpool White Maintop
9Rivet, Plastic (4)
20WP8563881 Whirlpool Timer
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23WP3400882 Whirlpool Screw
29WPW10139210 Whirlpool Screw
31Panel, Control (White)
32Timer Knob & Dial (White)
34WP3390631 Whirlpool Screw
36Switch, Push-To-Start
37WP3957800 Whirlpool Knob
51SCREW
