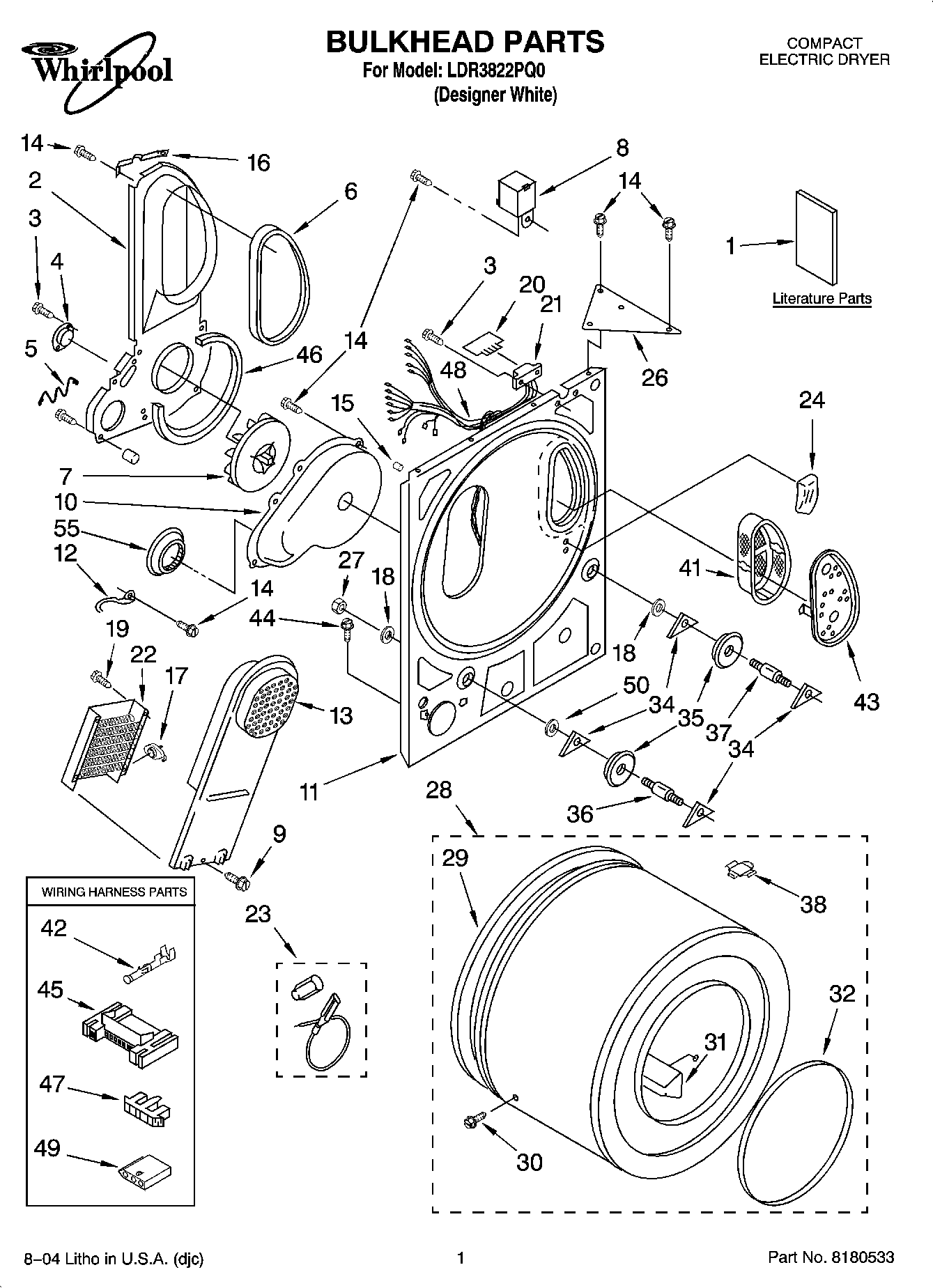

LDR3822PQ0 01 – BULKHEAD PARTS

Products

Position	Product
1	Use & Care Guide
1	Label, Energy Guide
1	Label, Wiring Diagram
1	Label, Operating Instructions
2	Air Duct Assembly
3	WPW10139210 Whirlpool Screw
4	WP694674 Whirlpool Cycling Thermostat
5	345965 Whirlpool Guard
6	SEAL
7	WP696426 Whirlpool Wheel
8	WP694419 Whirlpool Buzzer Adjuster
9	WP489463 Whirlpool Refrigerator Screw
10	696419 Whirlpool Housing
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	WP3401380 Whirlpool Box
14	SCREW
15	W10491983 Whirlpool Tine Tip
16	345396 Whirlpool Clip
17	WP3404153 Whirlpool Thermostat
18	WP348197 Whirlpool Washer Assembly
19	WP90767 Whirlpool Screw
20	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
21	3391885 Whirlpool Connector
22	WP3403591 Whirlpool Element
23	279457 Whirlpool Dryer Heating Element Wide Spade Connection
24	SENSOR KIT
26	345325 Whirlpool Gusset
27	WP3359452 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	WPW10109200 Whirlpool Screw
31	685207 Whirlpool Dryer Baffle
32	WP3394508 Whirlpool Bearing Ring
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
38	8066086 Whirlpool Plug
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
42	WP94614 Whirlpool Terminal
44	WP3390631 Whirlpool Screw
45	3395683 Whirlpool Connector
46	8066094 Whirlpool Seal
47	Connector, Timer
48	8299820 Whirlpool Wire Harness
49	3936144 Whirlpool Connector
50	WP3388703 Whirlpool Washer
55	W11233063 Whirlpool Shield Assembly
