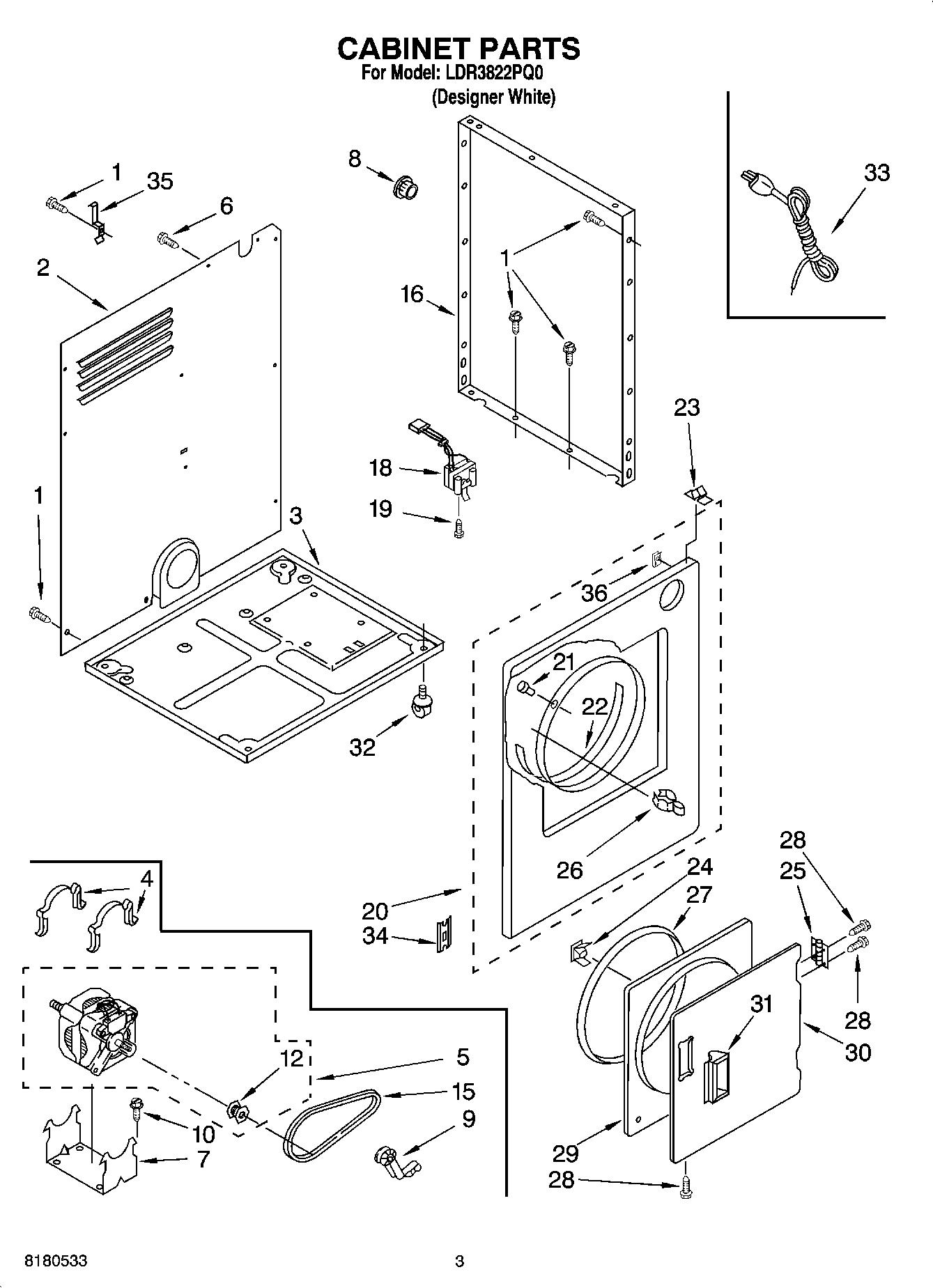

LDR3822PQ0 02 – CABINET PARTS

Products

PositionProduct
1SCREW
2280048 Whirlpool Rear Panel
3WP348726 Whirlpool Base Assembly
4WP660658 Whirlpool Clamp
5WPW10448901 Whirlpool Drive Motor
6W10850756 Whirlpool Screw
7696541 Whirlpool Base
88066084 Whirlpool Clip
9WP691366 Whirlpool Dryer Idler Pulley Assembly
10WP3390631 Whirlpool Screw
128066051 Whirlpool Motor Pulley
153394652 Whirlpool Drum Belt
16Panel, Side (2) (White)
18WP3406105 Whirlpool Door Switch
19WP3395530 Whirlpool Screw
20280044 Whirlpool Panel
21279220 Whirlpool Clip
22279264 Whirlpool Bearing and Seal Kit
23WP345670 Whirlpool Lock
24WP3389441 Whirlpool Door Catch
25WP348023 Whirlpool Hinge
26279570 Whirlpool Dryer Door Latch Kit
27W11613302 Whirlpool Door Seal
28WP694091 Whirlpool Screw
29280077 Whirlpool Door
30WP348205 Whirlpool Door
318562104 Whirlpool Handle
32279127 Whirlpool Caster
33Cord, Power
34W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35345790 Whirlpool Bracket
36WP98234 Whirlpool Nut
