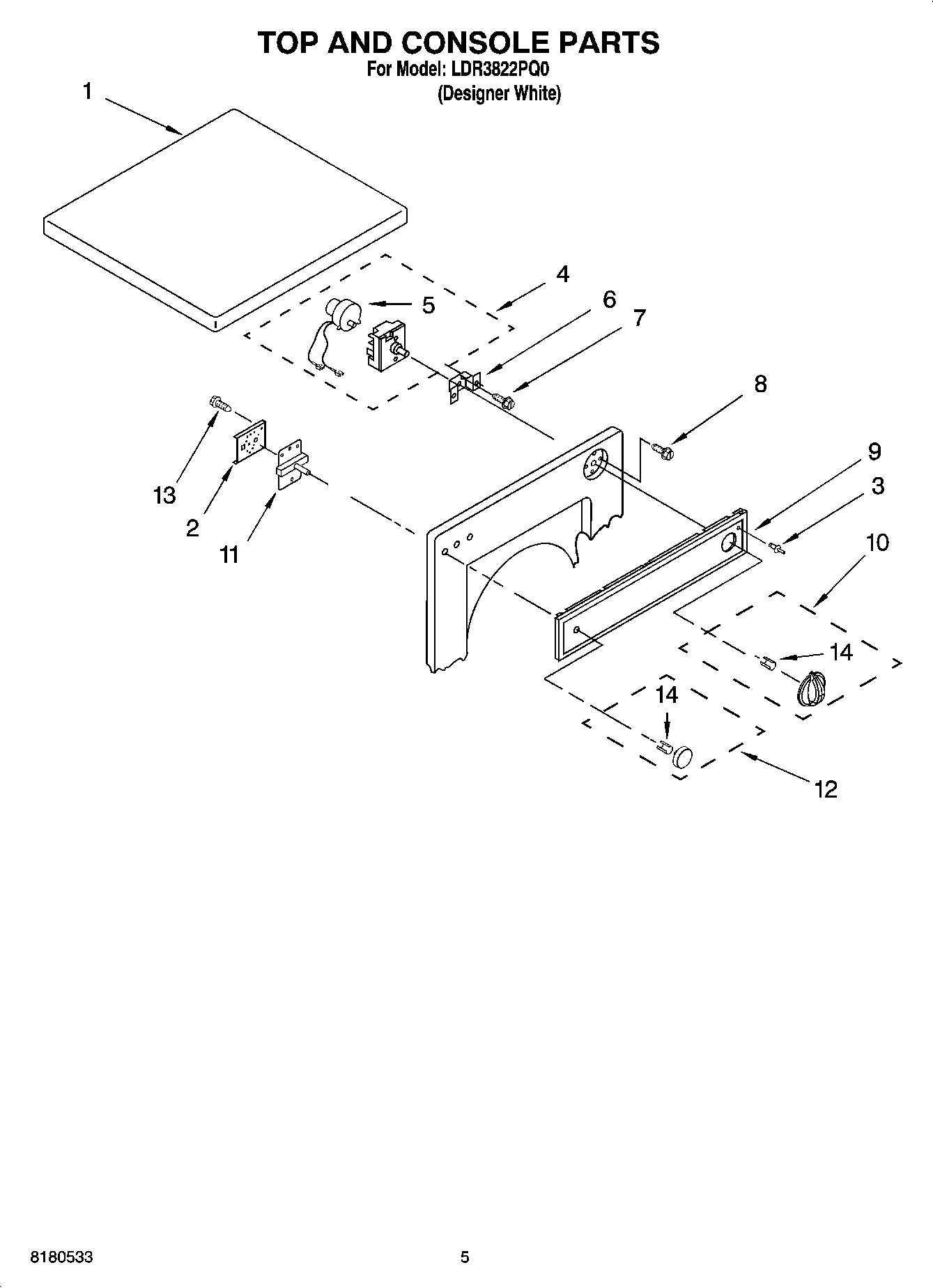

LDR3822PQ0 03 – TOP AND CONSOLE PARTS, OPTIONAL PARTS (NOT INCLUDED)

LDR3822PQ0 03 – TOP AND CONSOLE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

LDR3822PQ0 03 – TOP AND CONSOLE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
1345703 Whirlpool White Maintop
23406860 Whirlpool Bracket
3Rivet, Plastic (4)
4WP8563881 Whirlpool Timer
5(Timer Motor Not Serviceable)
6348171 Whirlpool Bracket
7WP486579 Whirlpool Air Conditioner Screw
8WPW10139210 Whirlpool Screw
9Panel, Control
10W10756270 Whirlpool Dryer Timer Knob
11WP3977456 Whirlpool Start Switch
12WP8544939 Whirlpool Knob Assembly
13WP3390631 Whirlpool Screw
14WP8536939 Whirlpool Spring Clip
