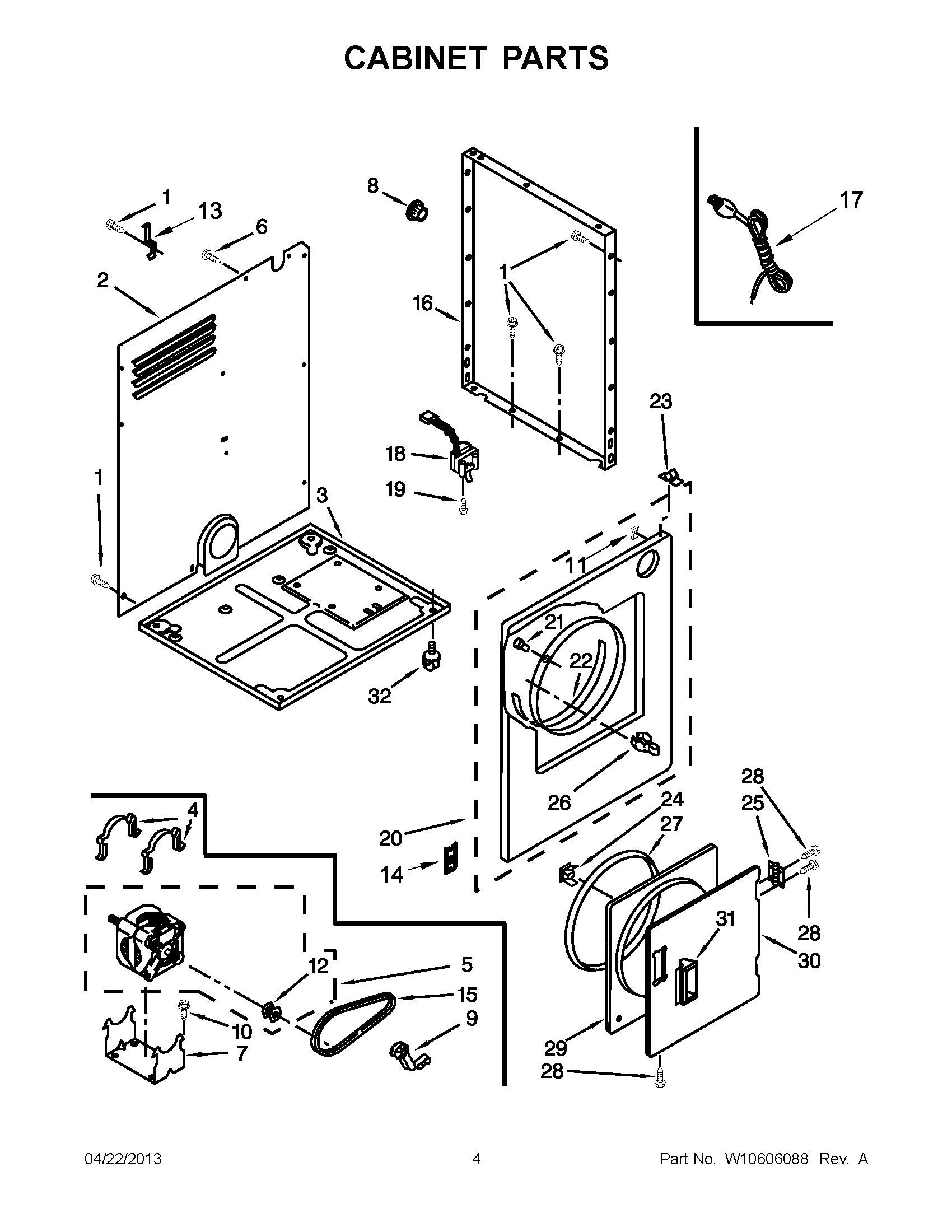

LDR3822PQ2 02 – CABINET PARTS
Written by
in
LDR3822PQ2 02 – CABINET PARTS
Products
Position
Product
1
SCREW
2
280048 Whirlpool Rear Panel
3
WP348726 Whirlpool Base Assembly
4
CLAMP
5
WPW10448901 Whirlpool Drive Motor
6
WP90767 Whirlpool Screw
7
696541 Whirlpool Base
8
8066084 Whirlpool Clip
9
WP691366 Whirlpool Dryer Idler Pulley Assembly
10
WP3390631 Whirlpool Screw
11
WP98234 Whirlpool Nut
12
8066051 Whirlpool Motor Pulley
13
345790 Whirlpool Bracket
14
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
15
3394652 Whirlpool Drum Belt
16
Panel, Side (2) (White)
17
CORD, POWER
18
WP3406105 Whirlpool Door Switch
19
WP3395530 Whirlpool Screw
20
280044 Whirlpool Panel
21
279220 Whirlpool Clip
22
279264 Whirlpool Bearing and Seal Kit
23
WP345670 Whirlpool Lock
24
WP3389441 Whirlpool Door Catch
25
WP348023 Whirlpool Hinge
26
279570 Whirlpool Dryer Door Latch Kit
27
W11613302 Whirlpool Door Seal
28
WP488627 Whirlpool Refrigerator Screw
29
280077 Whirlpool Door
30
WP348205 Whirlpool Door
31
8562104 Whirlpool Handle
32
279127 Whirlpool Caster
←
