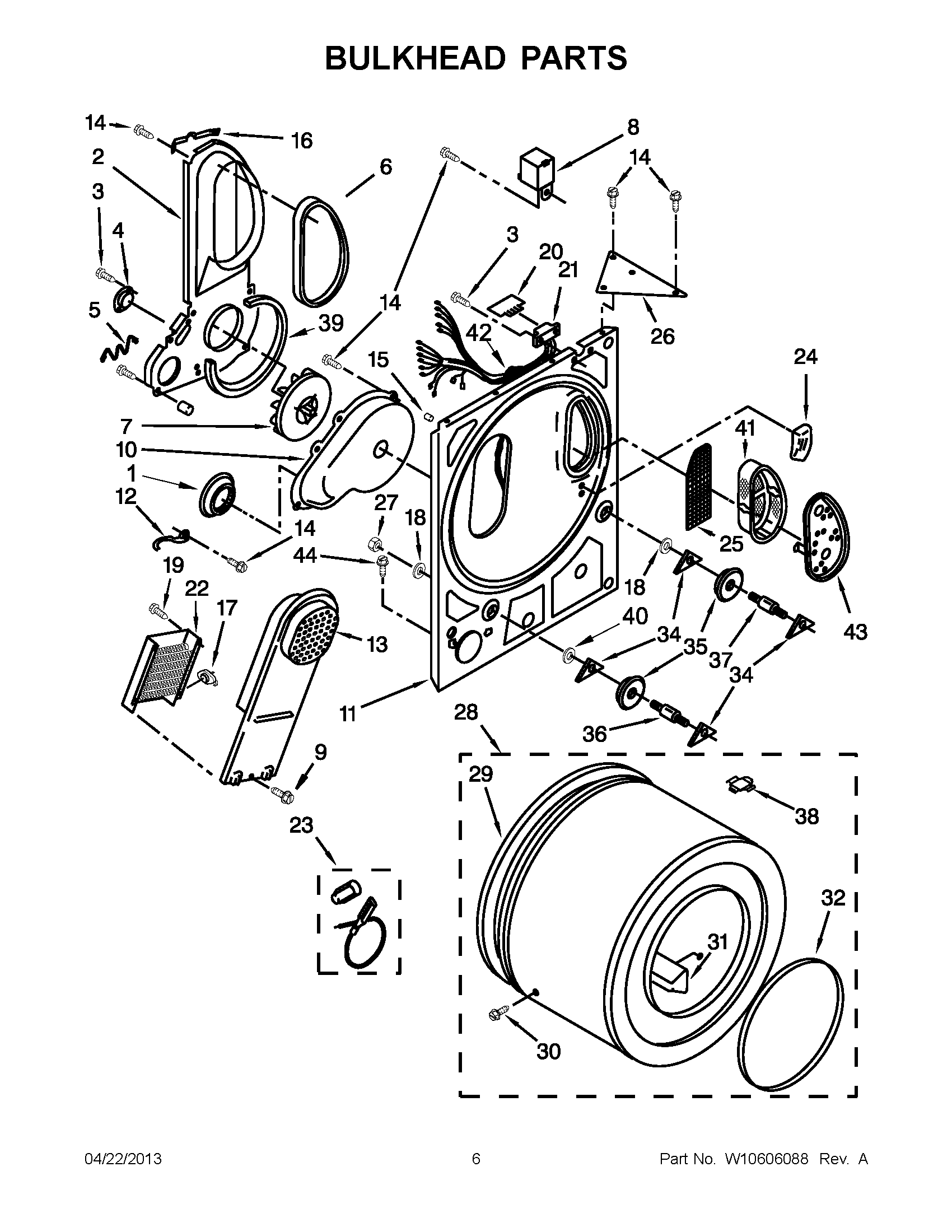

LDR3822PQ2 03 – BULKHEAD PARTS

LDR3822PQ2 03 – BULKHEAD PARTS

Written by

in

LDR3822PQ2 03 – BULKHEAD PARTS

Products

PositionProduct
1W11233063 Whirlpool Shield Assembly
2Air Duct Assembly
3WP90767 Whirlpool Screw
4WP694674 Whirlpool Cycling Thermostat
5345965 Whirlpool Guard
6SEAL
7WP696426 Whirlpool Wheel
8W10503559 Whirlpool Buzzer Adjuster
9WP489463 Whirlpool Refrigerator Screw
10696419 Whirlpool Housing
11279848 Whirlpool Bulkhead
12279771 Whirlpool Clip
13WP3401380 Whirlpool Box
14SCREW
15W10491983 Whirlpool Tine Tip
16345396 Whirlpool Clip
17WP3404153 Whirlpool Thermostat
18WP348197 Whirlpool Washer Assembly
20WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
213391885 Whirlpool Connector
22WP3403591 Whirlpool Element
23279457 Whirlpool Dryer Heating Element Wide Spade Connection
24SENSOR KIT
25Screen, Back-Up
26345325 Whirlpool Gusset
27WP3359452 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30W10853898 Whirlpool Screw
31685207 Whirlpool Dryer Baffle
32WP3394508 Whirlpool Bearing Ring
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
388066086 Whirlpool Plug
398066094 Whirlpool Seal
40WP3388703 Whirlpool Washer
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
42W11368311 Whirlpool Wire Harness
44WP3390631 Whirlpool Screw
