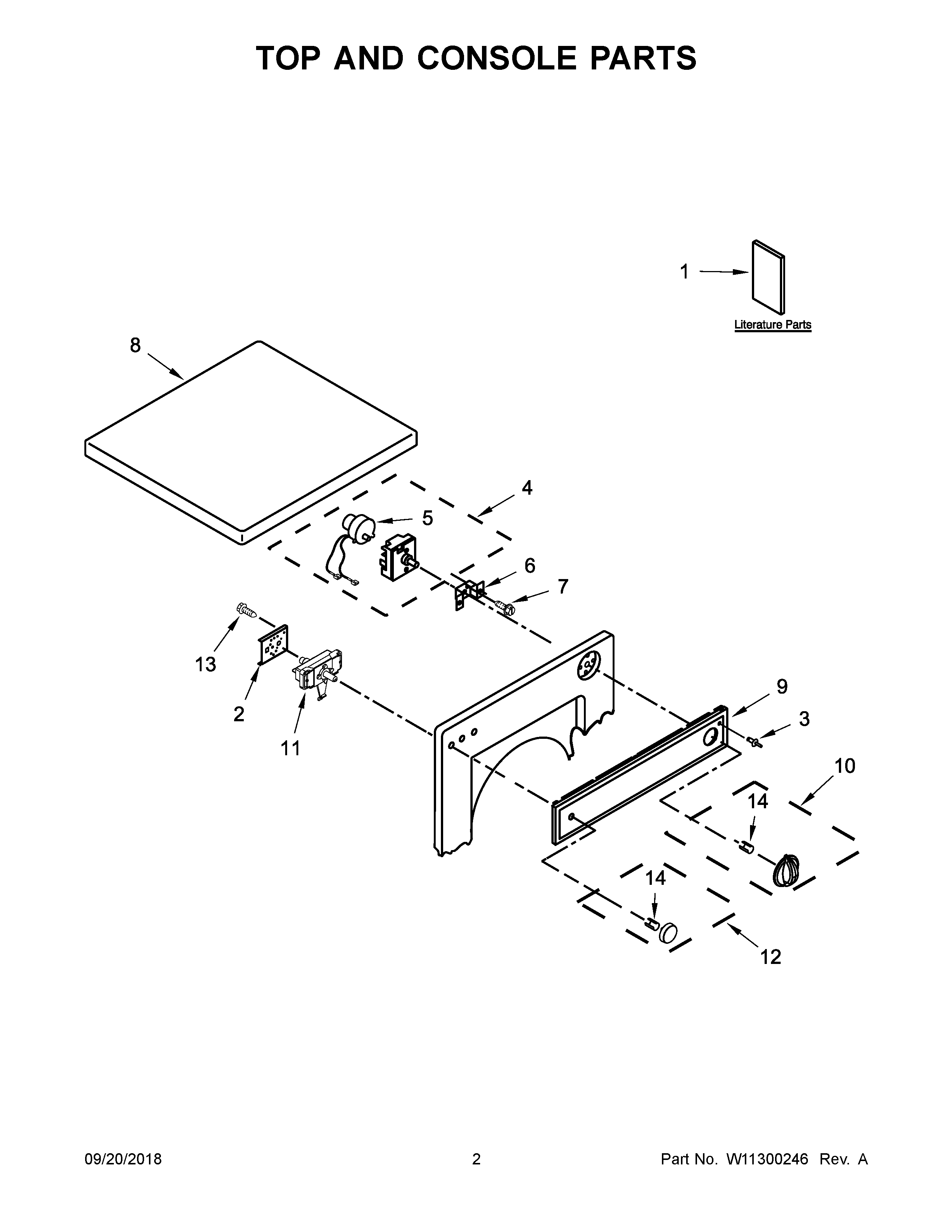

LDR3822PQ3 02 – TOP AND CONSOLE PARTS

LDR3822PQ3 02 – TOP AND CONSOLE PARTS

Written by

in

LDR3822PQ3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE & CARE GUIDE
23406860 Whirlpool Bracket
3Rivet, Plastic (4)
4WP8563881 Whirlpool Timer
5CABINET (NOT A SERVICEABLE PART)
6348171 Whirlpool Bracket
7WP3400882 Whirlpool Screw
8345703 Whirlpool White Maintop
9W11300601 Whirlpool Control Panel
10W10756270 Whirlpool Dryer Timer Knob
11WPW10503561 Whirlpool Push To Start Switch
12WP8544939 Whirlpool Knob Assembly
13WP3390631 Whirlpool Screw
14WP8536939 Whirlpool Spring Clip
