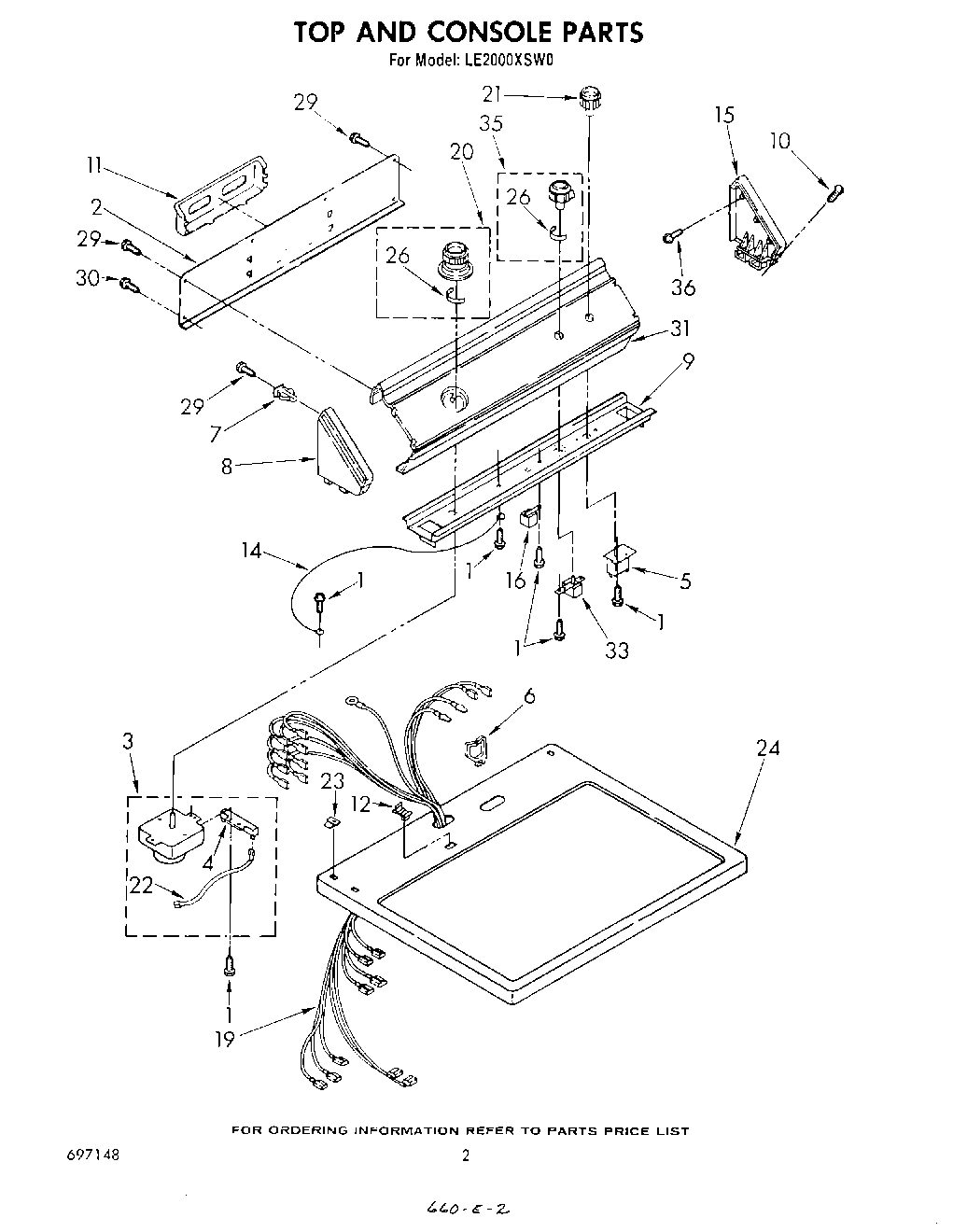

LE2000XSW0 02 – TOP AND CONSOLEadmin2025-04-26T12:15:35+00:00LE2000XSW0 02 – TOP AND CONSOLE
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | Panel, Rear Console |
| 3 | Timer & Resistor 60 Hz. |
| 4 | 279872 Whirlpool Resistor |
| 5 | Switch, Push-To-Start |
| 6 | Clip, Wire |
| 7 | WP689559 Whirlpool Nut |
| 8 | Cap, End (L.H.) |
| 9 | Bracket, Control |
| 10 | WPL 64211 |
| 11 | Rack, Literature |
| 12 | Stop, Push-In Top |
| 14 | Wire, Ground |
| 15 | WPL 63795 |
| 16 | WP694419 Whirlpool Buzzer Adjuster |
| 19 | Harness, Wiring |
| 20 | Timer Knob Assembly |
| 21 | Knob, Push-To-Start |
| 22 | Wire, Jumper |
| 23 | Nut, Push-In (2) |
| 24 | Top (Platinum) |
| 24 | Top (Toast) |
| 24 | Top (Almond) |
| 24 | Top (Golden Wheat) |
| 24 | Top (White) |
| 26 | WP688805 Whirlpool Spring Clip |
| 29 | WP489069 Whirlpool Compactor Screw |
| 30 | WP693995 Whirlpool Screw |
| 31 | Panel, Console |
| 33 | Switch, Temperature (Variable) |
| 35 | Control Knob, Temperature |
| 36 | WPL 355326 |
