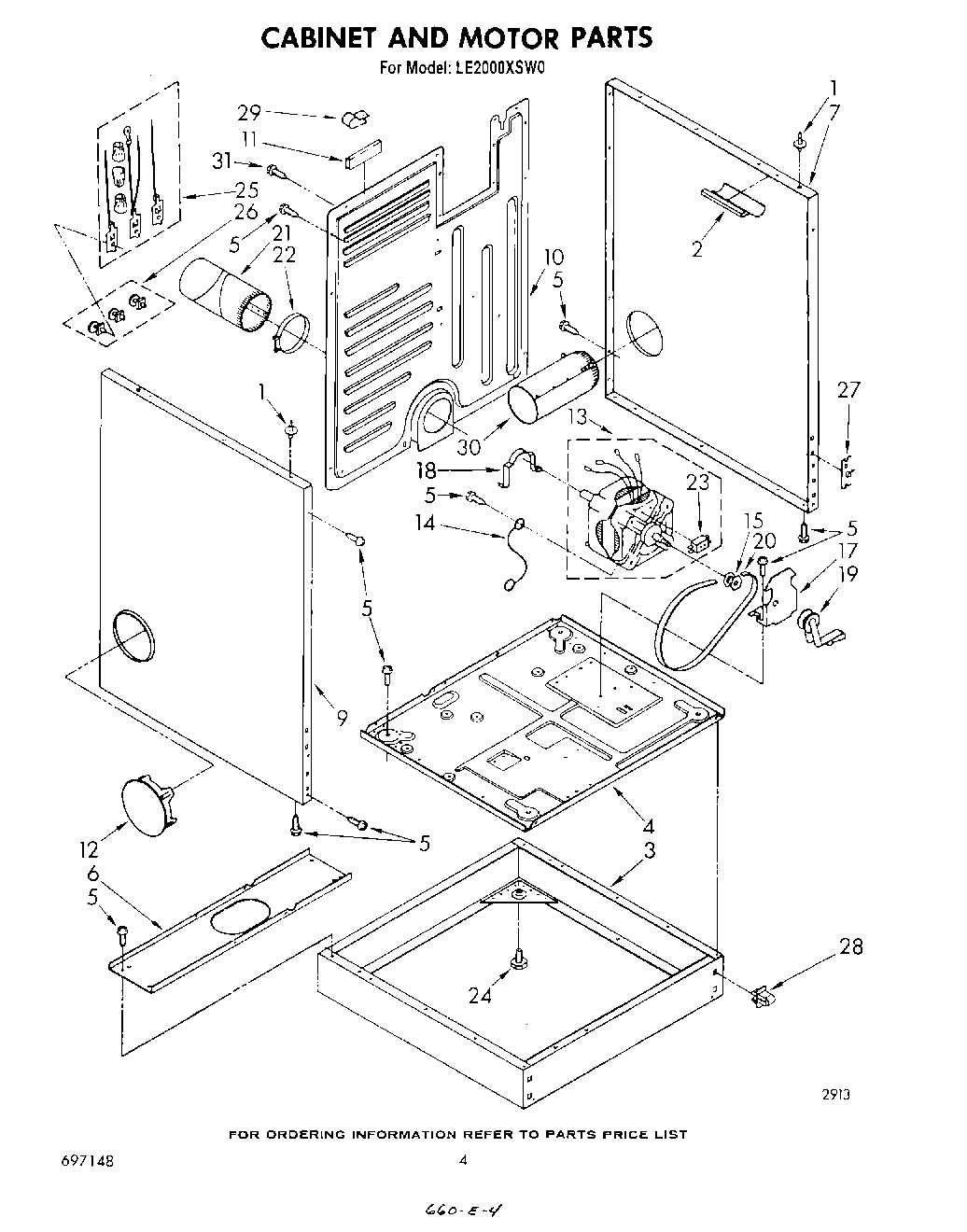

LE2000XSW0 03 – CABINET AND MOTORadmin2025-04-26T12:15:32+00:00LE2000XSW0 03 – CABINET AND MOTOR
Products
| Position | Product |
|---|
| 1 | Locator, Top |
| 2 | 686770 Whirlpool Support Bracket |
| 3 | Pedestal Assembly |
| 4 | WP348726 Whirlpool Base Assembly |
| 5 | SCREW |
| 6 | Coverplate, Pedestal Rear Bottom |
| 7 | Panel, Side (R.H.) (Golden Wheat) |
| 7 | Panel, Side (R.H.) (White) |
| 7 | Panel, Side (R.H.) (Almond) |
| 7 | Panel, Side (R.H.) (Platinum) |
| 7 | Panel, Side (R.H.) (Toast) |
| 9 | Panel, Side (L.H.) (Almond) |
| 9 | Panel, Side (L.H.) (Platinum) |
| 9 | Panel, Side (L.H.) (Toast) |
| 9 | Panel, Side (L.H.) (White) |
| 9 | Panel, Side (L.H.) (Golden Wheat) |
| 10 | 280050 Whirlpool Rear Panel |
| 11 | Protector, Panel (2) |
| 12 | Plug, Side Panel (2) (Golden Harvest) |
| 12 | Plug, Side Panel (2) (Platinum) |
| 12 | Plug, Side Panel (2) (Toast) |
| 12 | Plug, Side Panel (2) (Almond) |
| 12 | 692790 Whirlpool Plug |
| 14 | Wire, Ground |
| 15 | W10837625 Whirlpool Dryer Motor Pulley |
| 17 | 696541 Whirlpool Base |
| 18 | WP660658 Whirlpool Clamp |
| 19 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 20 | 3394652 Whirlpool Drum Belt |
| 21 | Pipe, Exhaust |
| 22 | Clamp, Hose |
| 23 | 279827 Whirlpool Dryer Drive Motor |
| 24 | WP233550 Whirlpool Leveling Feet |
| 25 | 279318 Whirlpool Terminal |
| 26 | 279393 Whirlpool Terminal Block Screw and Nut Kit |
| 27 | W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip |
| 28 | WPL 3388595 |
| 29 | 687000 Whirlpool Connector |
| 30 | WPL 693738 |
