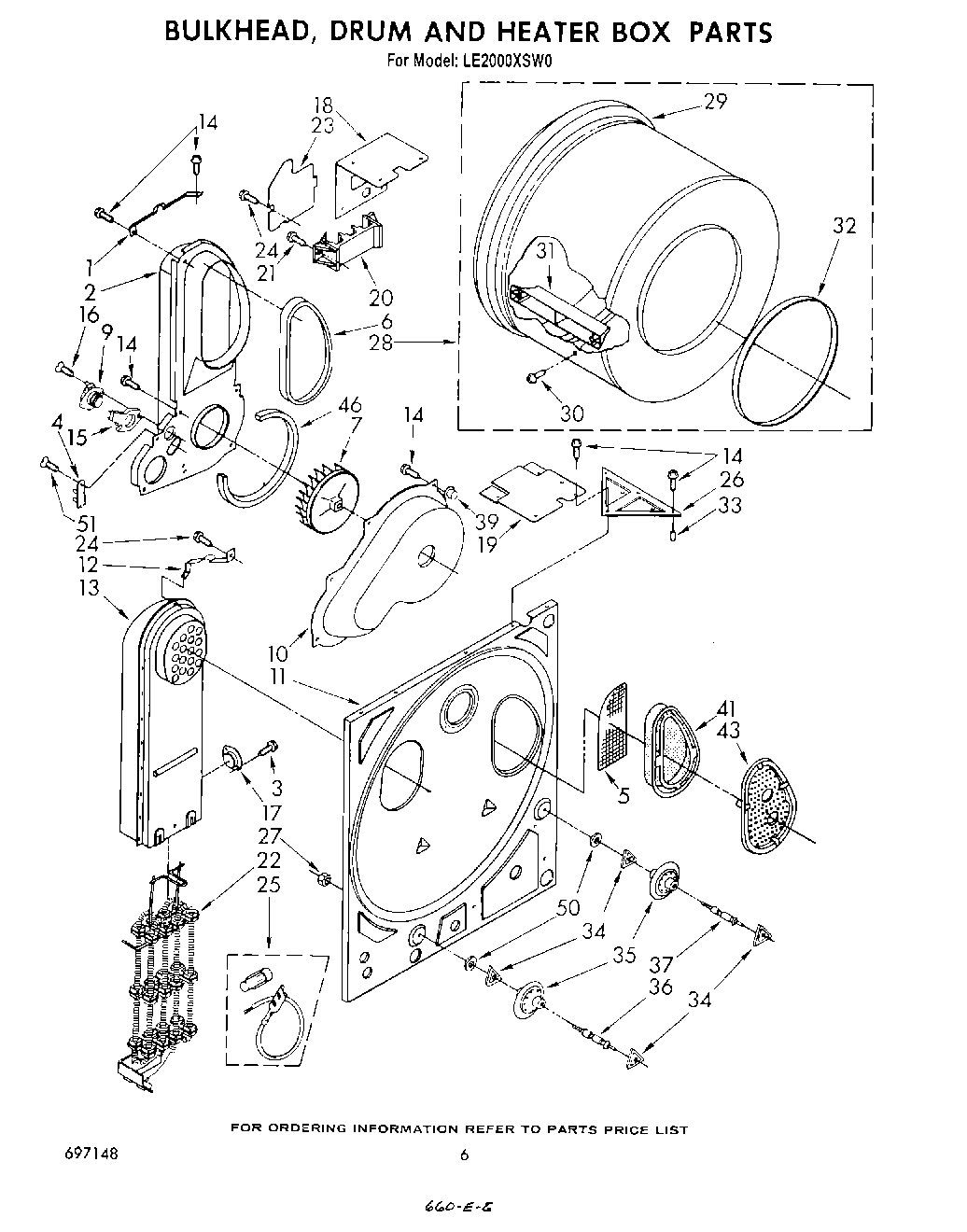

LE2000XSW0 04 – BULKHEAD, DRUM AND HEATER BOX, LITE

LE2000XSW0 04 – BULKHEAD, DRUM AND HEATER BOX, LITE

Written by

in

LE2000XSW0 04 – BULKHEAD, DRUM AND HEATER BOX, LITE

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3387072
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Guide, Dryer
WPL 72112
WPL LIT697148
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT3388160
1345396 Whirlpool Clip
2Duct, Air
3WP90767 Whirlpool Screw
4WP3392519 Whirlpool Dryer Thermal Fuse
5Screen, Back-Up
6SEAL
7WP696426 Whirlpool Wheel
9WP694674 Whirlpool Cycling Thermostat
10696419 Whirlpool Housing
11279848 Whirlpool Bulkhead
12279771 Whirlpool Clip
13Box, Heater
14SCREW
15Heater, Thermostat
16WP488729 Whirlpool Refrigerator Door Screw
17THRMST-FIX
18279304 Whirlpool Block Terminal
19Support, Terminal Block Extension
20279320 Whirlpool Dryer Rear Terminal Block Kit
21WP308685 Whirlpool Microwave Screw
22Element, Heater
23W11736322 Whirlpool Cover Assembly
24WP693995 Whirlpool Screw
25279457 Whirlpool Dryer Heating Element Wide Spade Connection
26345325 Whirlpool Gusset
27WP358160 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30Screw, 11-16 x 7/8
31685207 Whirlpool Dryer Baffle
32WP3394508 Whirlpool Bearing Ring
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
39W10491983 Whirlpool Tine Tip
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
46Seal, Fan Scroll
50WP348197 Whirlpool Washer Assembly
51WP965173 Whirlpool Dishwasher Screw
