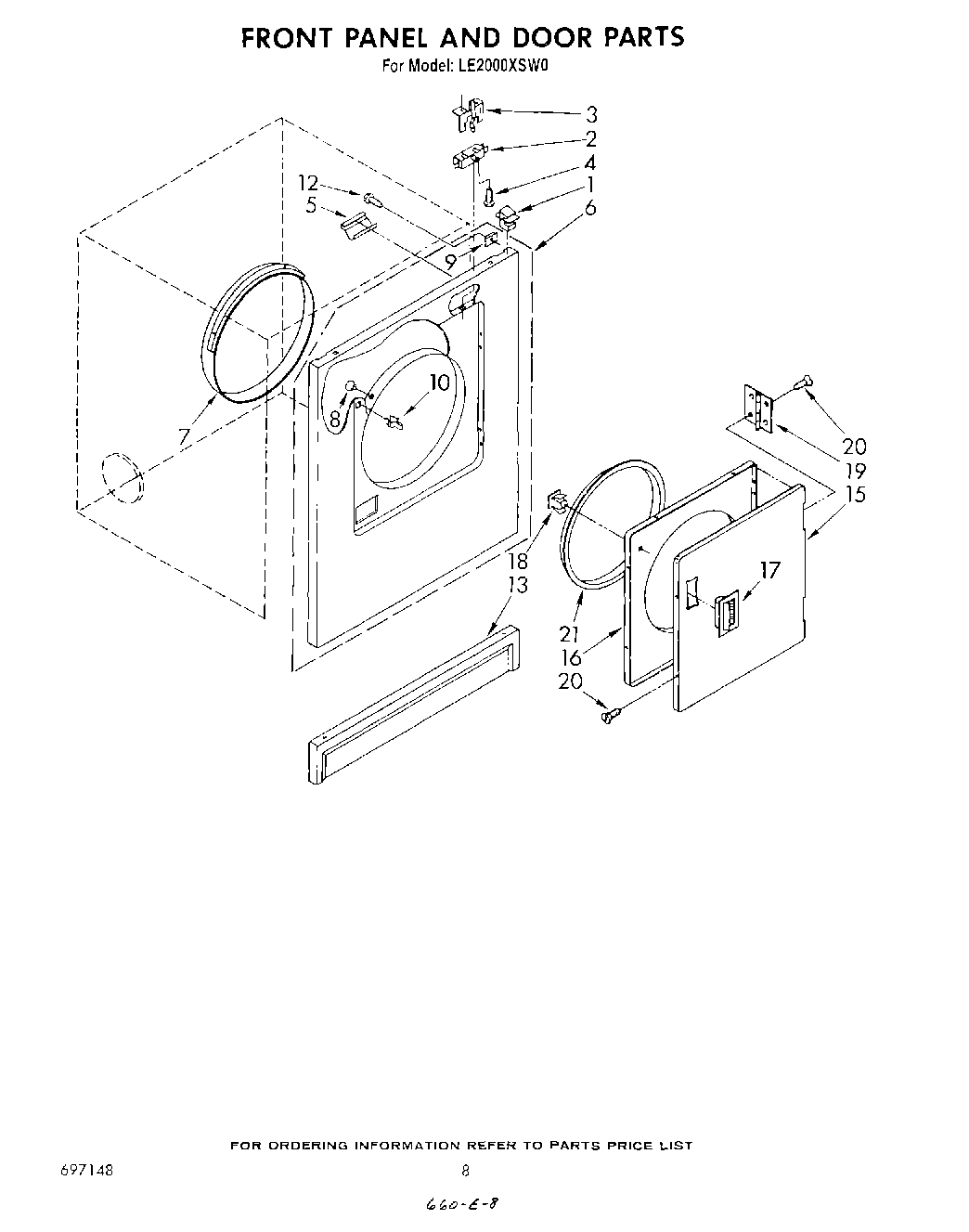

LE2000XSW0 05 – FRONT PANEL AND DOOR

Products

Position	Product
1	WP345670 Whirlpool Lock
2	W10820036 Whirlpool Door Switch Kit
3	WP691581 Whirlpool Actuator
4	WP98129 Whirlpool Screw
5	WPL 686768
6	Panel, Front (Also Includes Illus. 7) (Golden Wheat)
6	Panel, Front (Also Includes Illus. 7) (White)
6	Panel, Front (Also Includes Illus. 7) (Toast)
6	Panel, Front (Also Includes Illus. 7) (Platinum)
6	Panel, Front (Also Includes Illus. 7) (Almond)
7	279264 Whirlpool Bearing and Seal Kit
8	279220 Whirlpool Clip
9	WP98234 Whirlpool Nut
12	SCREW
13	Panel, Toe (White)
13	Panel, Toe (Almond)
13	Panel, Toe (Golden Wheat)
13	Panel, Toe (Toast)
13	Panel, Toe (Platinum)
15	Door, Front (Platinum)
15	Door, Front (Toast)
15	WP348205 Whirlpool Door
15	Door, Front (Almond)
15	WPL 689319
16	280077 Whirlpool Door
17	WP686711 Whirlpool Door Handle
17	Handle, Door (Almond)
17	Handle, Door (Platinum)
17	Handle, Door (Golden Harvest)
18	279570 Whirlpool Dryer Door Latch Kit
19	WP348023 Whirlpool Hinge
20	WP694091 Whirlpool Screw
21	W11613302 Whirlpool Door Seal
