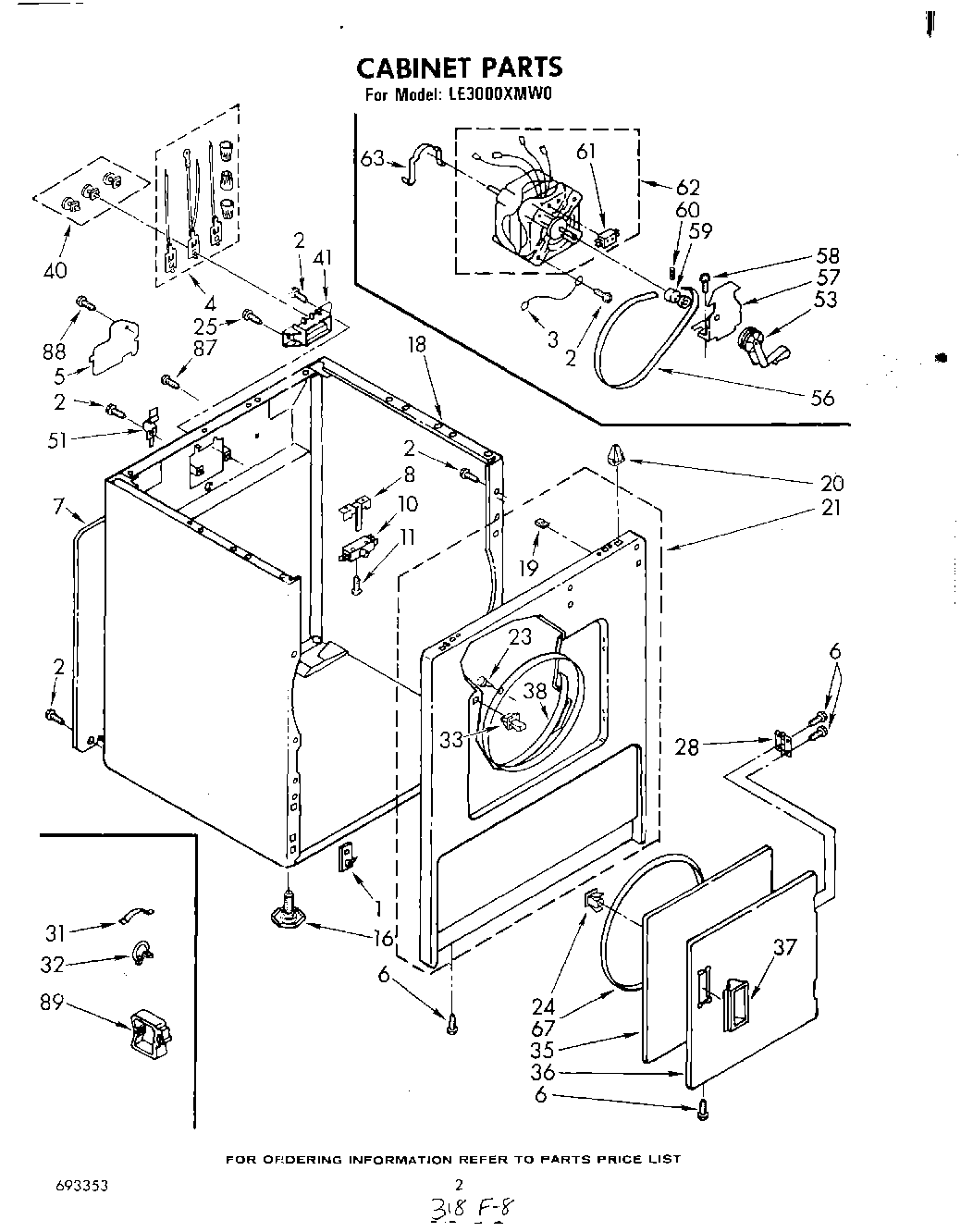

| 1 | W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip |
| 2 | SCREW |
| 3 | Wire, Ground (Motor) |
| 4 | 279318 Whirlpool Terminal |
| 5 | W11736322 Whirlpool Cover Assembly |
| 6 | Screw |
| 7 | Panel, Rear |
| 8 | WP691581 Whirlpool Actuator |
| 10 | W10820036 Whirlpool Door Switch Kit |
| 11 | WP98129 Whirlpool Screw |
| 16 | 49621 Whirlpool Leveling Feet |
| 18 | Cabinet (White) |
| 19 | WP98234 Whirlpool Nut |
| 20 | WP18776 Whirlpool Lock |
| 21 | Front Panel (White) |
| 23 | 279220 Whirlpool Clip |
| 25 | WP308685 Whirlpool Microwave Screw |
| 28 | WP348023 Whirlpool Hinge |
| 31 | 8528351 Whirlpool Clip |
| 32 | Clamp, Harness |
| 33 | 279570 Whirlpool Dryer Door Latch Kit |
| 35 | 280077 Whirlpool Door |
| 36 | WP348205 Whirlpool Door |
| 37 | WP686711 Whirlpool Door Handle |
| 38 | 279264 Whirlpool Bearing and Seal Kit |
| 40 | 279393 Whirlpool Terminal Block Screw and Nut Kit |
| 41 | 279320 Whirlpool Dryer Rear Terminal Block Kit |
| 51 | WP8066217 Whirlpool Hinge |
| 53 | WP691366 Whirlpool Dryer Idler Pulley Assembly |
| 56 | 341241 Whirlpool Dryer Drum Belt |
| 57 | WP348780 Whirlpool Base |
| 58 | 3400500 Whirlpool Screw |
| 59 | W11233559 Whirlpool Motor Pulley |
| 60 | SCREW, SET |
| 61 | 279827 Whirlpool Dryer Drive Motor |
| 63 | WP660658 Whirlpool Clamp |
| 67 | W11613302 Whirlpool Door Seal |
| 89 | Clip, Harness (Rear Bulkhead Area) |
