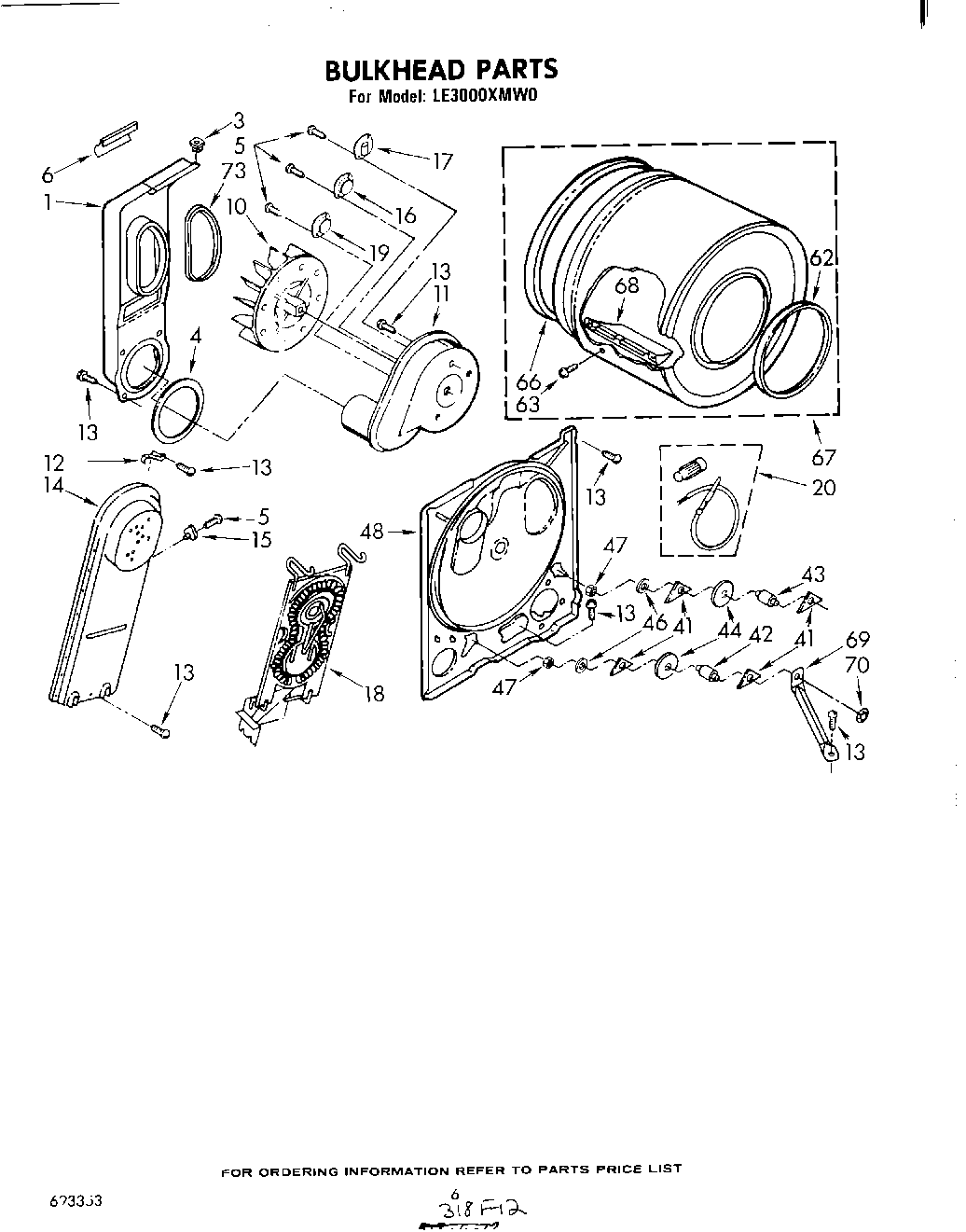

LE3000XMW0 04 – SECTION

Products

Position	Product
1	279505 Whirlpool Chute
3	98460 Whirlpool Nut
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	686770 Whirlpool Support Bracket
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower (Domestic)
12	279771 Whirlpool Clip
13	SCREW
14	Box, Heater
15	279052 Whirlpool Thermostat L250 3W
17	WP3390719 Whirlpool Dryer Thermal Fuse
18	WP4391960 Whirlpool Dryer Heating Element
19	WP694674 Whirlpool Cycling Thermostat
20	279457 Whirlpool Dryer Heating Element Wide Spade Connection
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
62	WP3394508 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
