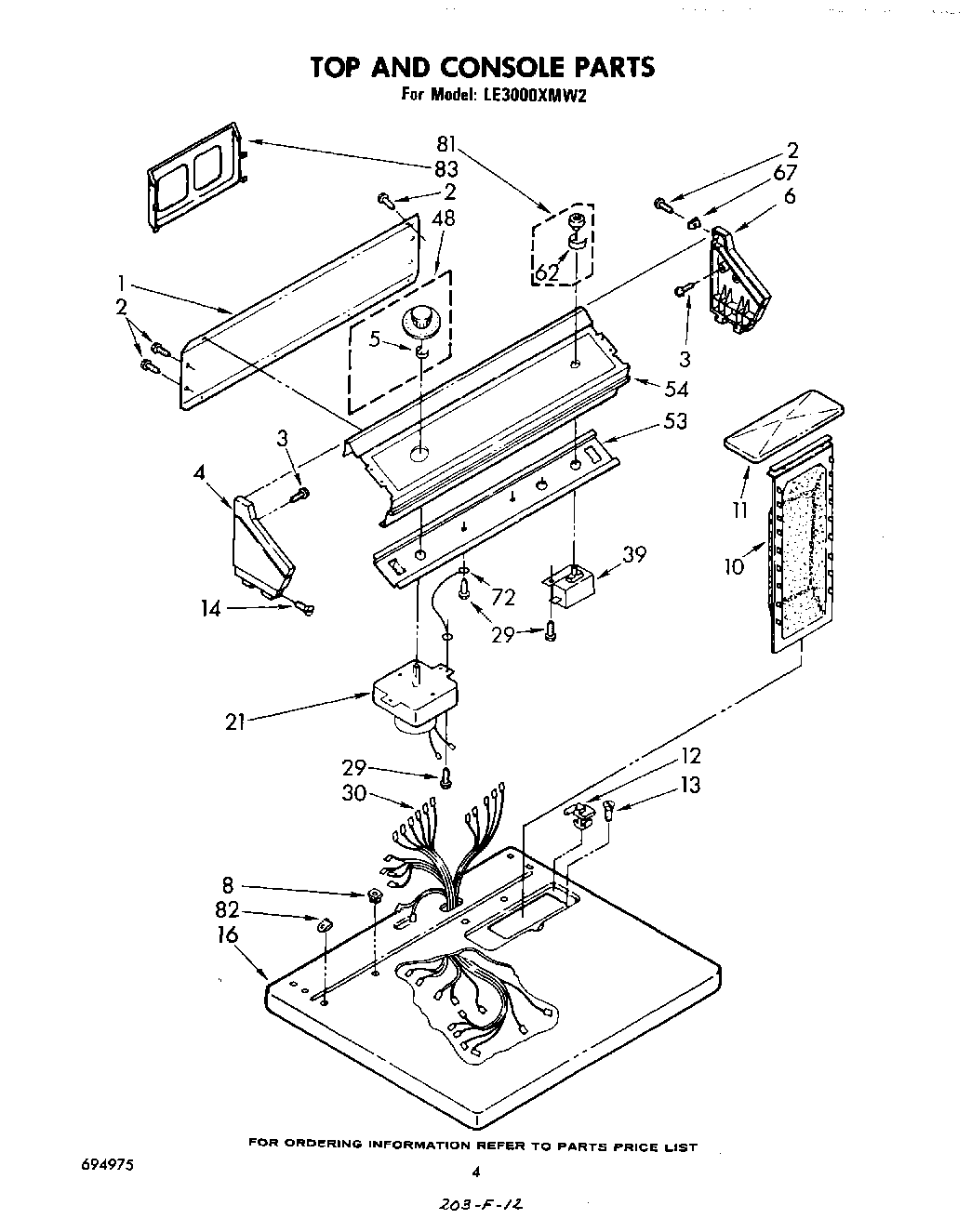

LE3000XMW2 03 – SECTION

Products

Position	Product
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End (L.H.) (White)
5	WP688805 Whirlpool Spring Clip
6	Cap , End (R.H.) (White)
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
21	Timer Assembly, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Harness
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
67	Nut, Push-In (4)
72	Wire, Ground
81	Pushbutton Assembly
82	Nut, Push-In (2)
83	Guide, Use & Care
83	Instructions, Installation
83	350930 Whirlpool White Spray Paint
83	WPL 693849
83	Rack, Literature
83	WPL 799351
83	Leveler (Thinner)
83	72017 Whirlpool Appliance Touch-Up Paint White
83	350938 Whirlpool Spray Gun
83	List, Parts
