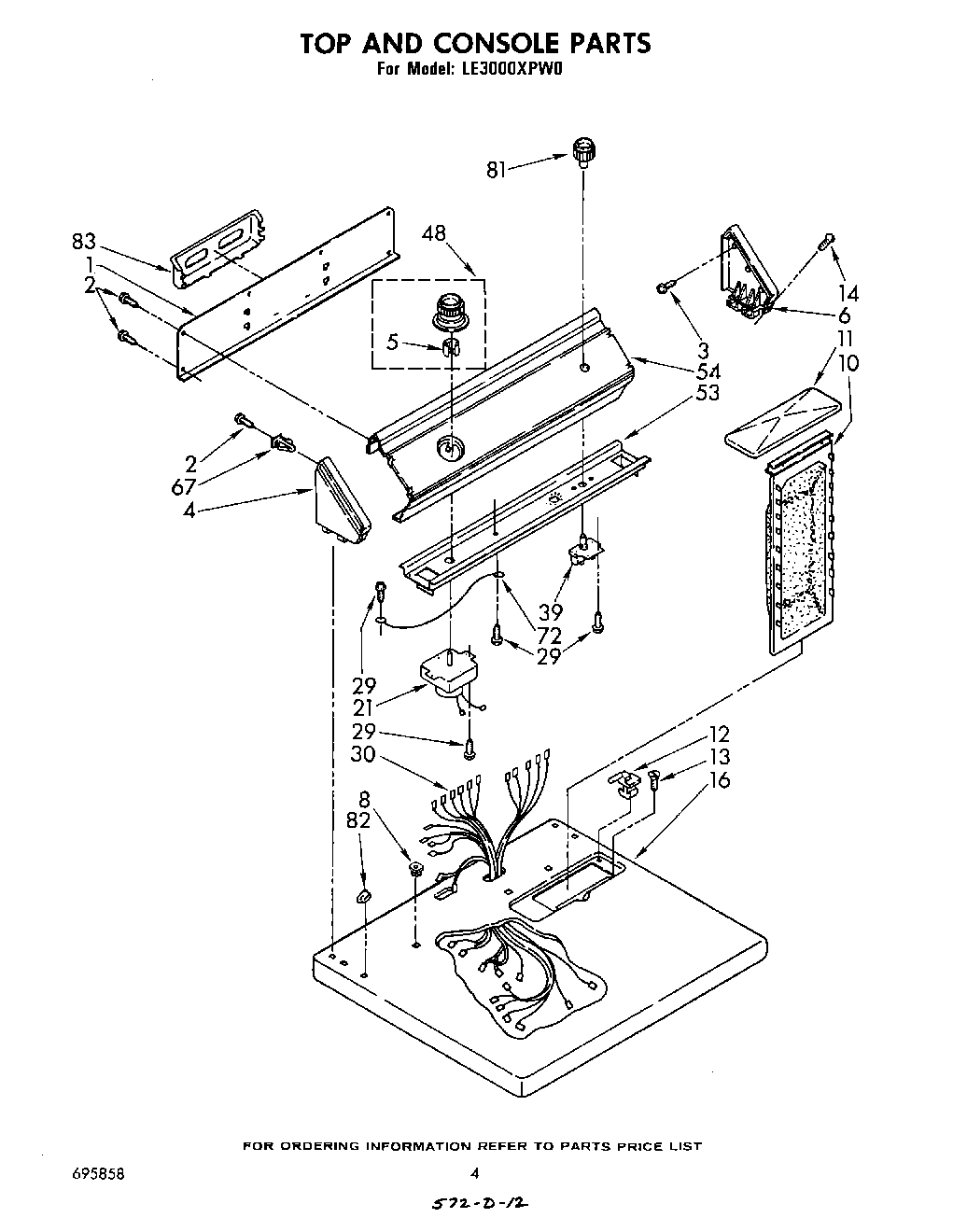

LE3000XPW0 03 – SECTION

Products

PositionProduct
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5WP688805 Whirlpool Spring Clip
6WPL 63796
8Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (White)
21Timer Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Harness
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
39(Alt.)
48Timer Knob & Dial
53Bracket, Control
54PANEL, CONTROL
67WP689559 Whirlpool Nut
72Wire, Ground
81Knob, Push-To-Start
82Nut, Push-In (2)
83Instructions, Installation
83Guide, Use & Care
83WPL 693849
83WPL 799351
83Rack, Literature
83350930 Whirlpool White Spray Paint
83Leveler (Thinner)
8372017 Whirlpool Appliance Touch-Up Paint White
83350938 Whirlpool Spray Gun
83List, Parts
