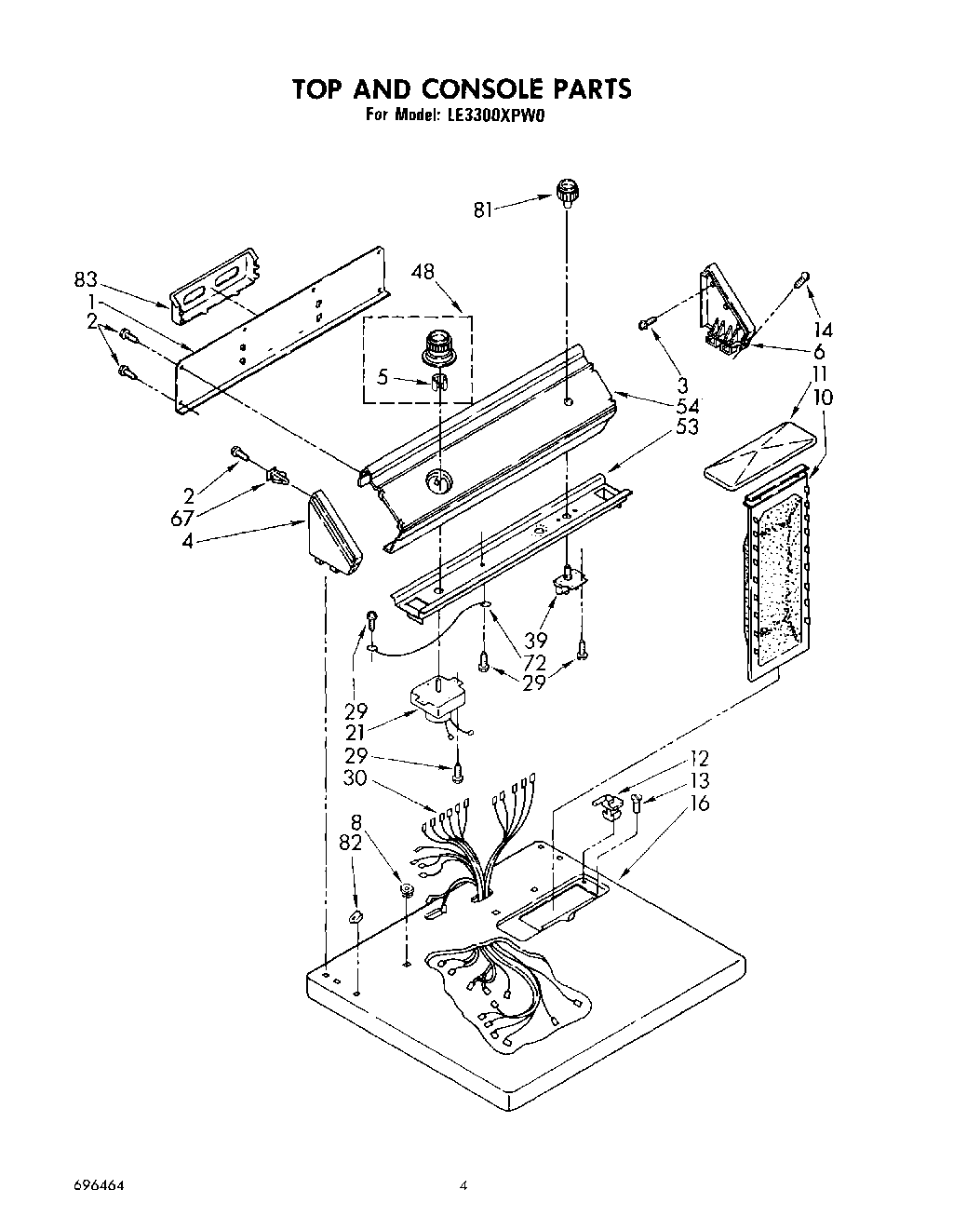

LE3300XPW0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Dryer
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT696234
	Dryer
	Guide, Use & Care
	Washer (Belt Drive)
	Leveler (Thinner)
	WPL LIT677967
	List, Parts
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WPL 63796
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
21	Timer Assembly, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Harness
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
81	Knob, Push-To-Start
82	Nut, Push-In (2)
83	Rack, Literature
