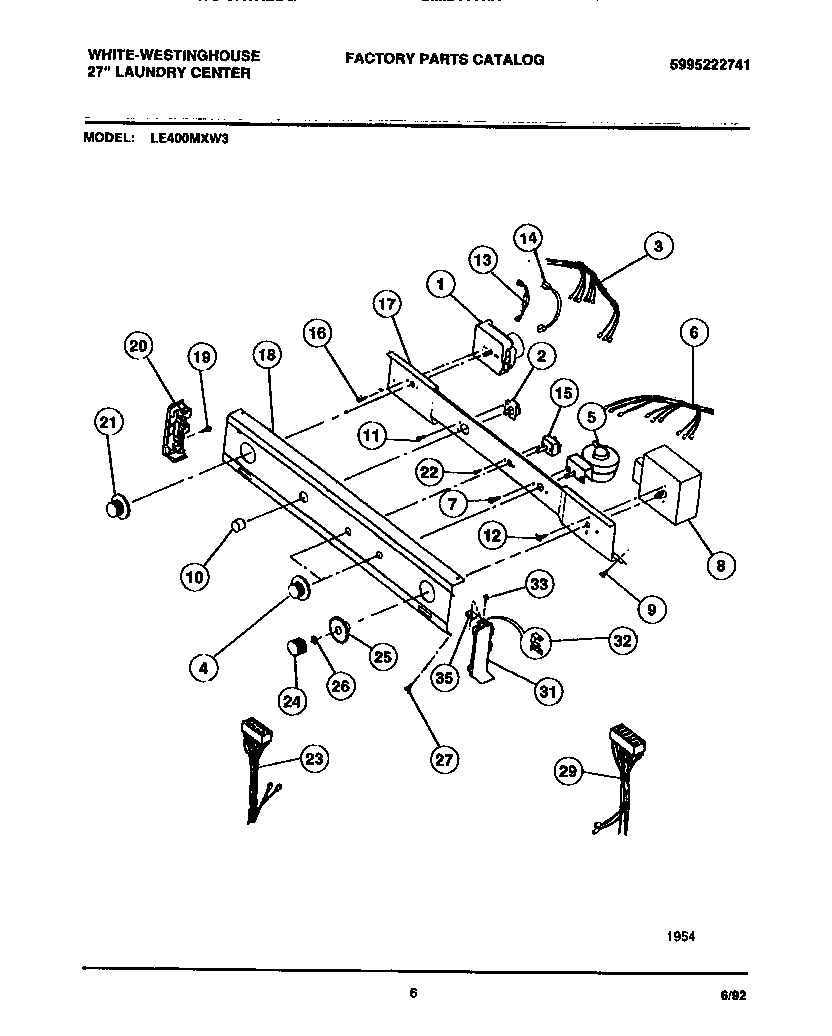

LE400MXW3 04 – CONTROL PANEL

Products

Position	Product
*68363	SPACER PAD-CONTROL PANEL BRACKET (2)
1	131062300 Frigidaire Timer
2	WCI 5303209890
3	WCI 5303209918
4	131858004 Frigidaire Control Knob, White
5	WCI 5303937062
6	WCI 5303209895
8	WCI 5303271776
9	131302800 Frigidaire Drum Vane Screw
10	WCI 3205632
11	WCI 08001544
12	SCREW (2)
13	RESISTOR, 3.0K
14	RESISTOR-POWER, 4.4K
15	SWITCH-WATER TEMP
16	218359202 Frigidaire Refrigerator Screw
17	WCI 3205639
18	WCI 5303270949
19	131168200 Frigidaire Dryer Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 5303209919
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 3205645
31	WCI 5303210650
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
