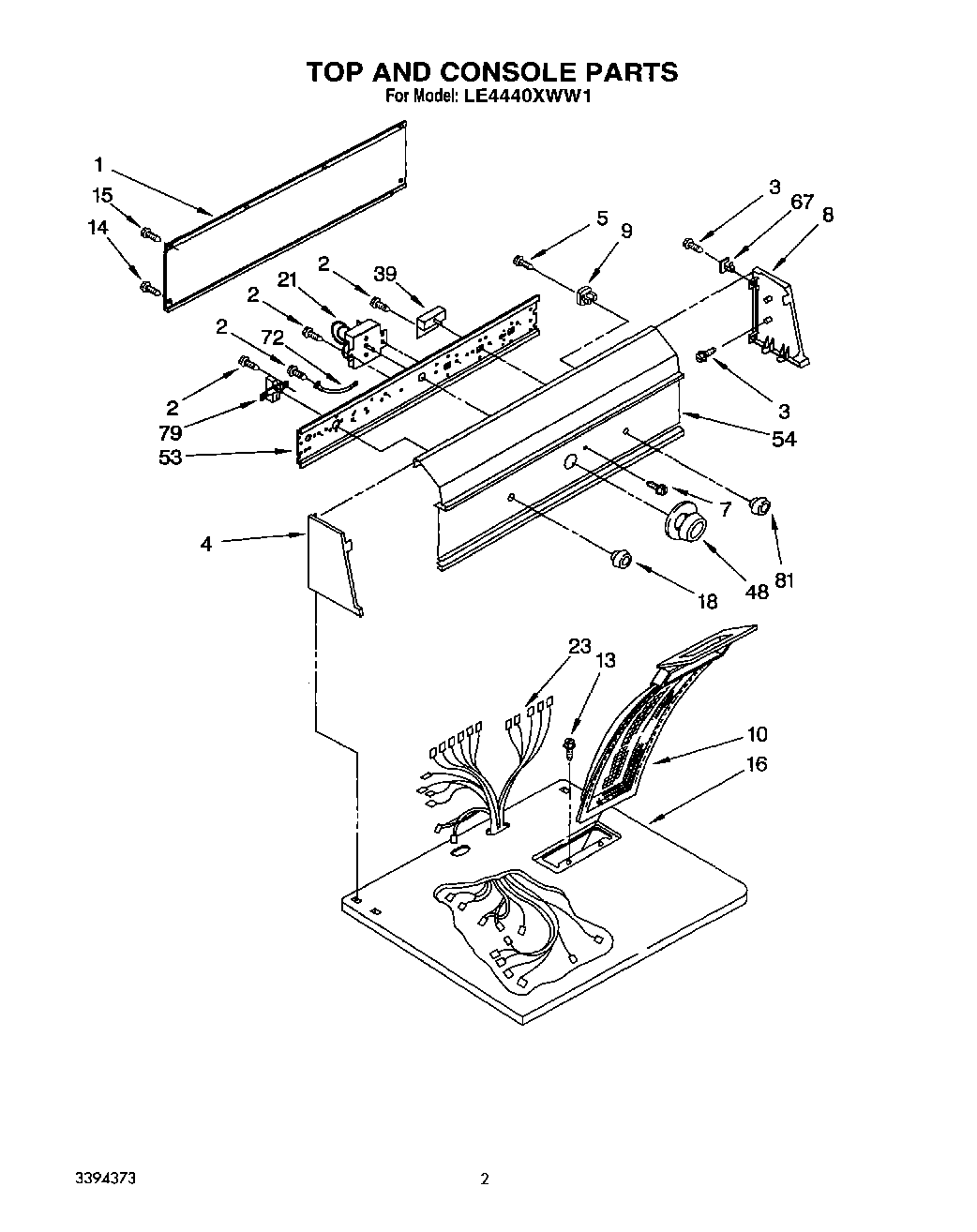

LE4440XWW1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Use & Care Guide
	Guide, Dryer
	Washer (Belt Drive)
	WPL LIT677967
	List, Service Parts
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	Dryer
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	WP355515 Whirlpool Screw
7	WP694091 Whirlpool Screw
8	Cap, End (R.H.)
9	98460 Whirlpool Nut
10	W10874409 Whirlpool Lint Screen Filter
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP693995 Whirlpool Screw
16	Top (White)
18	Knob, Temperature Selector
21	Timer Assembly, 60 Hz.
31	Harness, Wiring
39	Switch, Push-To-Start
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push-To-Start
