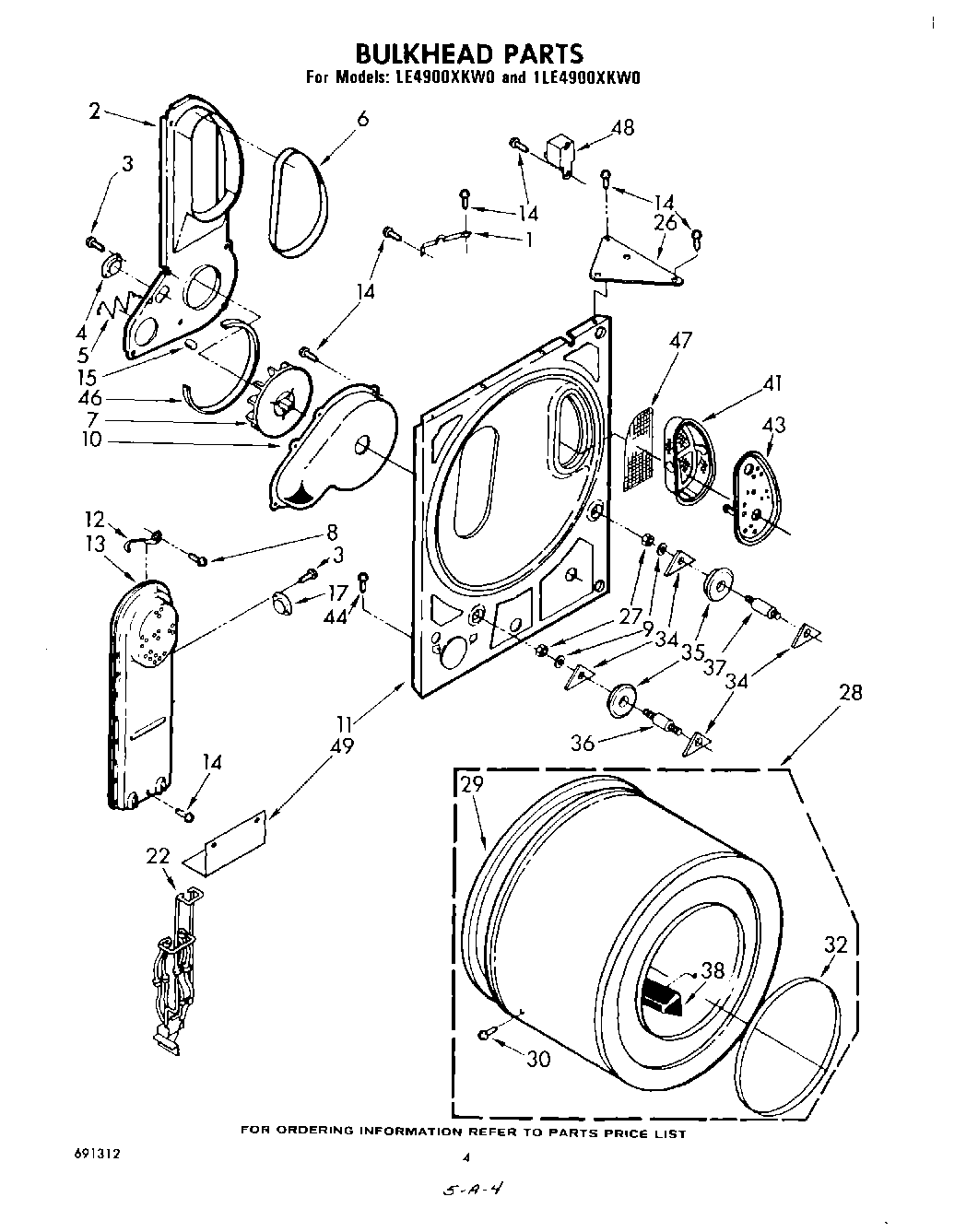

LE4900XKW0 03 – SECTION

Products

Position	Product
	Golden Harvest (Uncut)
	Enamel, New Avocado (1 Qt. Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	345396 Whirlpool Clip
2	Air Duct Assembly
3	WP90767 Whirlpool Screw
4	WP694674 Whirlpool Cycling Thermostat
5	345965 Whirlpool Guard
6	SEAL
7	Wheel, Blower
9	WP348197 Whirlpool Washer Assembly
10	Scroll, Fan
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	Box, Heater
14	SCREW
15	W10491983 Whirlpool Tine Tip
17	(Alt.)
17	(Alt.)
22	279506 Whirlpool Element
26	345325 Whirlpool Gusset
27	WP358160 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	Screw, 11-16 x 7/8
32	WP3394508 Whirlpool Bearing Ring
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
38	685207 Whirlpool Dryer Baffle
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
44	WP3390631 Whirlpool Screw
46	Seal
47	Screen, Back-Up
48	Buzzer, Mini
49	350956 Whirlpool Spray Assembly
49	350938 Whirlpool Spray Gun
49	72017 Whirlpool Appliance Touch-Up Paint White
49	Reflector, Heat
49	Instructions, Installation
49	Use & Care Guide
49	paint, spray 13 oz. (coffee)
49	WPL 688898
49	WP72107 Whirlpool Touchup
49	Paint, Spray 13 Oz. (Avocado)
49	Paint, Touch-Up 1/2 Oz. (Coffee)
49	72109 Whirlpool Dacor Avocado Touch-Up Paint
49	WPL 799351
49	350930 Whirlpool White Spray Paint
49	Golden Harvest
49	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
49	Leveler (Thinner)
49	List, Service Parts
