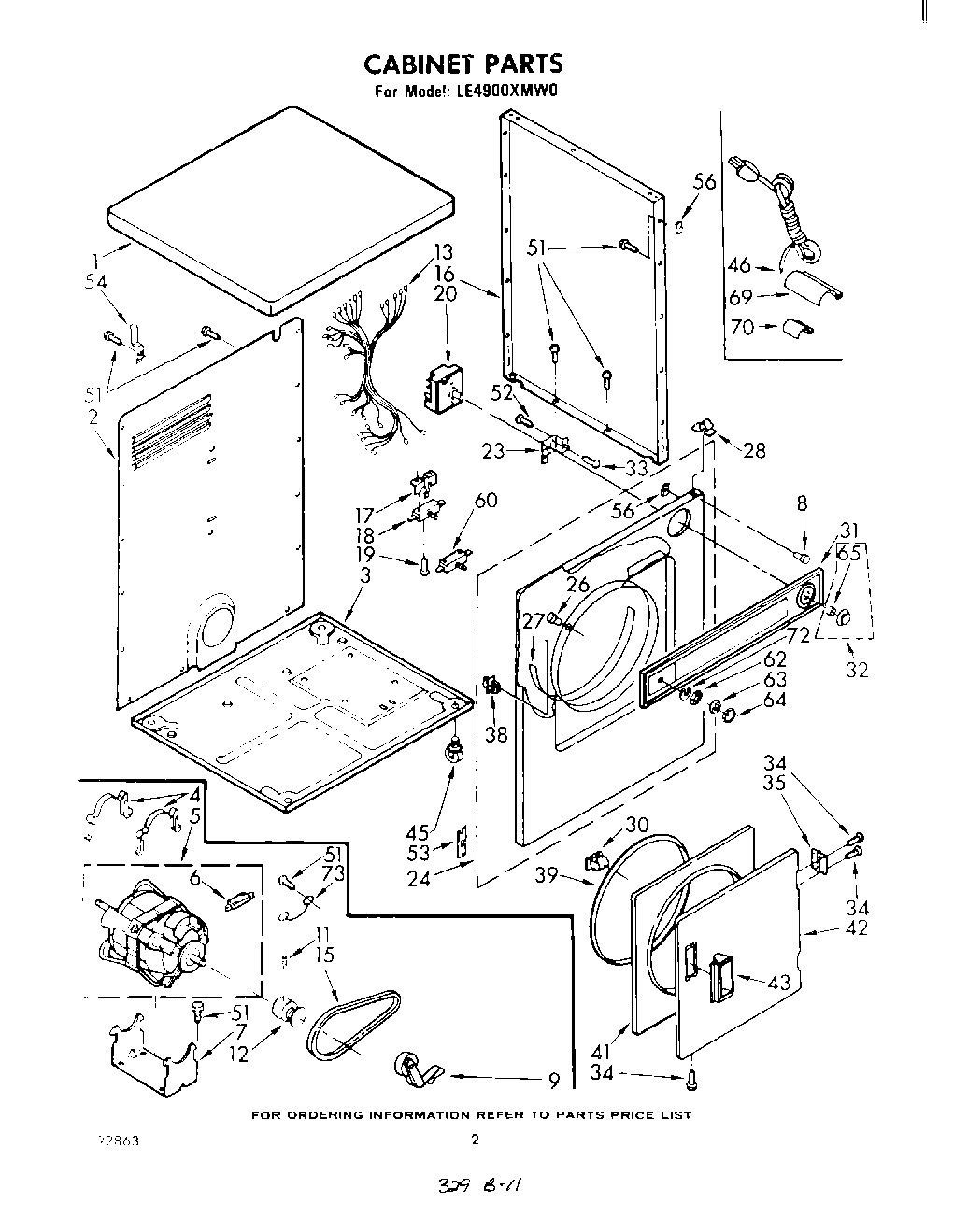

LE4900XMW0 02 – SECTION
Written by
in
LE4900XMW0 02 – SECTION
Products
Position
Product
1
Top (Coffee)
1
Top (Golden Harvest)
1
Top (Almond)
1
345703 Whirlpool White Maintop
2
Panel, Rear (Coffee)
2
280048 Whirlpool Rear Panel
2
Panel, Rear (New Gold)
2
Panel, Rear (Almond)
3
WP348726 Whirlpool Base Assembly
4
WP660658 Whirlpool Clamp
6
279827 Whirlpool Dryer Drive Motor
7
696541 Whirlpool Base
8
Rivet
9
WP691366 Whirlpool Dryer Idler Pulley Assembly
11
SCREW, SET
12
WPL 348946
13
Harness, Wiring
15
3394652 Whirlpool Drum Belt
16
Panel, Side (Coffee)
16
Panel, Side (Golden Harvest)
16
Panel, Side (2) (Almond)
16
Panel, Side (2) (White)
17
WP691581 Whirlpool Actuator
18
W10820036 Whirlpool Door Switch Kit
19
WP98129 Whirlpool Screw
20
Timer, 60 Hz.
23
348171 Whirlpool Bracket
24
xFront Panel Assembly (Golden Harvest)
24
xFront Panel Assembly (Coffee)
24
xFront Panel Assembly (White)
24
xFront Panel Assembly (Almond)
26
279220 Whirlpool Clip
27
279264 Whirlpool Bearing and Seal Kit
28
WP345670 Whirlpool Lock
31
Panel, Control
32
Timer Knob & Skirt Assembly
33
303776 Whirlpool Dishwasher Screw
34
WP694091 Whirlpool Screw
35
WP348023 Whirlpool Hinge
38
279570 Whirlpool Dryer Door Latch Kit
39
W11613302 Whirlpool Door Seal
41
280077 Whirlpool Door
42
WPL 689315
42
Door, Front (Almond)
42
WP348205 Whirlpool Door
42
WPL 689319
43
Handle, Door (Almond)
43
WPL 689307
43
Handle, Door (Golden Harvest)
43
WP686711 Whirlpool Door Handle
45
279127 Whirlpool Caster
46
WPL 349658
51
SCREW
52
WP90767 Whirlpool Screw
53
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
54
345790 Whirlpool Bracket
56
WP98234 Whirlpool Nut
60
Switch, Push-To-Start
62
Nut, Hex
63
Ring, Trim
64
Nut, Knurled
65
WP688805 Whirlpool Spring Clip
69
Protector Support
70
WPL 686767
72
Lockwasher
73
Wire, Ground
←
