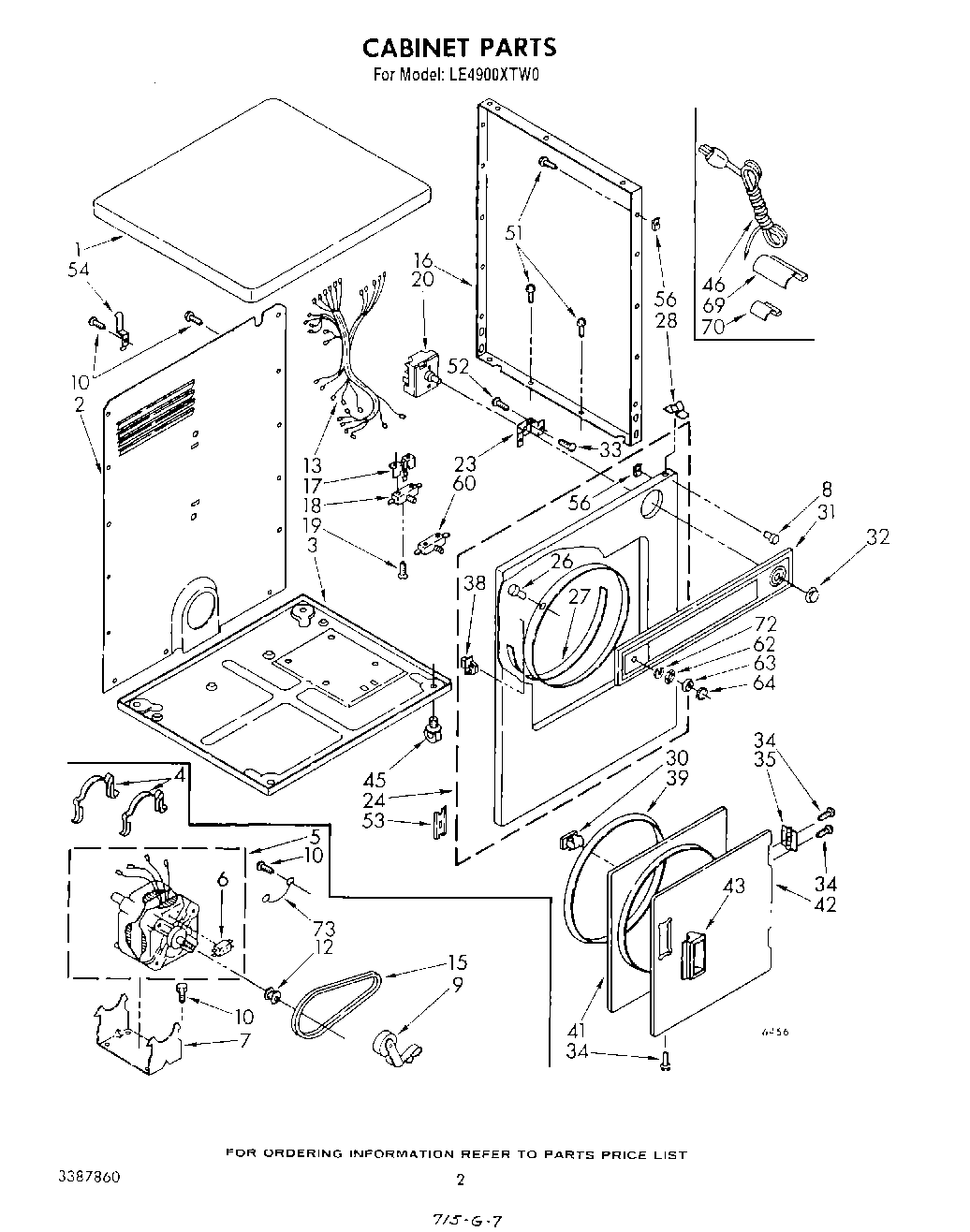

LE4900XTG0 02 – SECTION

Products

PositionProduct
1345703 Whirlpool White Maintop
1Top (Almond)
1Top (Golden Harvest)
1Top (Toast)
1Top (Platinum)
2Panel, Rear (Platinum)
2Panel, Rear (New Gold)
2Panel, Rear (Almond)
2Panel, Rear (Toast)
2280048 Whirlpool Rear Panel
3WP348726 Whirlpool Base Assembly
4WP660658 Whirlpool Clamp
6279827 Whirlpool Dryer Drive Motor
7696541 Whirlpool Base
8Rivet, Plastic (4)
9WP691366 Whirlpool Dryer Idler Pulley Assembly
10WP3390631 Whirlpool Screw
12W10837625 Whirlpool Dryer Motor Pulley
13Harness, Wiring
153394652 Whirlpool Drum Belt
16Panel, Side (2) (Toast)
16Panel, Side (Golden Harvest)
16Panel, Side (2) (Platinum)
16Panel, Side (2) (White)
16Panel, Side (2) (Almond)
17WP691581 Whirlpool Actuator
18W10820036 Whirlpool Door Switch Kit
19WP98129 Whirlpool Screw
20Timer, 60 Hz.
23348171 Whirlpool Bracket
24xFront Panel Assembly (Golden Harvest)
24xFront Panel Assembly (Almond)
24xFront Panel Assembly (White)
24xFront Panel Assembly (Platinum)
24xFront Panel Assembly (Toast)
26279220 Whirlpool Clip
27279264 Whirlpool Bearing and Seal Kit
28WP345670 Whirlpool Lock
30WP3389441 Whirlpool Door Catch
31Panel, Control
32Timer Knob & Skirt Assembly
33303776 Whirlpool Dishwasher Screw
34WP694091 Whirlpool Screw
35WP348023 Whirlpool Hinge
38279570 Whirlpool Dryer Door Latch Kit
39W11613302 Whirlpool Door Seal
41280077 Whirlpool Door
42Door, Front (Almond)
42WP348205 Whirlpool Door
42WPL 689319
42Door, Front (Platinum)
42Door, Front (Toast)
43Handle, Door (Platinum)
43Handle, Door (Almond)
43WP686711 Whirlpool Door Handle
43Handle, Door (Golden Harvest)
45279127 Whirlpool Caster
46WPL 349658
51WP489069 Whirlpool Compactor Screw
52WP90767 Whirlpool Screw
53W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
54345790 Whirlpool Bracket
56WP98234 Whirlpool Nut
60Switch, Push-To-Start
62Nut, Hex
63Ring, Trim
64Nut, Knurled
69Protector Support
70WPL 686767
72Lockwasher
73Wire, Ground
