LE4900XTG1 03 – SECTION

LE4900XTG1 03 – SECTION

Written by

in

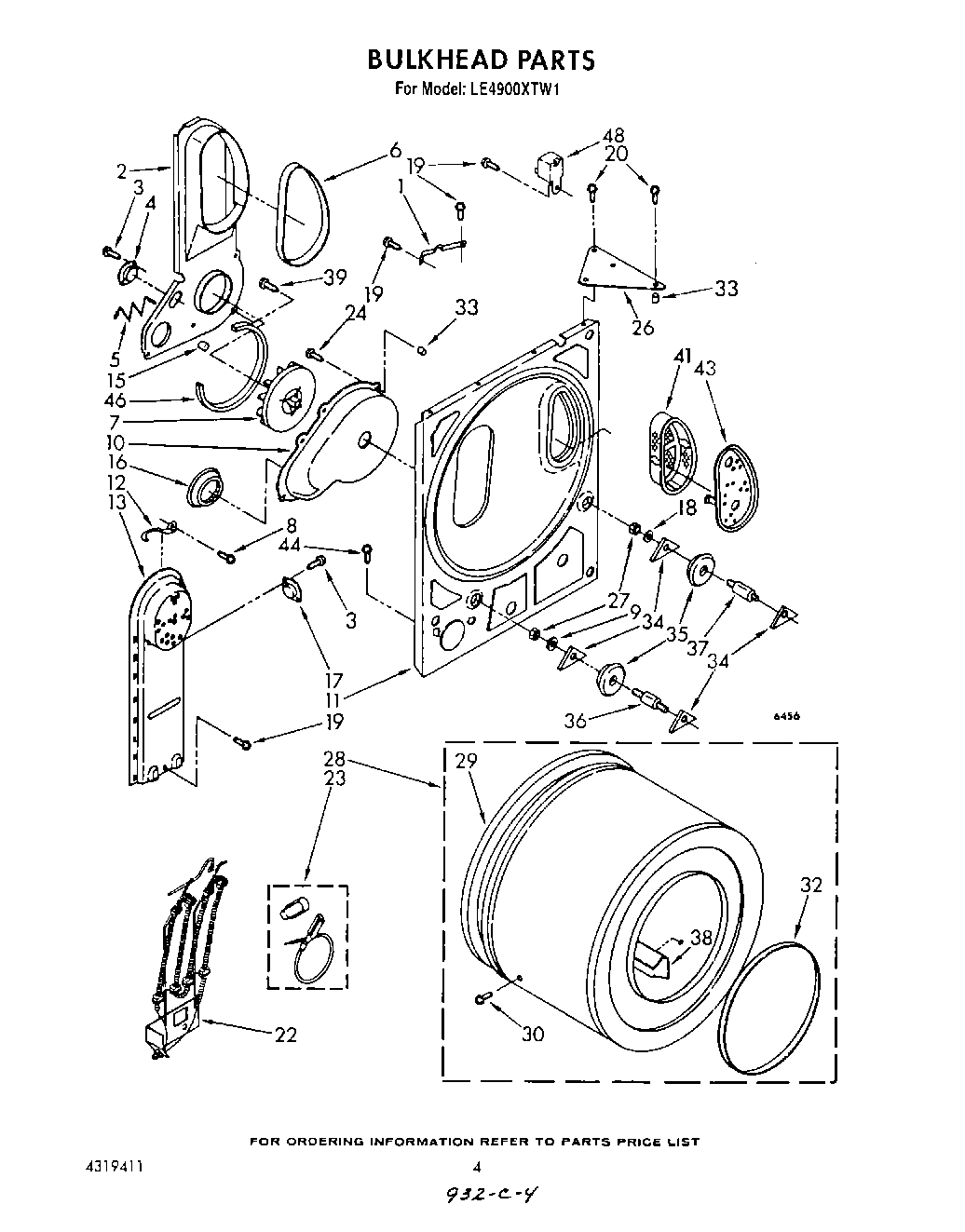

LE4900XTG1 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT4319411
Guide, Dryer
Golden Harvest (Uncut)
Golden Harvest
Use & Care Guide
Label, Operating Instruction
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT3390354
350956 Whirlpool Spray Assembly
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1345396 Whirlpool Clip
2Air Duct Assembly
3WP90767 Whirlpool Screw
4WP694674 Whirlpool Cycling Thermostat
5345965 Whirlpool Guard
6SEAL
7WP696426 Whirlpool Wheel
9Washer, Support
10696419 Whirlpool Housing
11279848 Whirlpool Bulkhead
12279771 Whirlpool Clip
13Box, Heater
16W11233063 Whirlpool Shield Assembly
17(Alt.)
17(Alt.)
17Thermostat, 180~F (82~C)
18Washer, Support
19SCREW
22279506 Whirlpool Element
23279457 Whirlpool Dryer Heating Element Wide Spade Connection
24WP308685 Whirlpool Microwave Screw
26345325 Whirlpool Gusset
27WP358160 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30Screw, 11-16 x 7/8
32WP3394508 Whirlpool Bearing Ring
33W10491983 Whirlpool Tine Tip
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
38685207 Whirlpool Dryer Baffle
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
44WP3390631 Whirlpool Screw
46Seal
48WP694419 Whirlpool Buzzer Adjuster
