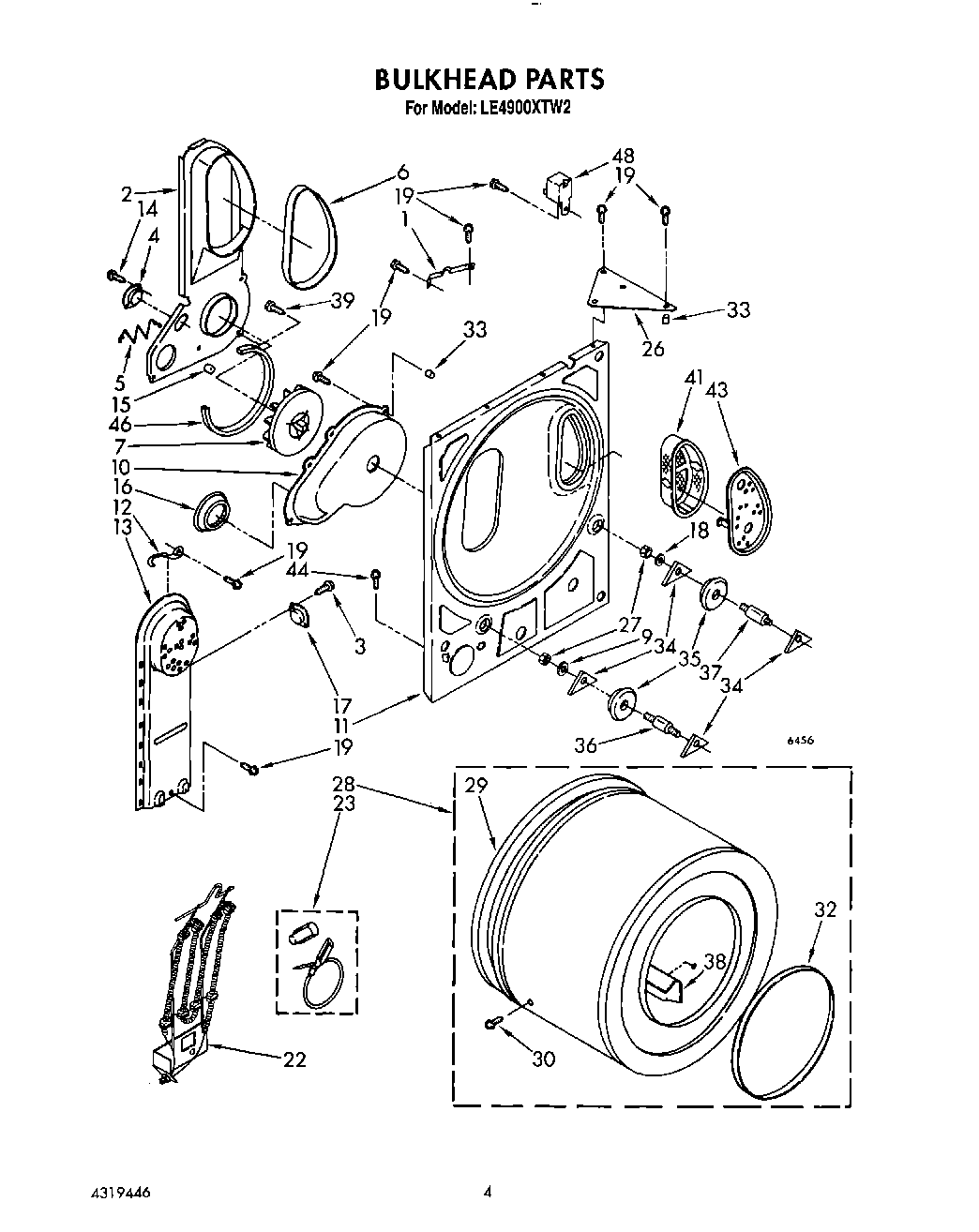

LE4900XTN2 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Dryer
	Use & Care Guide
	Label, Operating Instruction
	Golden Harvest (Uncut)
	Golden Harvest
	WPL LIT3390354
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	List, Service Parts
	72017 Whirlpool Appliance Touch-Up Paint White
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	345396 Whirlpool Clip
2	Air Duct Assembly
3	WP90767 Whirlpool Screw
4	WP694674 Whirlpool Cycling Thermostat
5	345965 Whirlpool Guard
6	SEAL
7	WP696426 Whirlpool Wheel
9	WP3388703 Whirlpool Washer
10	696419 Whirlpool Housing
11	279848 Whirlpool Bulkhead
12	279771 Whirlpool Clip
13	Box, Heater
14	WP965173 Whirlpool Dishwasher Screw
16	W11233063 Whirlpool Shield Assembly
17	(Alt.)
17	Thermostat, 180~F (82~C)
17	(Alt.)
18	Washer, Support
19	SCREW
22	279506 Whirlpool Element
23	279457 Whirlpool Dryer Heating Element Wide Spade Connection
26	Gusset (2)
27	WP358160 Whirlpool Nut
28	3391834 Whirlpool Drum
29	SEAL
30	Screw, 11-16 x 7/8
32	WP3394508 Whirlpool Bearing Ring
33	W10491983 Whirlpool Tine Tip
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	349241T Whirlpool Dryer Drum Support Roller Kit
36	SHAFT SUPPORT ROLLER DRYER
37	SHAFT SUPPORT ROLLER DRYER
38	685207 Whirlpool Dryer Baffle
41	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
44	WP3390631 Whirlpool Screw
46	Seal, Air Duct
48	WP694419 Whirlpool Buzzer Adjuster
