LE4930XKW0 03 – SECTION

LE4930XKW0 03 – SECTION

Written by

in

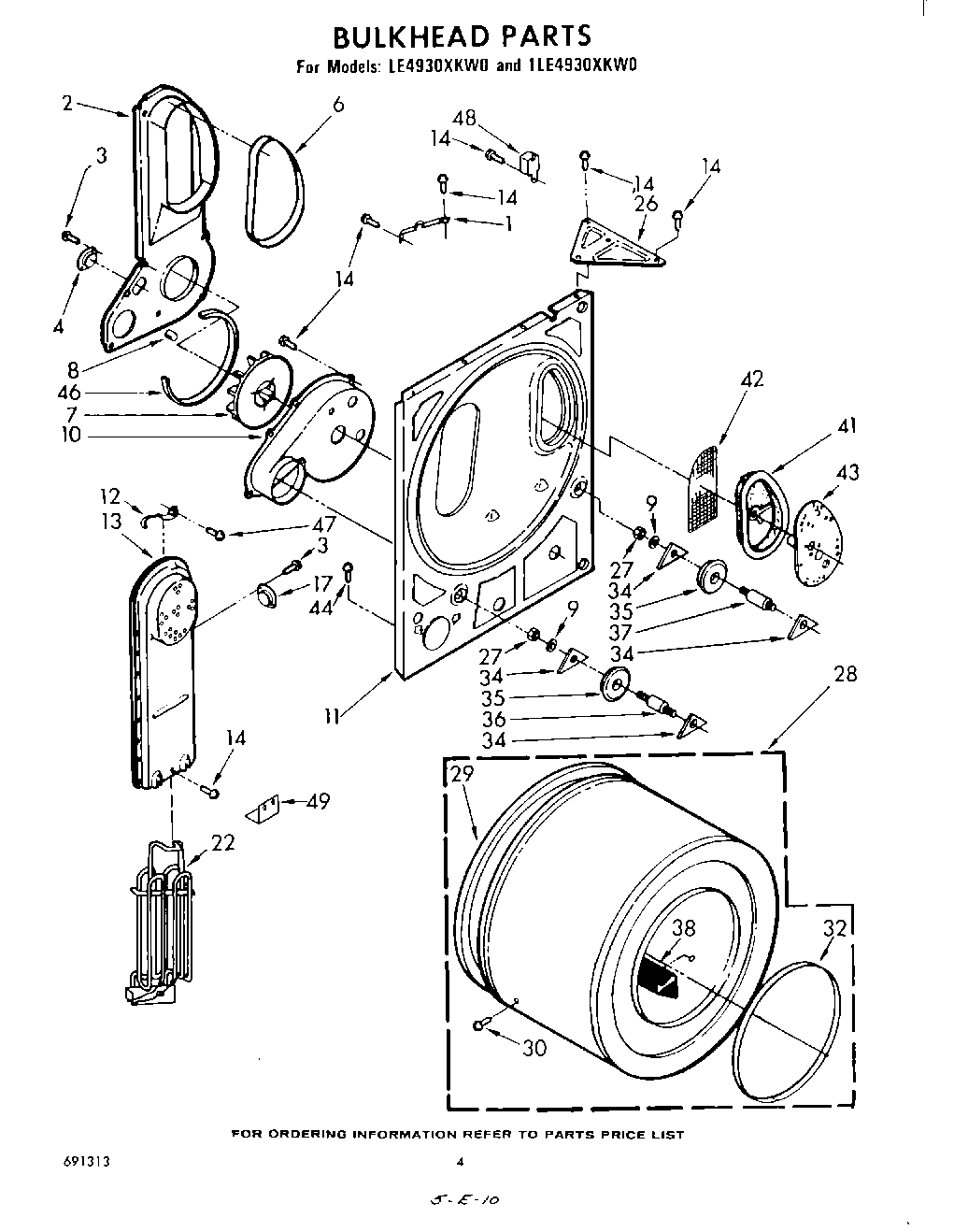

LE4930XKW0 03 – SECTION

Products

PositionProduct
1345396 Whirlpool Clip
2Air Duct Assembly
3WP90767 Whirlpool Screw
4WP694674 Whirlpool Cycling Thermostat
6SEAL
7Wheel, Blower
8W10491983 Whirlpool Tine Tip
9WP348197 Whirlpool Washer Assembly
10Scroll, Fan
11279848 Whirlpool Bulkhead
12279771 Whirlpool Clip
13Box, Heater
14SCREW
17279080 Whirlpool Thermostat
22Element, Heater (Use 279139 Jumper Wire For Heater Element Harness Terminal Replacement)
26345325 Whirlpool Gusset
27WP358160 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30Screw, 11-16 x 7/8
32WP3394508 Whirlpool Bearing Ring
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
38685207 Whirlpool Dryer Baffle
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
42Screen, Back-Up
44WP3390631 Whirlpool Screw
46Seal
48Buzzer, Mini
49Leveler (Thinner)
49Use & Care Guide
49Reflector, Heat
49List, Service Parts
49350938 Whirlpool Spray Gun
49WPL 688898
49350930 Whirlpool White Spray Paint
49350956 Whirlpool Spray Assembly
4972017 Whirlpool Appliance Touch-Up Paint White
49Golden Harvest
49Golden Harvest (Uncut)
4972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
49Almond (Uncut)
4972109 Whirlpool Dacor Avocado Touch-Up Paint
49Paint, Spray 13 Oz. (Avocado)
49WP72107 Whirlpool Touchup
49WPL 799351
49799344 Whirlpool Refrigerator Paint
49Enamel, New Avocado (1 Qt. Uncut)
49Instructions, Installation
