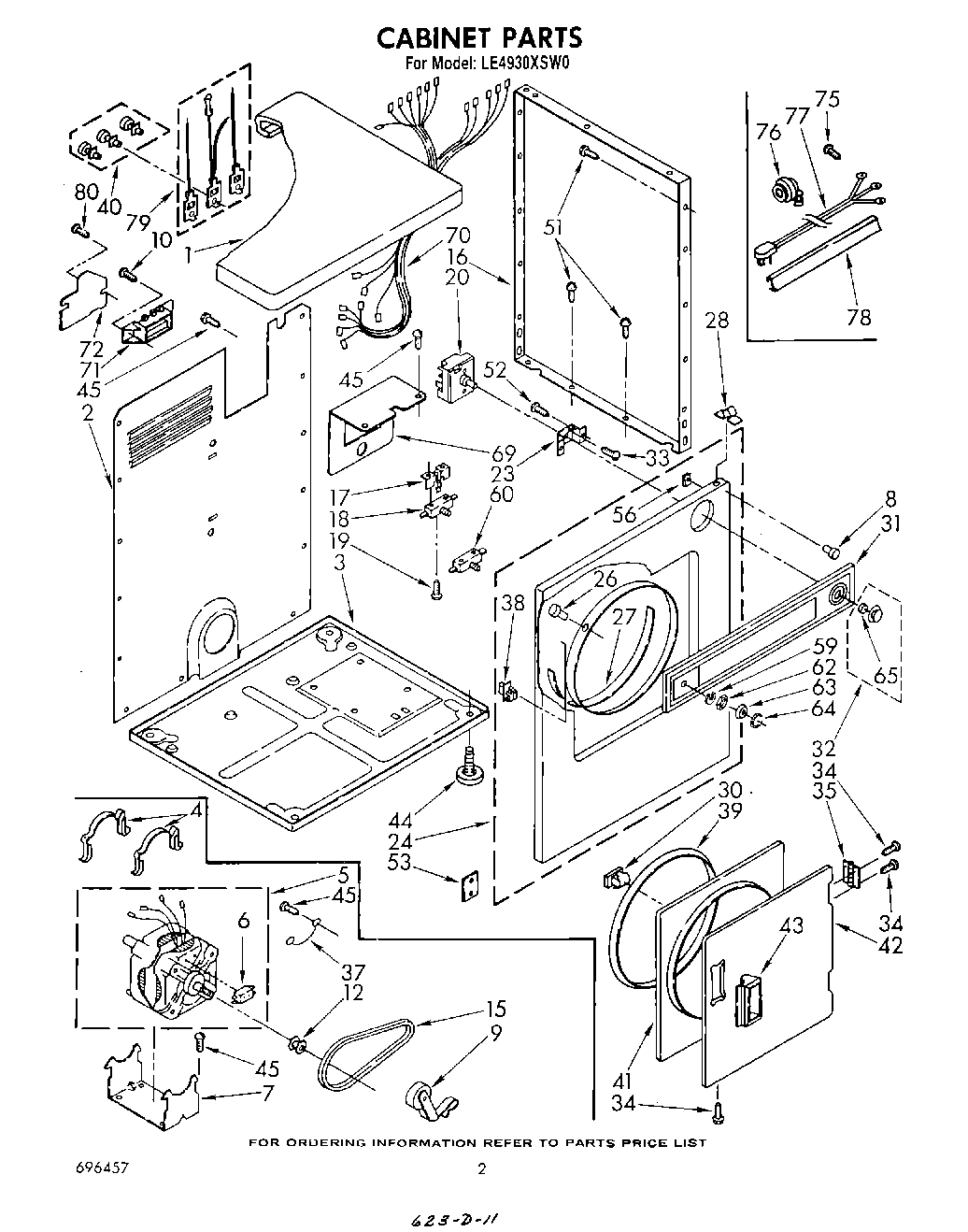

LE4930XSW0 02 – SECTION

LE4930XSW0 02 – SECTION

Written by

in

LE4930XSW0 02 – SECTION

Products

PositionProduct
1345703 Whirlpool White Maintop
1Top (Almond)
1Top (Golden Harvest)
1Top (Platinum)
1Top (Toast)
2280050 Whirlpool Rear Panel
3WP348726 Whirlpool Base Assembly
4WP660658 Whirlpool Clamp
6279827 Whirlpool Dryer Drive Motor
7696541 Whirlpool Base
8Rivet, Plastic (4)
9WP691366 Whirlpool Dryer Idler Pulley Assembly
10WP308685 Whirlpool Microwave Screw
12W10837625 Whirlpool Dryer Motor Pulley
153394652 Whirlpool Drum Belt
16Panel, Side (2) (Almond)
16Panel, Side (2) (White)
16Panel, Side (2) (Platinum)
16Panel, Side (2) (Toast)
16Panel, Side (Golden Harvest)
17WP691581 Whirlpool Actuator
18W10820036 Whirlpool Door Switch Kit
19WP98129 Whirlpool Screw
20Timer, 60 Hz.
23348171 Whirlpool Bracket
24xFront Panel Assembly (Platinum)
24xFront Panel Assembly (White)
24xFront Panel Assembly (Golden Harvest)
24xFront Panel Assembly (Toast)
24xFront Panel Assembly (Almond)
26279220 Whirlpool Clip
27279264 Whirlpool Bearing and Seal Kit
28WP345670 Whirlpool Lock
30279570 Whirlpool Dryer Door Latch Kit
31Panel, Control
32Timer Knob & Skirt Assembly
33303776 Whirlpool Dishwasher Screw
34WP694091 Whirlpool Screw
35WP348023 Whirlpool Hinge
37Wire, Ground
39W11613302 Whirlpool Door Seal
40279393 Whirlpool Terminal Block Screw and Nut Kit
41280077 Whirlpool Door
42Door, Front (Almond)
42Door, Front (Platinum)
42WPL 689319
42Door, Front (Toast)
42WP348205 Whirlpool Door
43Handle, Door (Platinum)
43Handle, Door (Almond)
43Handle, Door (Golden Harvest)
43WP686711 Whirlpool Door Handle
44WP233550 Whirlpool Leveling Feet
45SCREW
51WP489069 Whirlpool Compactor Screw
52WP90767 Whirlpool Screw
53W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
56WP98234 Whirlpool Nut
59Lockwasher
60Switch, Push-To-Start
62Nut, Hex
63Ring, Trim
64Nut, Knurled
65WP688805 Whirlpool Spring Clip
69279304 Whirlpool Block Terminal
70WPL 697291
71279320 Whirlpool Dryer Rear Terminal Block Kit
72W11736322 Whirlpool Cover Assembly
76W11712577 Whirlpool Clip
77PT220L Whirlpool Dryer Power Cord
78WPL 686767
78Protector Support
79279318 Whirlpool Terminal
80WP693995 Whirlpool Screw
