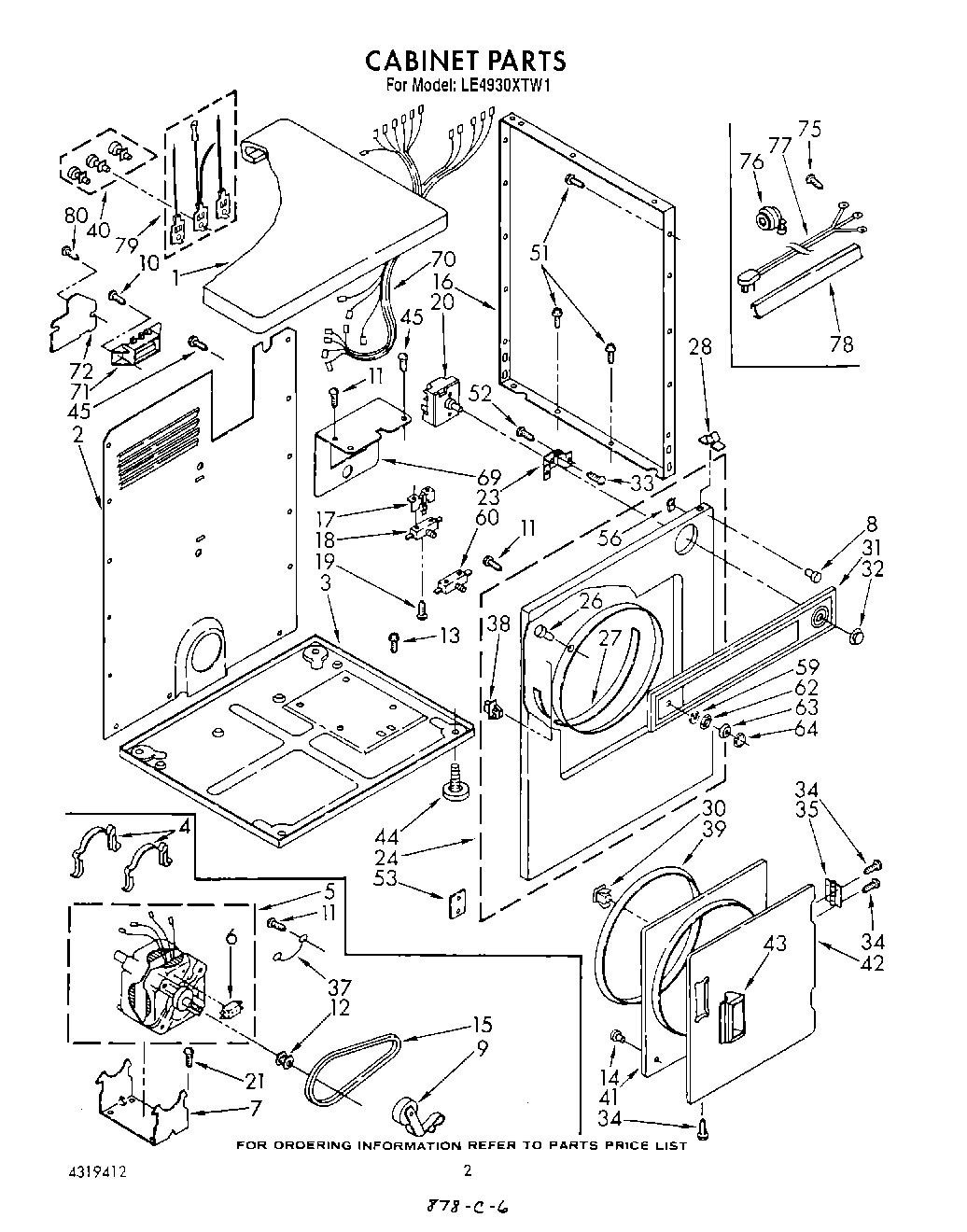

LE4930XTW1 02 – SECTION

Products

PositionProduct
1345703 Whirlpool White Maintop
1Top (Almond)
2Panel, Rear (240 Volt)
3WP348726 Whirlpool Base Assembly
4WP660658 Whirlpool Clamp
6279827 Whirlpool Dryer Drive Motor
7696541 Whirlpool Base
8Rivet, Plastic (4)
9WP691366 Whirlpool Dryer Idler Pulley Assembly
11SCREW
12W10837625 Whirlpool Dryer Motor Pulley
14238614 Whirlpool Bumper Hinge
16Panel, Side (Almond)
163394652 Whirlpool Drum Belt
17WP691581 Whirlpool Actuator
18W10820036 Whirlpool Door Switch Kit
19WP98129 Whirlpool Screw
20Timer, 60 Hz.
21WP3390631 Whirlpool Screw
23348171 Whirlpool Bracket
24xFront Panel Assembly (White)
24xFront Panel Assembly (Almond)
26279220 Whirlpool Clip
27279264 Whirlpool Bearing and Seal Kit
28WP345670 Whirlpool Lock
30WP3389441 Whirlpool Door Catch
31Panel, Control
32Timer Knob & Skirt Assembly
33303776 Whirlpool Dishwasher Screw
34WP694091 Whirlpool Screw
35WP348023 Whirlpool Hinge
37Wire, Ground
38279570 Whirlpool Dryer Door Latch Kit
39W11613302 Whirlpool Door Seal
40279393 Whirlpool Terminal Block Screw and Nut Kit
41Door, Rear
42Door, Front (White)
42Door, Front (Almond)
43WP3405184 Whirlpool White Door Handle
43Handle, Door (Almond)
44WP233550 Whirlpool Leveling Feet
45WP308685 Whirlpool Microwave Screw
51WP489069 Whirlpool Compactor Screw
52WP90767 Whirlpool Screw
53W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
56WP98234 Whirlpool Nut
59Lockwasher
60Switch, Push-To-Start
62Nut, Hex
63Ring, Trim
64Nut, Knurled
69279304 Whirlpool Block Terminal
70Harness, Wiring
71279320 Whirlpool Dryer Rear Terminal Block Kit
72W11736322 Whirlpool Cover Assembly
76W11712577 Whirlpool Clip
77PT220L Whirlpool Dryer Power Cord
78Protector Support
78WPL 686767
79279318 Whirlpool Terminal
80WP693995 Whirlpool Screw
