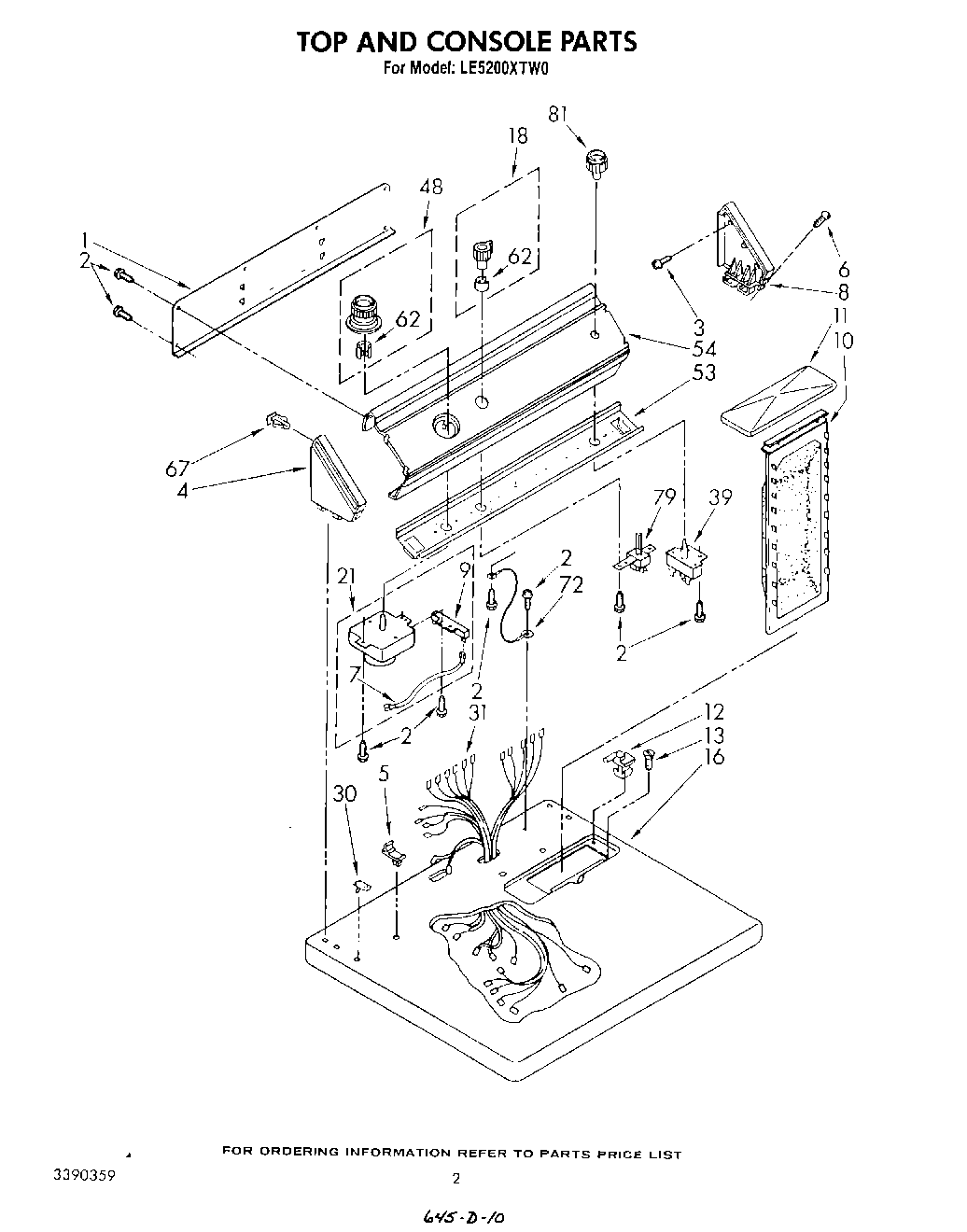

LE5200XTW0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	WPL LIT677971
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677967
	Washer (Belt Drive)
	WP72107 Whirlpool Touchup
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL LIT3390215
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	Almond (Uncut)
	Guide, Dryer
	350938 Whirlpool Spray Gun
	WPL LIT3390359
	Dryer
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	WPL 64211
7	Wire, Jumper
8	WPL 63796
9	279872 Whirlpool Resistor
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Platinum)
16	Top (Toast)
16	Top (Golden Harvest)
16	Top (Almond)
16	Top (White)
18	Control Knob, Temperature
21	Timer & Resistor (60 Hz.)
30	Nut, Push-In (2)
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push-To-Start
