LE5200XTW1 04 – SECTION

LE5200XTW1 04 – SECTION

Written by

in

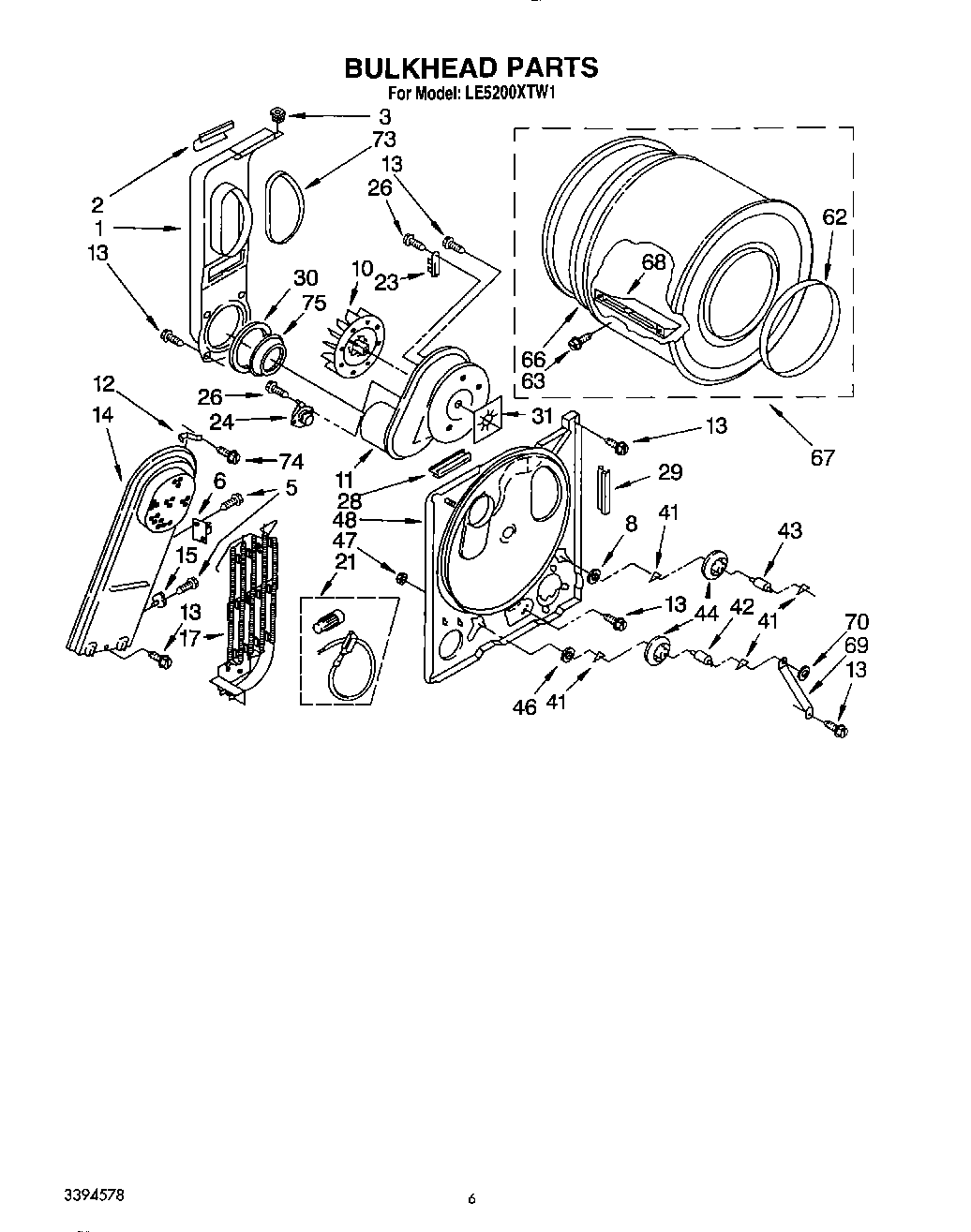

LE5200XTW1 04 – SECTION

Products

PositionProduct
1279505 Whirlpool Chute
2686770 Whirlpool Support Bracket
398460 Whirlpool Nut
5WP90767 Whirlpool Screw
6279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
8WP3388703 Whirlpool Washer
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15WP3390291 Whirlpool High Limit Thermostat
17WP4391960 Whirlpool Dryer Heating Element
21279457 Whirlpool Dryer Heating Element Wide Spade Connection
23WP3392519 Whirlpool Dryer Thermal Fuse
24WP3387134 Whirlpool Dryer Cycling Thermostat
26WP965173 Whirlpool Dishwasher Screw
29686889 Whirlpool Pad
30W11415783 Whirlpool Seal
31Seal, Blower
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
75W11233063 Whirlpool Shield Assembly
