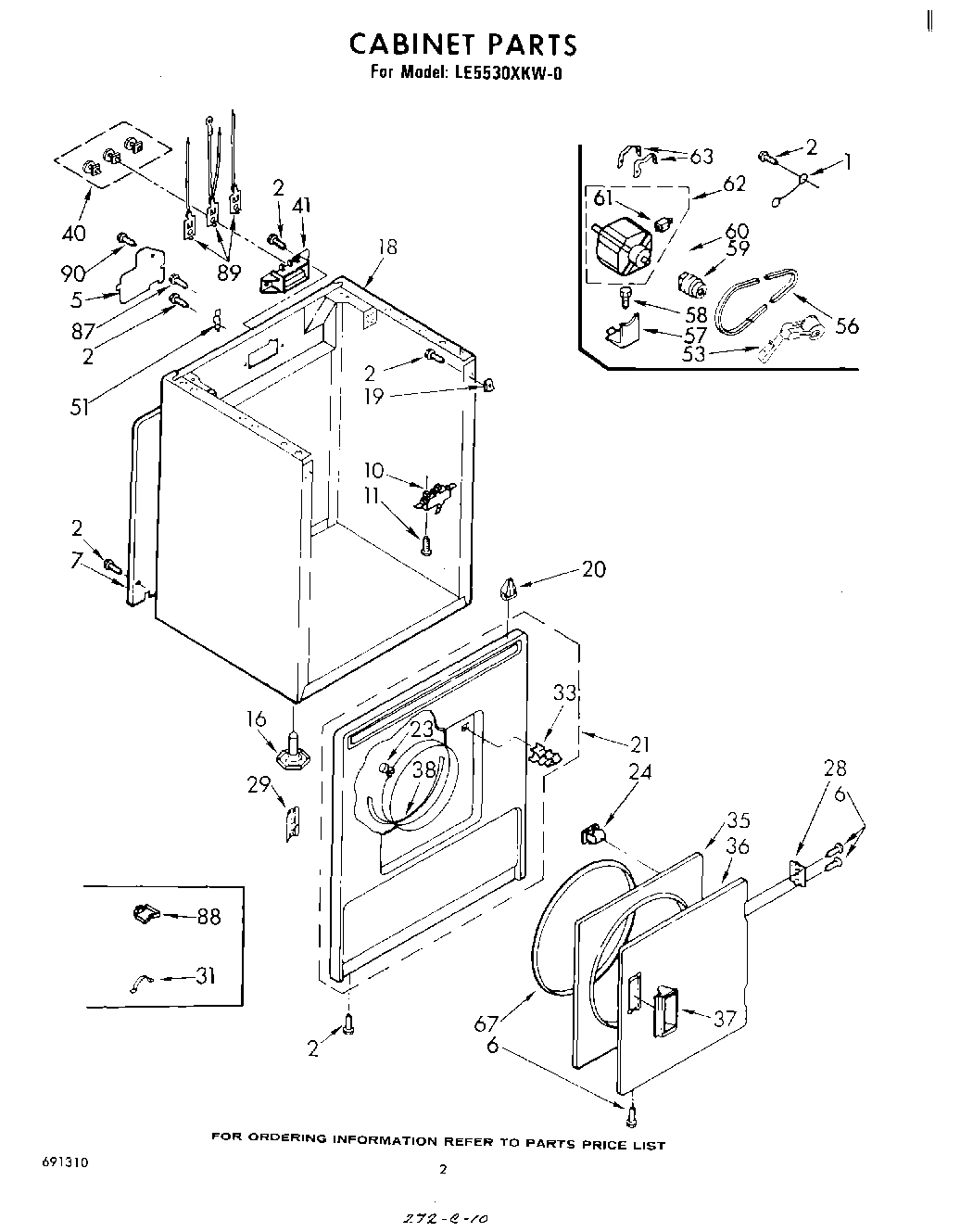

LE5530XKW0 02 – SECTION

Products

Position	Product
1	Wire, Ground (Motor)
5	W11736322 Whirlpool Cover Assembly
6	Screw
7	Panel, Rear
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
18	Cabinet (Golden Harvest)
18	Cabinet (White)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Upper Front Panel Assembly (Golden Harvest)
21	Upper Front Panel Assembly (White)
21	Upper Front Panel Assembly (Almond)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	WP348023 Whirlpool Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31	8528351 Whirlpool Clip
35	280077 Whirlpool Door
36	WP348205 Whirlpool Door
36	Door, Front (Almond)
36	WPL 689319
37	Handle, Door (Almond)
37	WP686711 Whirlpool Door Handle
37	Handle, Door (Golden Harvest)
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	W11233559 Whirlpool Motor Pulley
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W11613302 Whirlpool Door Seal
87	SCREW
88	Clip, Harness (Rear Bulkhead Area)
89	279318 Whirlpool Terminal
