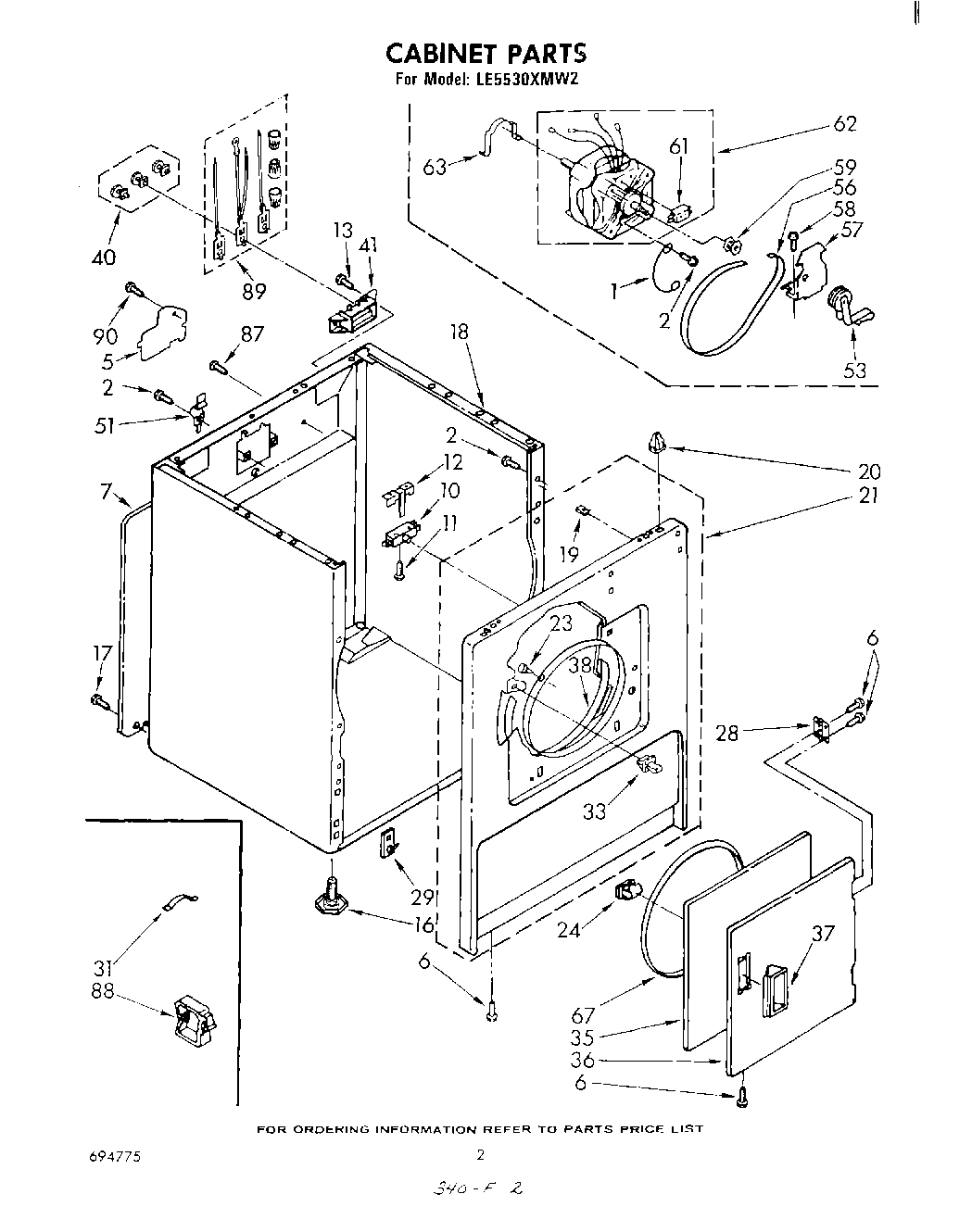

LE5530XMW2 02 – SECTION

Products

Position	Product
1	Wire, Ground (Motor)
2	SCREW
5	W11736322 Whirlpool Cover Assembly
6	WP694091 Whirlpool Screw
7	Panel, Rear
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691581 Whirlpool Actuator
13	WP308685 Whirlpool Microwave Screw
16	49621 Whirlpool Leveling Feet
17	WP489069 Whirlpool Compactor Screw
18	Cabinet (White)
18	Cabinet (Golden Harvest)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel (White)
21	Front Panel Assembly (Also Includes Illus. 19) (Golden Harvest)
21	Front Panel (Almond)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	WP348023 Whirlpool Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31	8528351 Whirlpool Clip
35	280077 Whirlpool Door
36	WPL 689319
36	Door, Front (Almond)
36	WP348205 Whirlpool Door
37	Handle, Door (Golden Harvest)
37	Handle, Door (Almond)
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W11613302 Whirlpool Door Seal
88	Clip, Harness (Rear Bulkhead Area)
89	279318 Whirlpool Terminal
