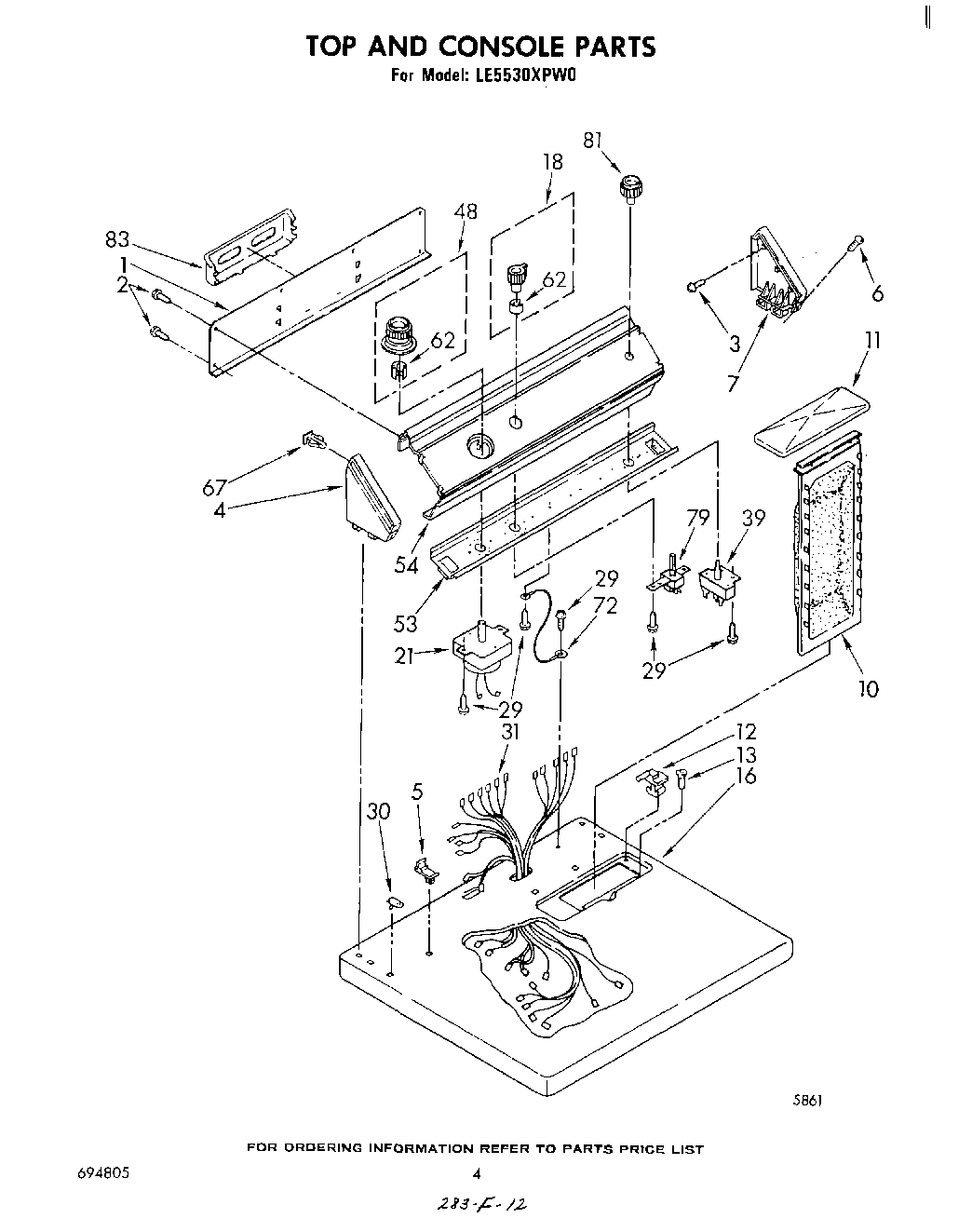

LE5530XPW0 03 – SECTION

Products

Position	Product
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Golden Harvest (Uncut)
1	Panel, Rear
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	WPL 64211
7	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Platinum)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Golden Harvest)
16	Top (White)
16	Top (Platinum)
16	Top (Toast)
16	Top (Almond)
18	Knob, Water Level
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
63	Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push To Start
83	Instructions, Installation
83	Use & Care Guide
83	List, Parts
83	Leveler (Thinner)
83	WPL 693849
83	350956 Whirlpool Spray Assembly
83	72017 Whirlpool Appliance Touch-Up Paint White
83	WP72107 Whirlpool Touchup
83	350930 Whirlpool White Spray Paint
83	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83	72113 Whirlpool Touch-Up Paint
83	Golden Harvest
83	Toast
83	WPL 72112
83	Paint, Spray (13 Oz.) (Platinum)
83	WPL 677813
83	WPL 677818
83	WPL 677821
83	WPL 677967
83	Rack, Literature
83	WPL 799351
83	350938 Whirlpool Spray Gun
