LE5600XKW0 03 – SECTION

LE5600XKW0 03 – SECTION

Written by

in

LE5600XKW0 03 – SECTION

Products

Position	Product
	WPL LIT691257
	Golden Harvest (Uncut)
	Wire, 25` Roll (Red 12 Ga.)
	WPL 799351
	WPL LIT688643
	W10851673 Whirlpool Transformer
	Instructions, Wiring
	Supplement, Installation Instructions
	Instructions, Harness Rework
	WPL LIT691503
	WPL LIT688898
	WPL ARI117429A
	WPL ARI117430A
	WPL ARI117431A
	Golden Harvest
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun

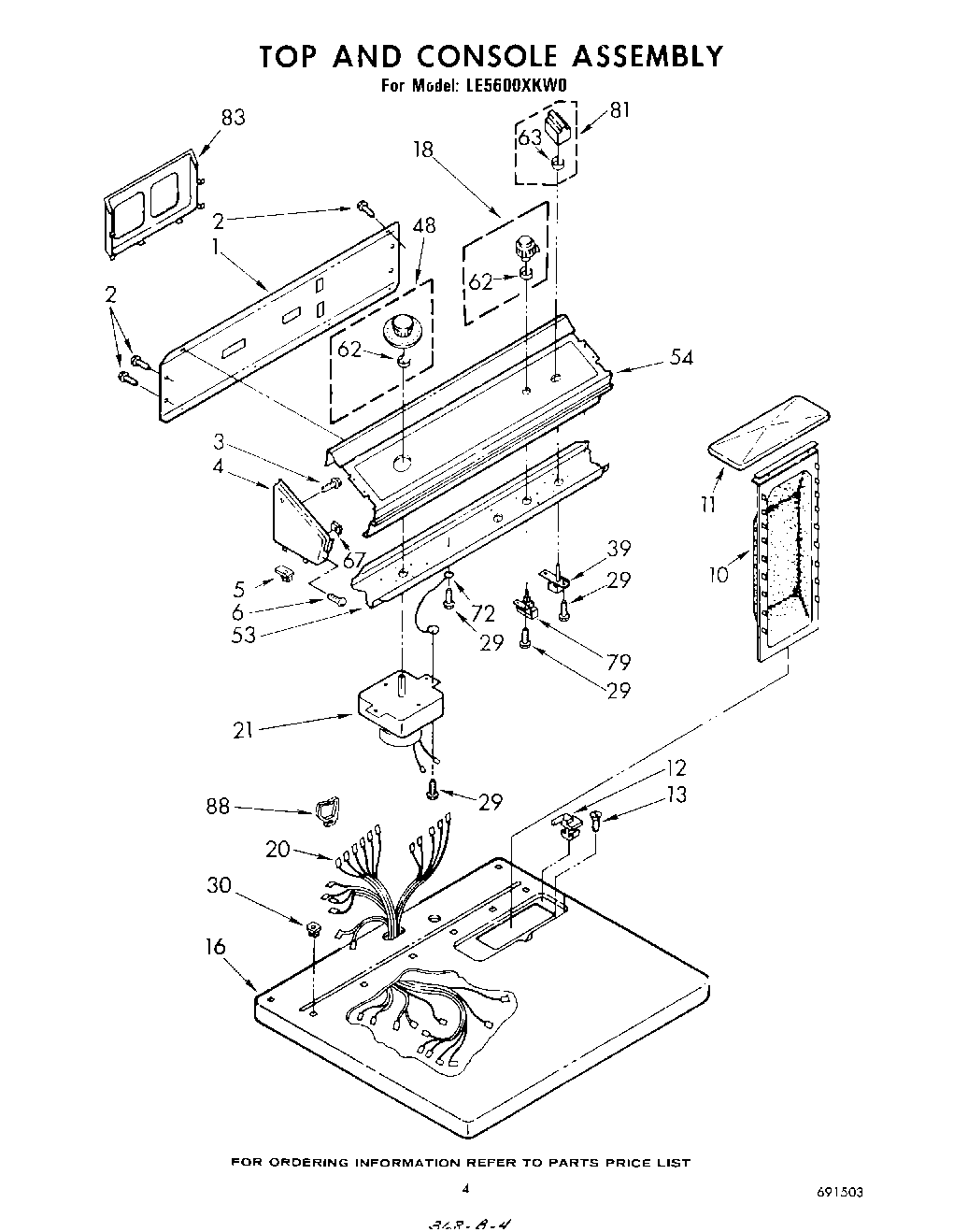

1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (Golden Harvest)
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Golden Harvest)
16	Top (Almond)
16	top (white)
18	Control Knob Assembly
20	Harness, Wiring (60 Hz.)
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
63	Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Rotary
81	Button Assembly
83	Rack, Literature
88	Clip, Harness (Rear Bulkhead Area)
