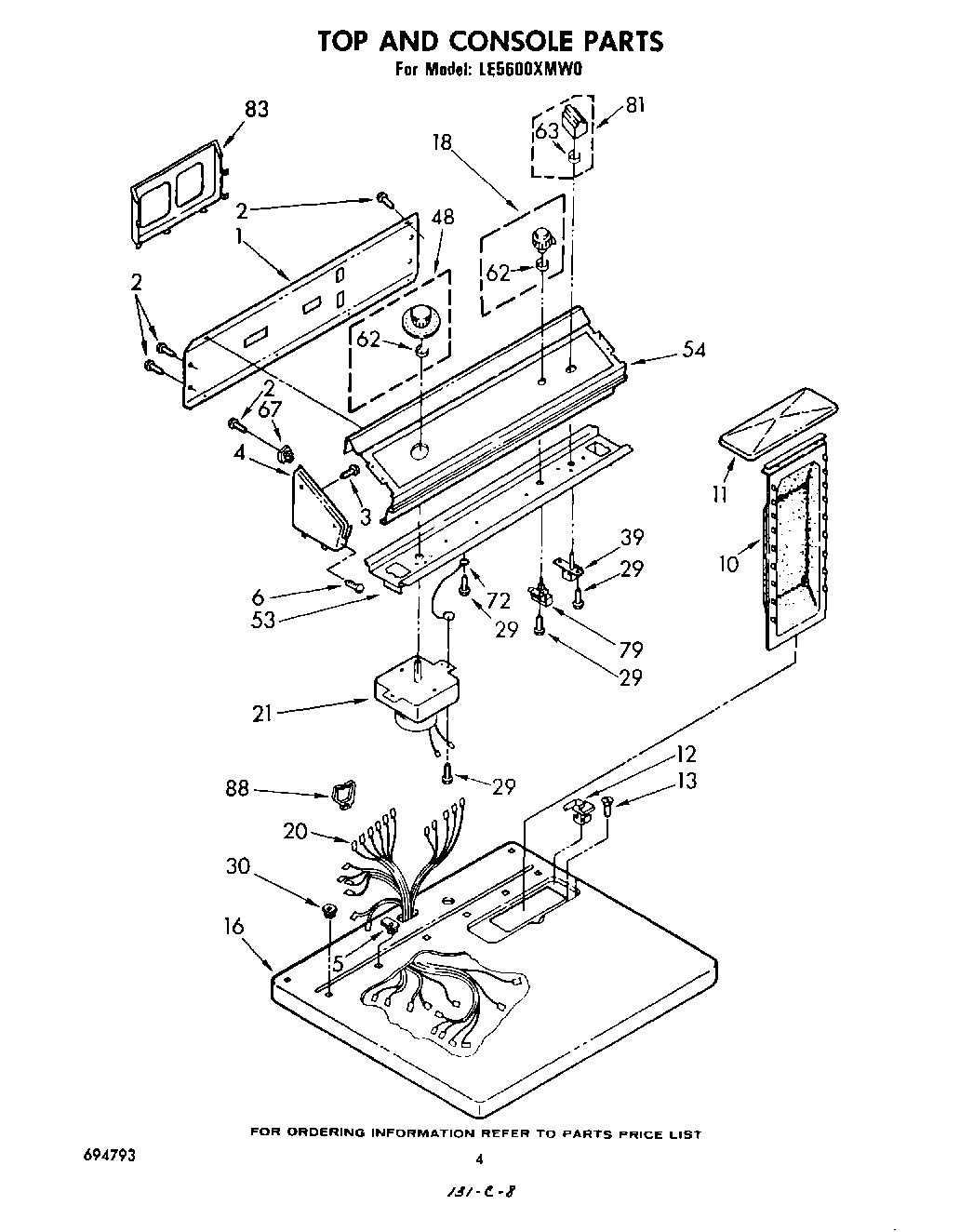

LE5600XMW0 03 – SECTION

Products

Position	Product
	Golden Harvest (Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Almond)
16	Top (Golden Harvest)
16	top (white)
18	Control Knob Assembly
20	Harness (Electric)
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
63	Clip
67	Nut, Push-In (4)
72	Wire, Ground
79	Switch, Temperature Selector
81	Button Assembly
83	Rack, Literature
88	WPL 691277
88	350938 Whirlpool Spray Gun
88	Instructions, Installation
88	Clip, Harness (Rear Bulkhead Area)
88	350956 Whirlpool Spray Assembly
88	72017 Whirlpool Appliance Touch-Up Paint White
88	WPL 693849
88	WPL 799351
88	WP72107 Whirlpool Touchup
88	Leveler (Thinner)
88	350930 Whirlpool White Spray Paint
88	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
88	Golden Harvest
88	List, Service Parts
