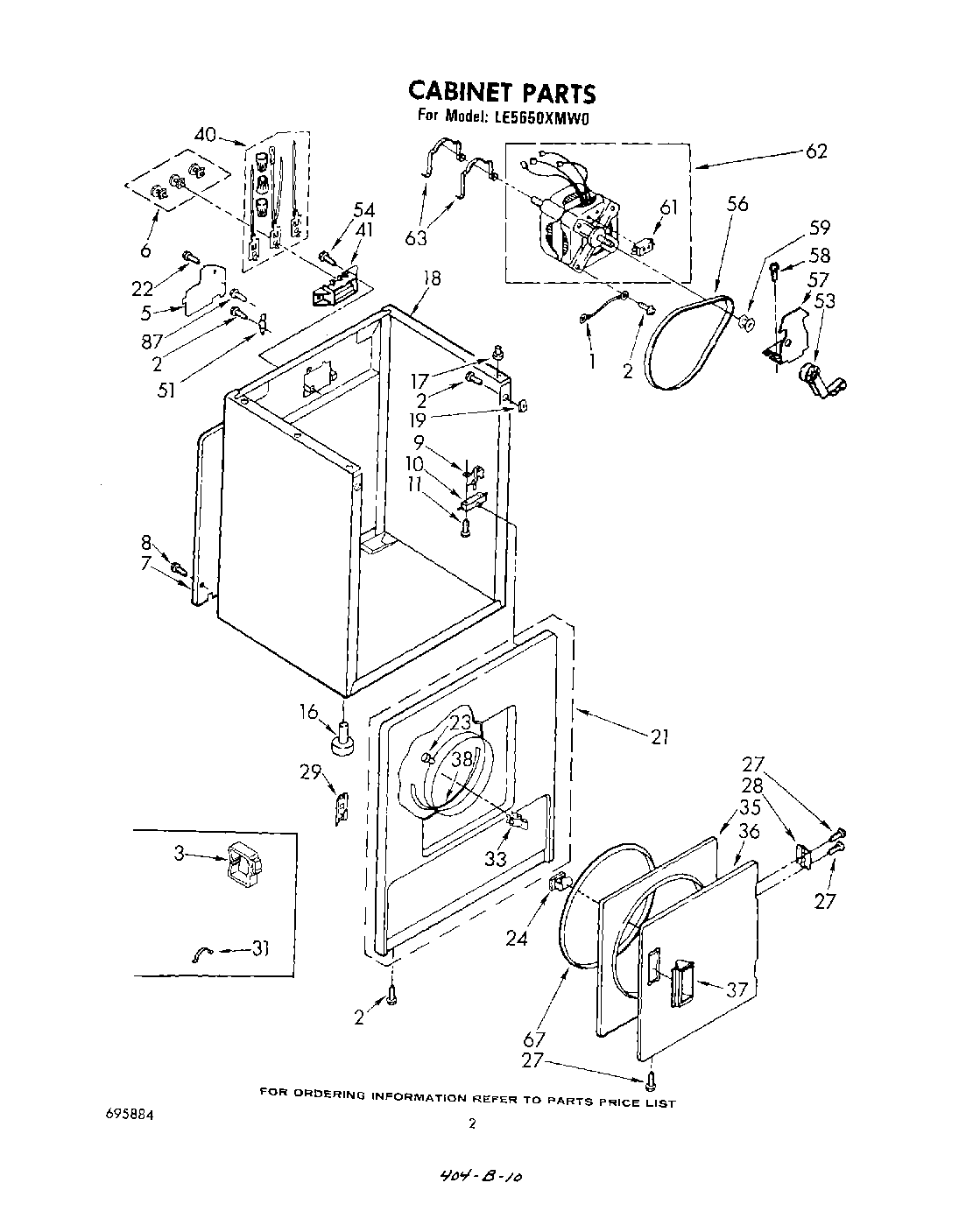

LE5650XMW0 02 – CABINET

Products

Position	Product
1	Wire, Ground (Motor)
2	SCREW
3	Clip, Harness (Rear Bulkhead Area)
5	W11736322 Whirlpool Cover Assembly
6	279393 Whirlpool Terminal Block Screw and Nut Kit
7	Panel, Rear
8	WP489069 Whirlpool Compactor Screw
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
16	49621 Whirlpool Leveling Feet
17	WP18776 Whirlpool Lock
18	Cabinet (White)
19	WP98234 Whirlpool Nut
21	Front Panel (White)
22	WP693995 Whirlpool Screw
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
27	WP694091 Whirlpool Screw
28	WP348023 Whirlpool Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
31	8528351 Whirlpool Clip
35	280077 Whirlpool Door
36	WP348205 Whirlpool Door
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	279318 Whirlpool Terminal
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
54	WP308685 Whirlpool Microwave Screw
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W11613302 Whirlpool Door Seal
