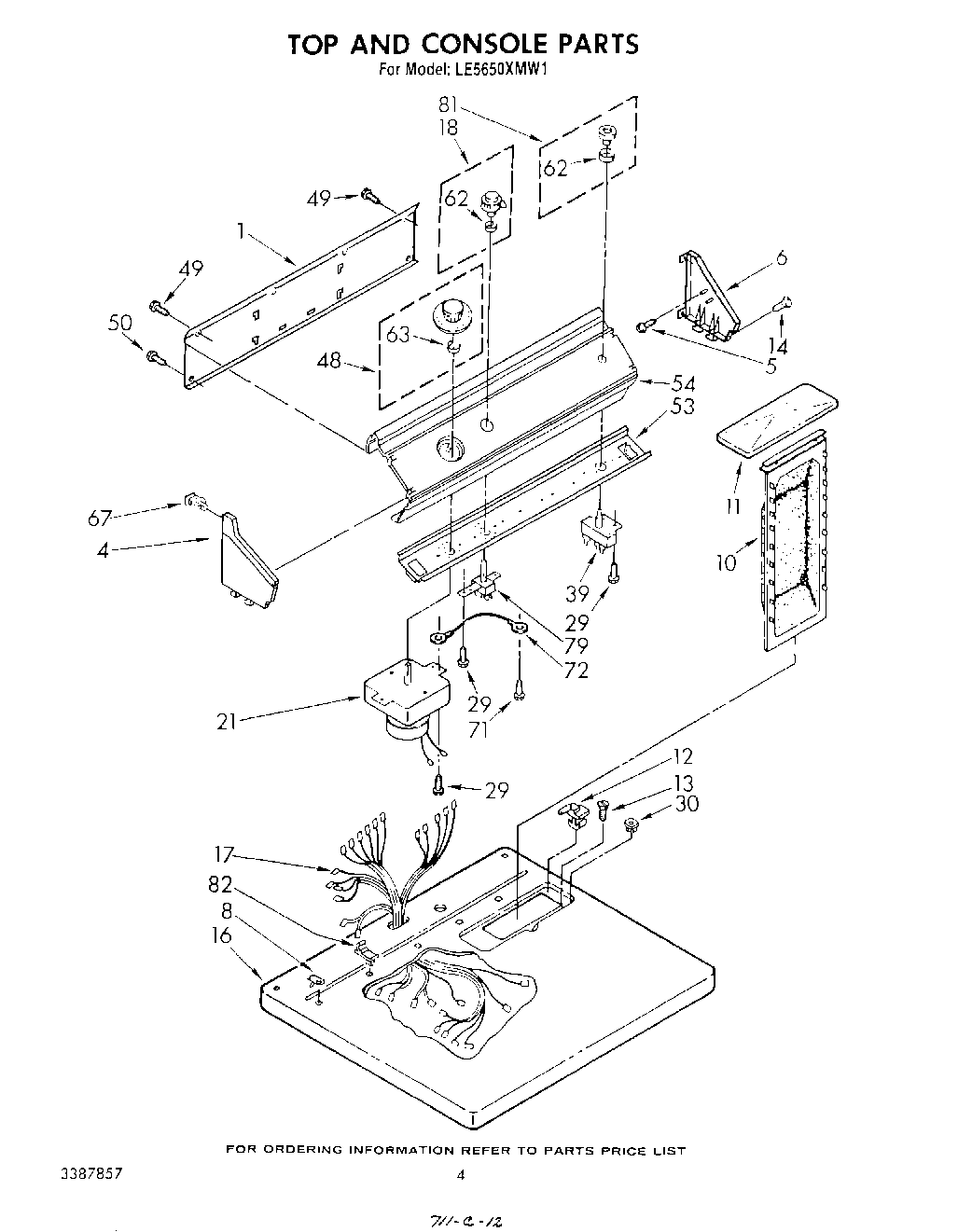

LE5650XMW1 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Wire, 25` Roll (Red 12 Ga.)
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	WPL LIT677967
	List, Service Parts
	Dryer
	Washer (Belt Drive)
	Guide, Dryer
	Leveler (Thinner)
	Instructions, Installation
	Use & Care Guide
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
4	Cap, End (L.H.) (White Cap, End (R.H.))
5	WPL 355326
6	Cap, End (L.H.) (White)
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
17	Harness, Wiring
18	Control Knob Assembly
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
30	98460 Whirlpool Nut
39	(Alt.)
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
49	WP489069 Whirlpool Compactor Screw
50	WP693995 Whirlpool Screw
53	Bracket, Control
54	Panel, Control
62	Clip
63	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
71	SCREW
72	Wire, Ground
79	Switch, Temperature Selector
81	Button Assembly
82	Stop, Push-In Top
