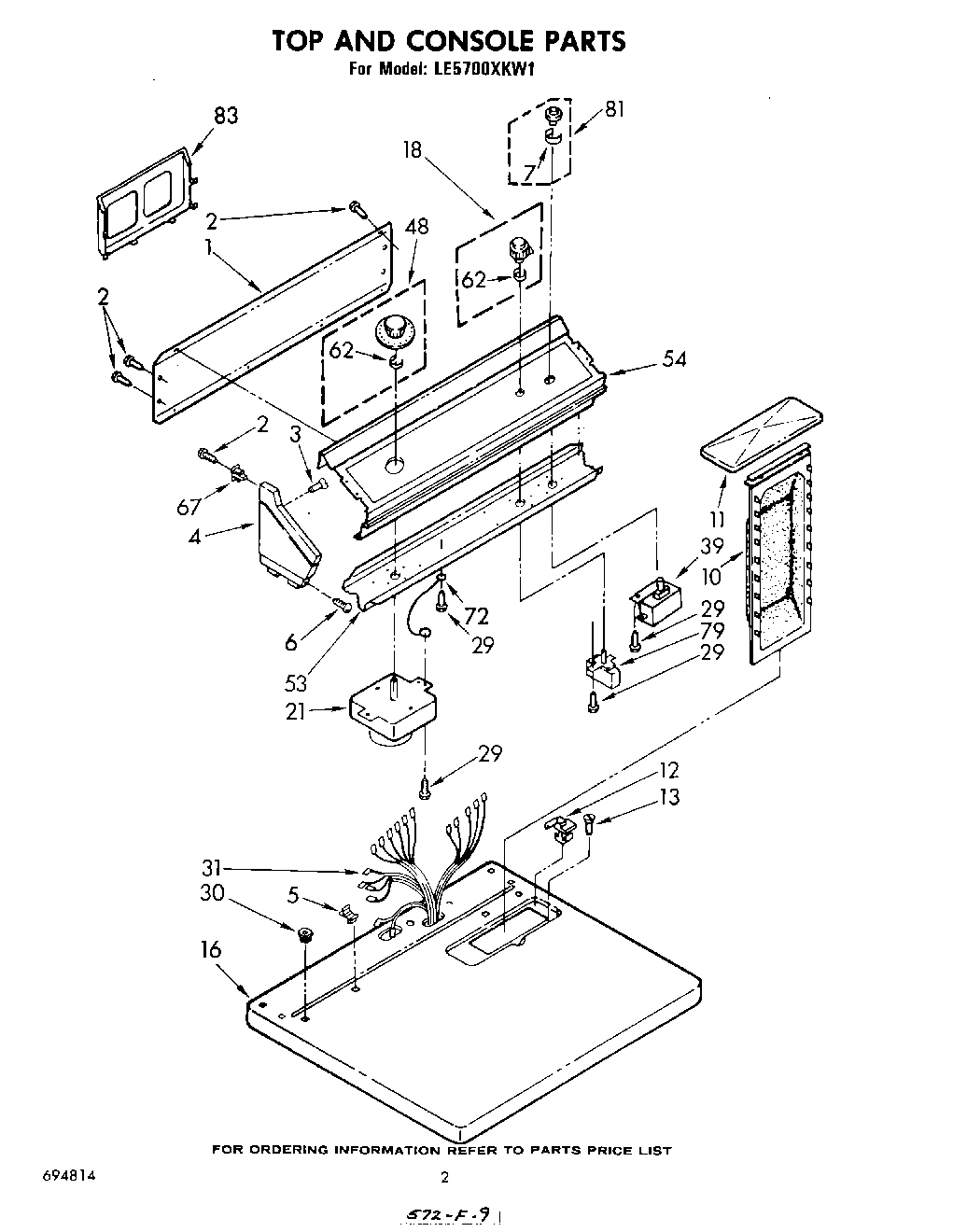

LE5700XKW1 02 – SECTION

Products

Position	Product
	Golden Harvest (Uncut)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
7	Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	top (white)
16	Top (Almond)
16	Top (Golden Harvest)
18	Control Knob Assembly
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Button Assembly
83	350938 Whirlpool Spray Gun
83	Instructions, Installation
83	350956 Whirlpool Spray Assembly
83	WPL 691272
83	72017 Whirlpool Appliance Touch-Up Paint White
83	WP72107 Whirlpool Touchup
83	Rack, Literature
83	Leveler (Thinner)
83	350930 Whirlpool White Spray Paint
83	WPL 693849
83	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83	Golden Harvest
83	WPL 799351
83	List, Service Parts
