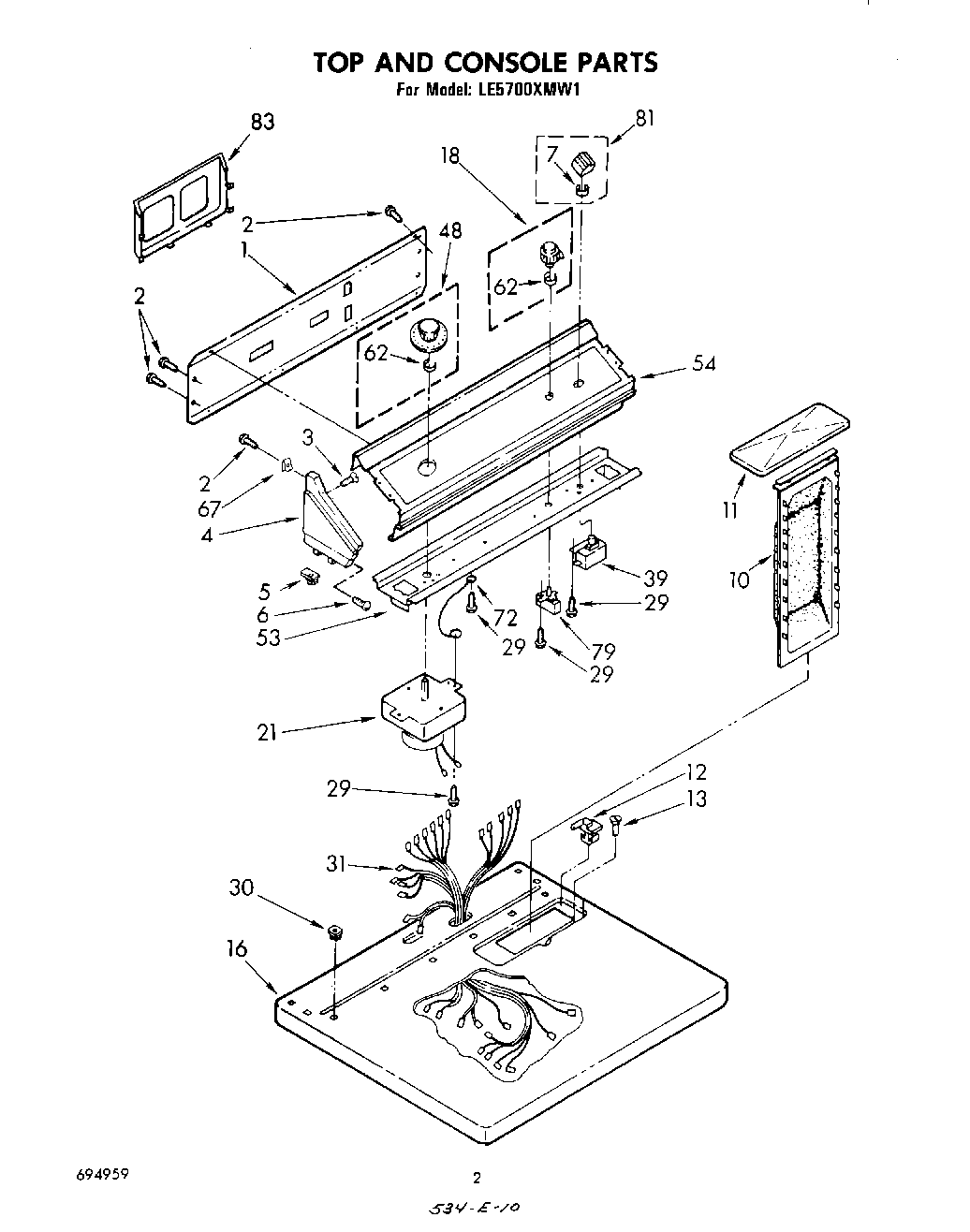

LE5700XMW1 02 – SECTION

Products

Position	Product
	WPL LIT691272
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL 799351
	Guide, Dryer
	WPL LIT694959
	WPL LIT694345
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
	Almond (Uncut)
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (Platinum Cap, End (R.H.))
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (Toast)
4	Cap, End L.H. (Platinum)
4	Cap, End L.H. (Toast)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Almond Cap, End R.H.)
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
7	Clip
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Platinum)
16	top (white)
16	Top (Almond)
16	Top (Golden Harvest)
16	Top (Toast)
18	Control Knob Assembly
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness (Electric)
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	Clip (4)
72	Wire, Ground
79	Switch, Rotary
81	Button Assembly
83	Rack, Literature
