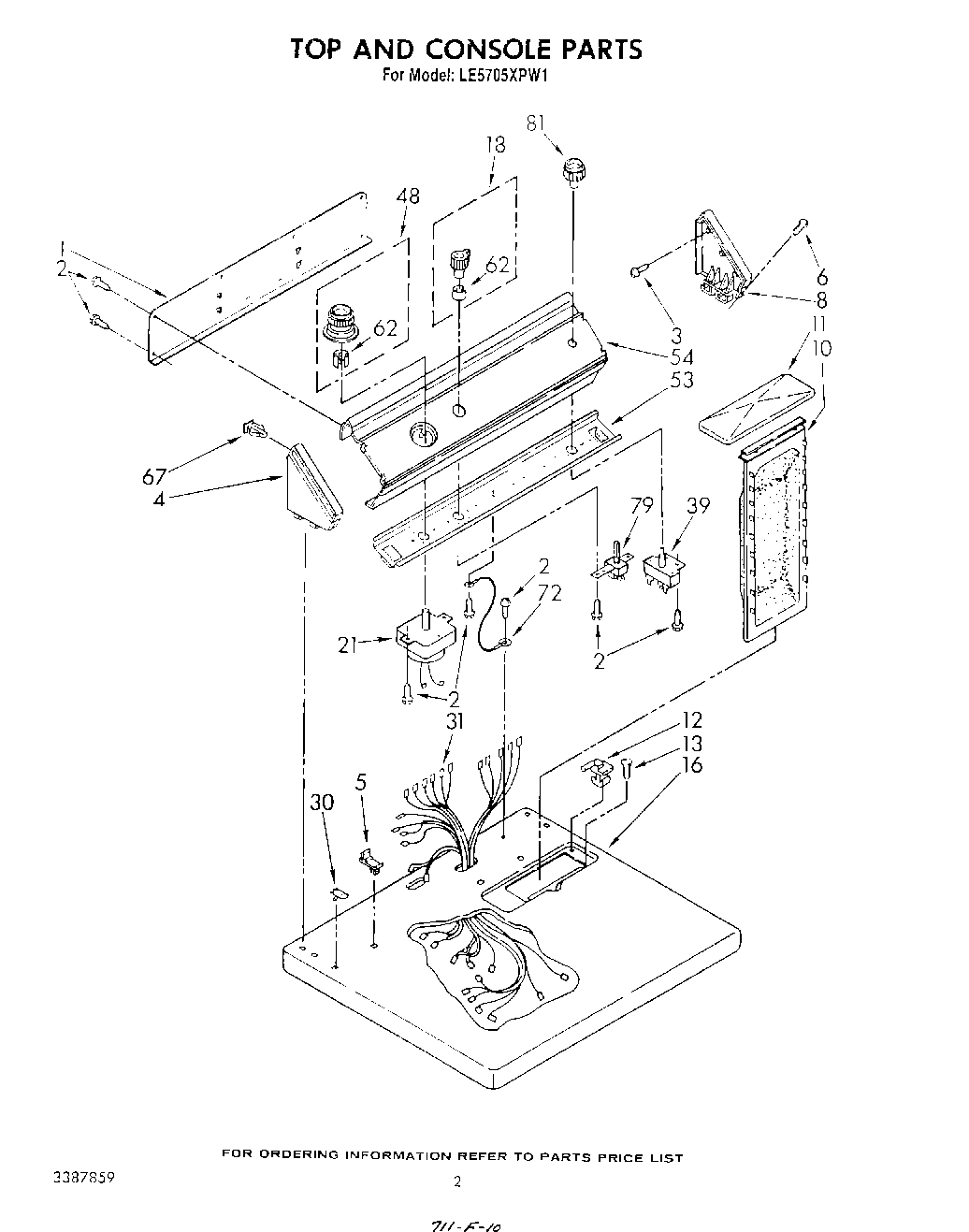

LE5705XPW1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Washer (Belt Drive)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT3388810
	WPL LIT677971
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL LIT3387859
	WP72107 Whirlpool Touchup
	WPL LIT677967
	Leveler (Thinner)
	Dryer
	Almond (Uncut)
	Instructions, Installation
	Guide, Dryer
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	WPL 64211
8	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Platinum)
16	Top (Toast)
16	Top (Golden Harvest)
16	Top (Almond)
16	Top (White)
18	Knob, Water Level
21	Timer, 60 Hz.
30	Nut, Push-In (2)
31	Harness, Wiring
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push To Start
