LE5720XPW0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Washer (Belt Drive)
	WPL LIT677967
	WPL 72112
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Platinum (Uncut)
	72113 Whirlpool Touch-Up Paint
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Golden Harvest
	Golden Harvest (Uncut)
	Guide, Dryer
	Dryer
	WPL LIT696234
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL LIT694810
	WP72107 Whirlpool Touchup
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT693694
	Toast

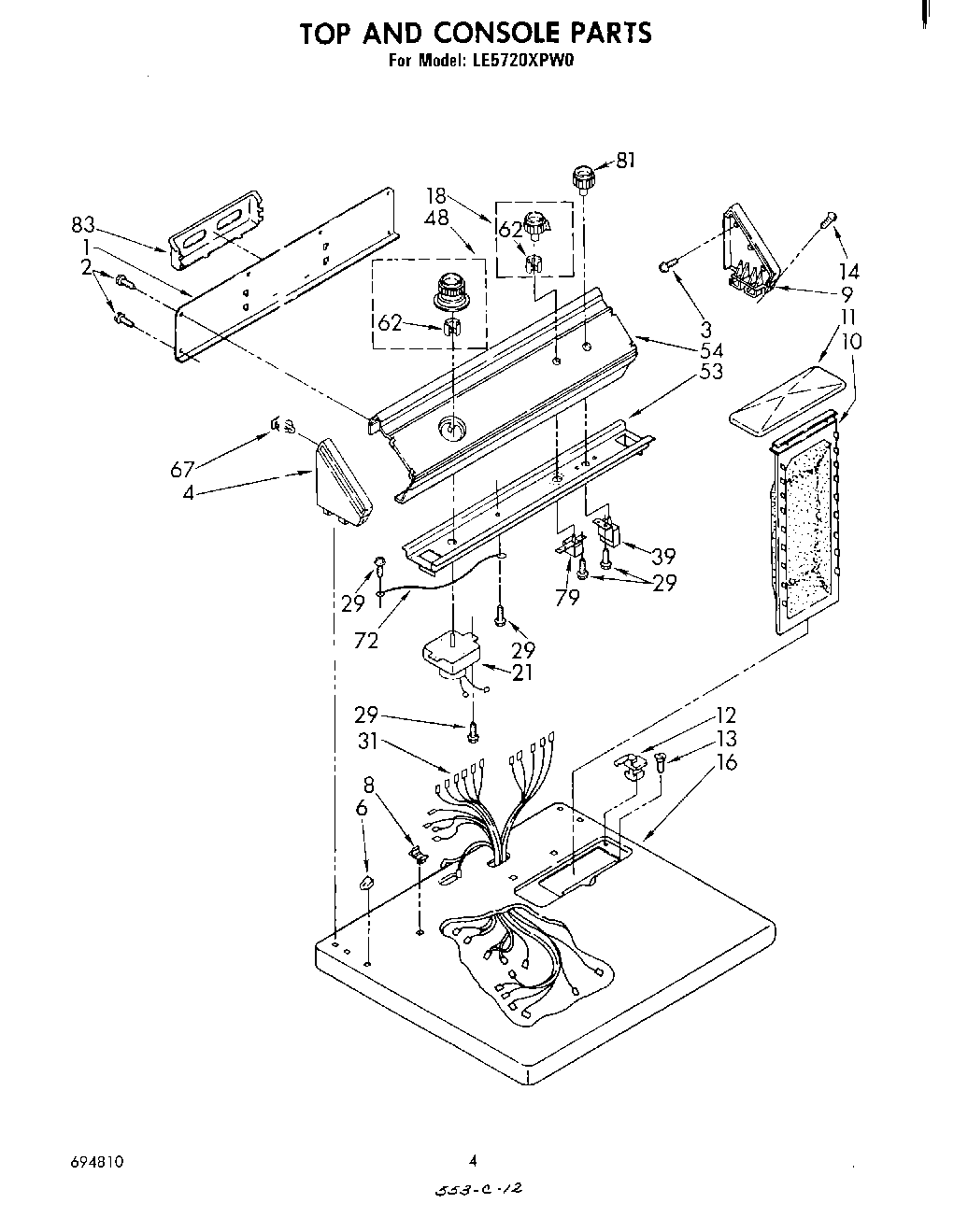

1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
6	Nut, Push-In (2)
8	Stop, Push-In Top
9	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
16	Top (Almond)
16	Top (Platinum)
16	Top (Golden Harvest)
16	Top (Toast)
18	Knob, Water Level
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push To Start
83	Rack, Literature
