LE5720XSG1 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Guide, Dryer
	Use & Care Guide
	Almond (Uncut)
	Leveler (Thinner)
	Instructions, Installation
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	Golden Harvest
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint

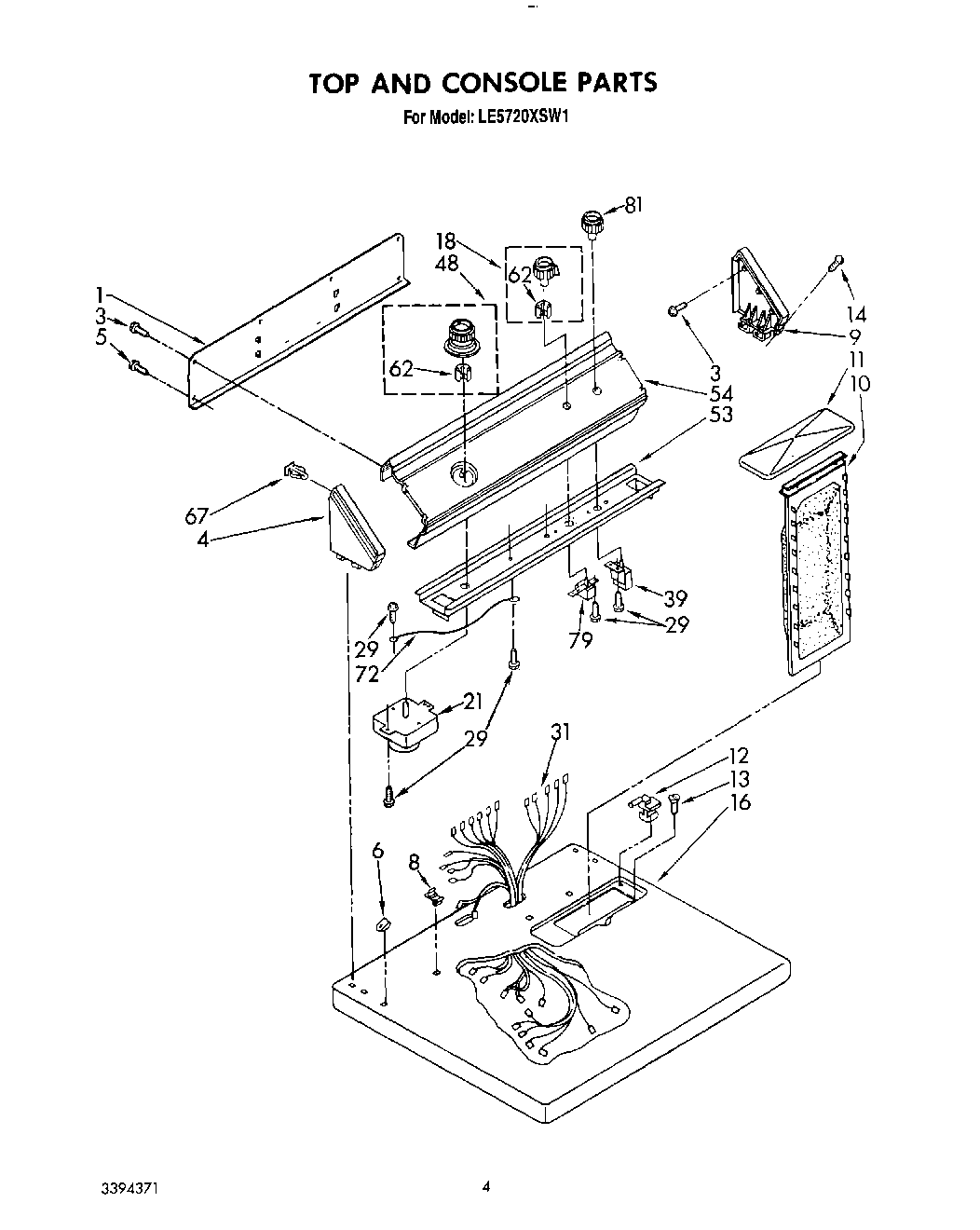

	List, Service Parts
1	Panel, Rear
3	WPL 355326
4	Cap, End (L.H.)
5	WP489069 Whirlpool Compactor Screw
6	Nut, Push-In (2)
8	Stop, Push-In Top
9	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Golden Harvest)
16	Top (Almond)
16	Top (White)
18	Control Knob, Temperature
21	Timer Assembly, 60 Hz.
29	SCREW
31	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push-To-Start
