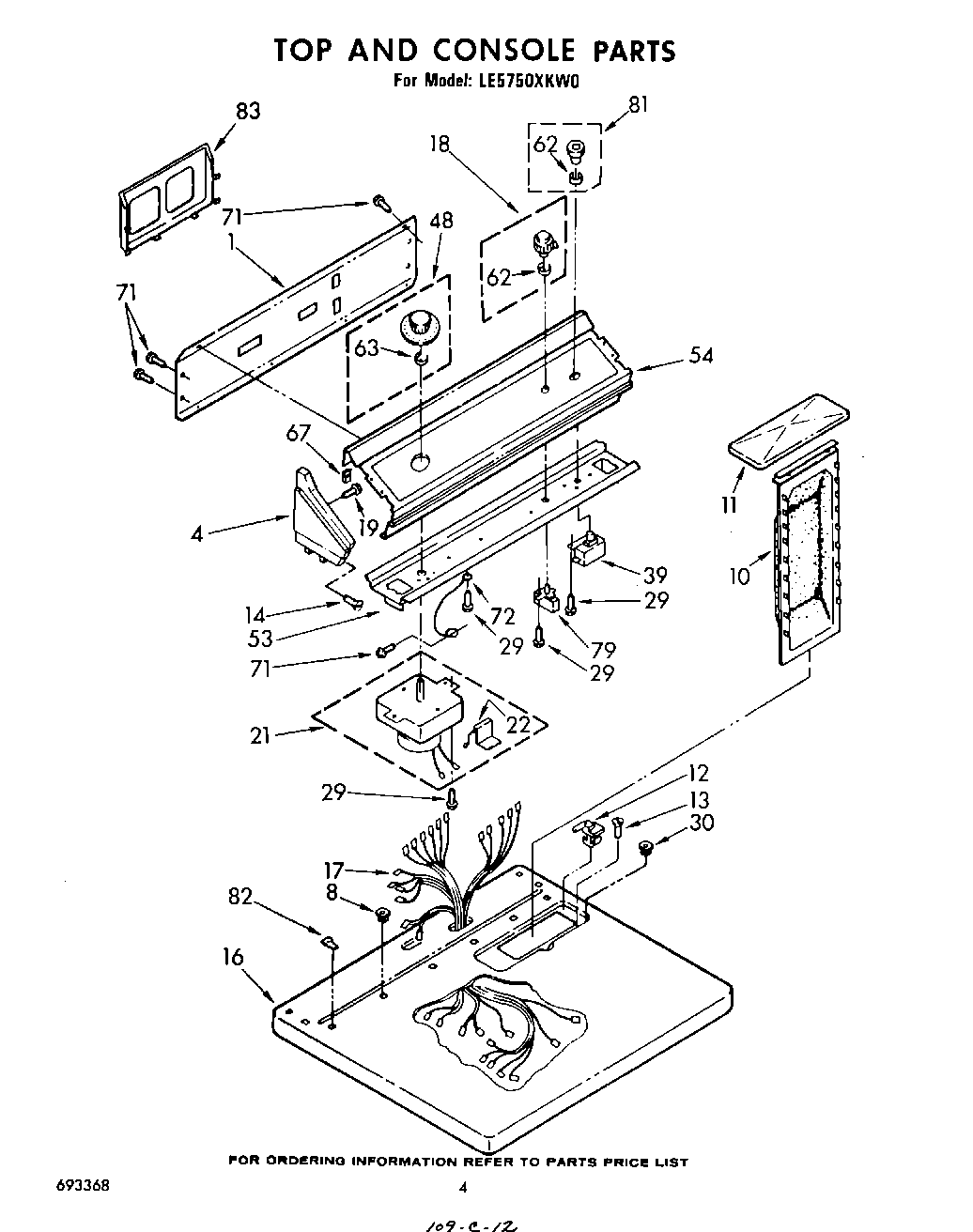

LE5750XKW0 03 – SECTION

Products

Position	Product
	Wire, 25` Roll (Red 12 Ga.)
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
4	Cap, End (L.H.) (White Cap, End (R.H.))
4	Cap, End (L.H.) (White)
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
17	Harness, Electric Wiring
18	Control Knob Assembly
19	WPL 355326
21	Timer & Resistor (60 Hz.)
22	279872 Whirlpool Resistor
29	WP3390631 Whirlpool Screw
30	98460 Whirlpool Nut
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
63	WP688805 Whirlpool Spring Clip
67	Clip (4)
71	SCREW
72	Wire, Ground
79	Switch, Rotary
81	Button Assembly
82	Stop, Push-In Top
83	Use & Care Guide
83	Instructions, Installation
83	72017 Whirlpool Appliance Touch-Up Paint White
83	350938 Whirlpool Spray Gun
83	Leveler (Thinner)
83	WPL 693849
83	WPL 799351
83	350930 Whirlpool White Spray Paint
83	Rack, Literature
83	List, Service Parts
