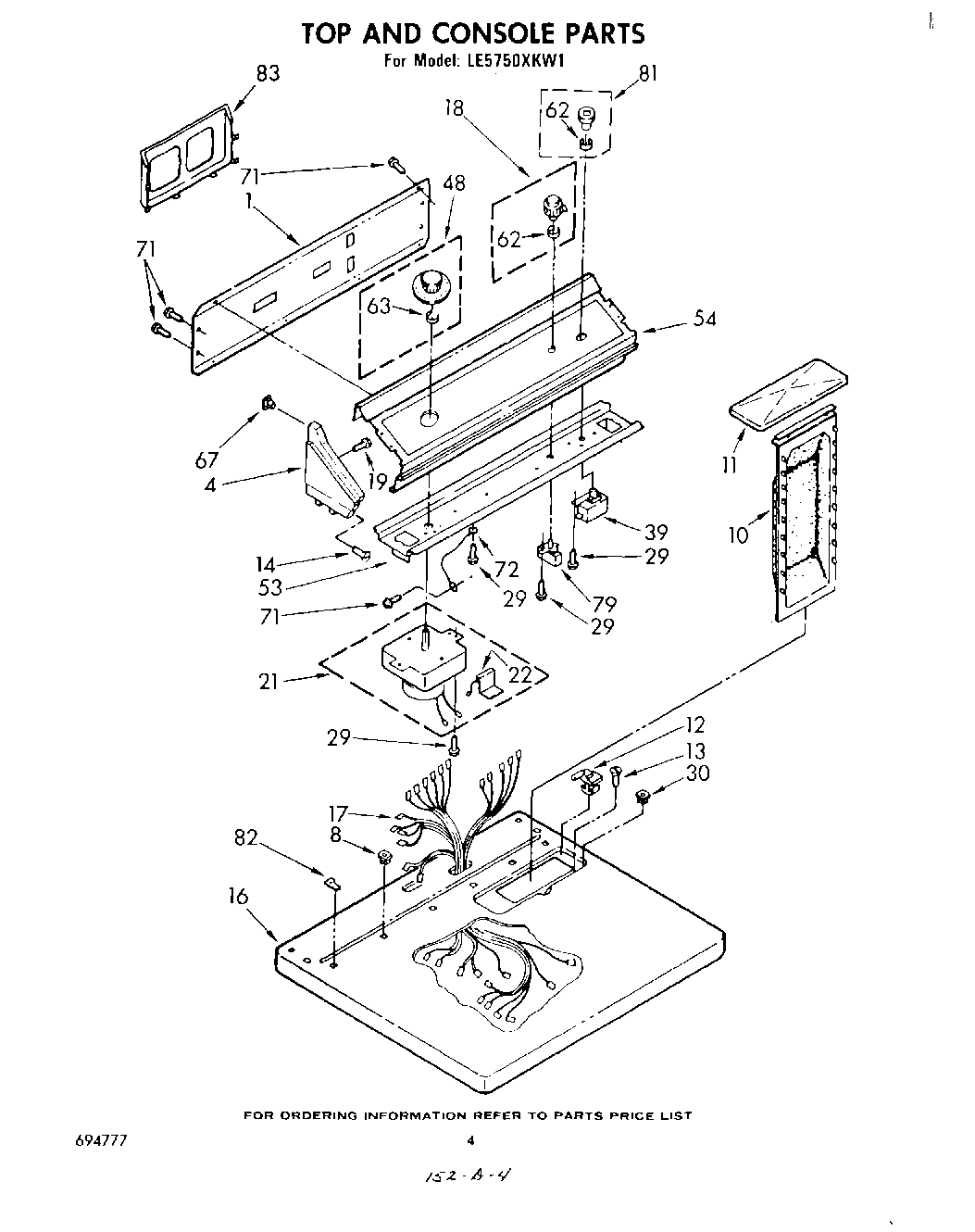

LE5750XKW1 03 – SECTION

Products

Position	Product
	Wire, 25` Roll (Red 12 Ga.)
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (White Cap, End (R.H.))
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
17	Harness, Wiring (60 Hz.)
18	Control Knob Assembly
19	WPL 355326
21	Timer & Resistor (60 Hz.)
22	279872 Whirlpool Resistor
29	WP3390631 Whirlpool Screw
30	98460 Whirlpool Nut
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
63	WP688805 Whirlpool Spring Clip
67	Nut, Push-In (4)
71	SCREW
72	Wire, Ground
79	Switch, Temperature Selector
81	Button Assembly
82	Stop, Push-In Top
83	Leveler (Thinner)
83	350938 Whirlpool Spray Gun
83	Instructions, Installation
83	72017 Whirlpool Appliance Touch-Up Paint White
83	Use & Care Guide
83	Rack, Literature
83	350930 Whirlpool White Spray Paint
83	WPL 799351
83	WPL 693849
83	List, Service Parts
