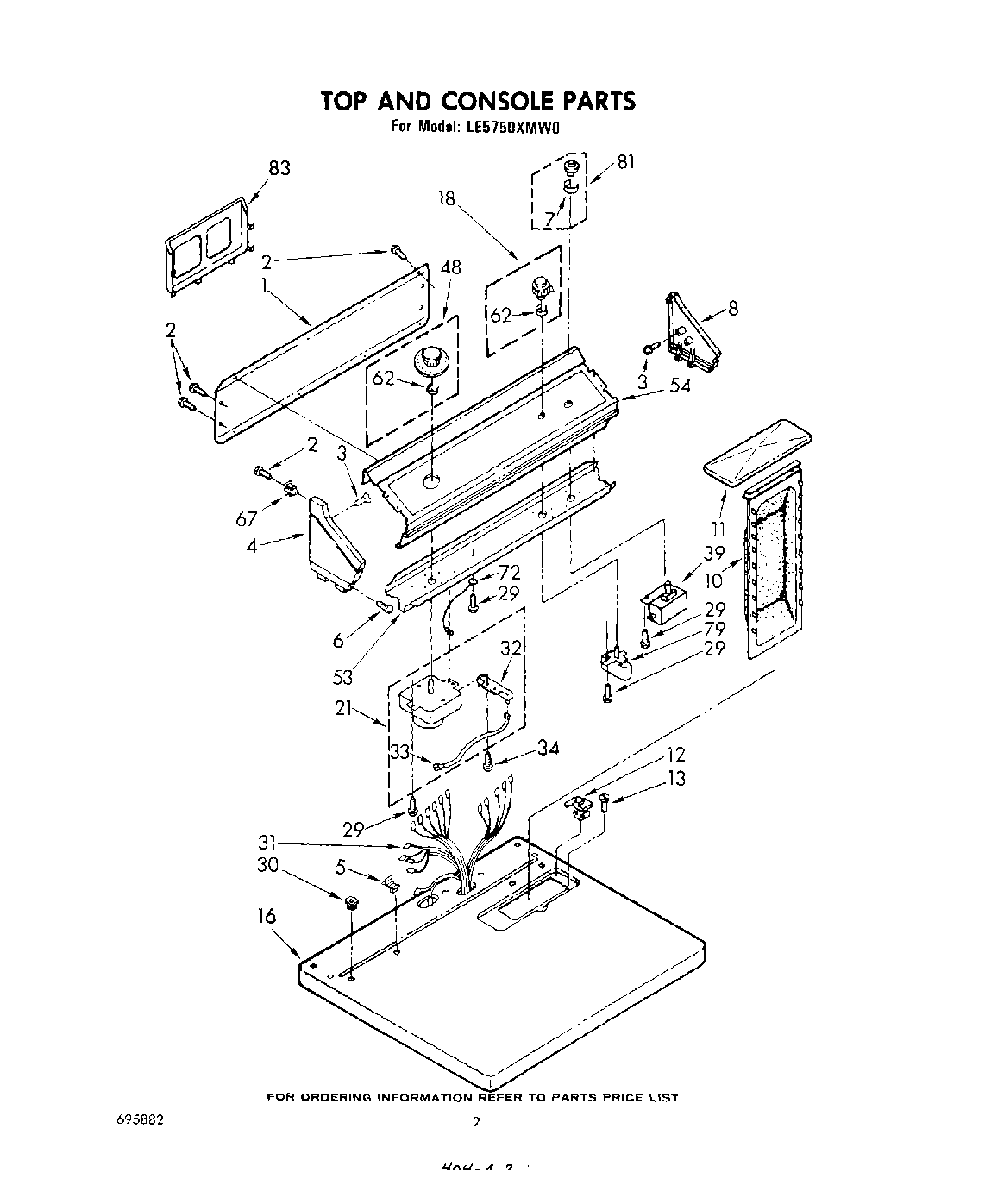

LE5750XMW0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Guide, Dryer
	Washer (Belt Drive)
	WPL LIT677967
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Golden Harvest
	WPL LIT696753
	WPL LIT694345
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	WPL LIT695882
	Leveler (Thinner)
	Golden Harvest (Uncut)
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.) (White Cap, End (R.H.))
5	Stop, Push-In Top
6	Screw, 8-18 x 1 (2)
7	Clip
8	Cap, End (L.H.) (White)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	top (white)
18	Control Knob Assembly
21	Timer and Resistor 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring (60 Hz.)
32	279872 Whirlpool Resistor
33	Wire, Jumper
34	WP273556 Whirlpool Screw
39	(Alt.)
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Button Assembly
83	Rack, Literature

No products found
