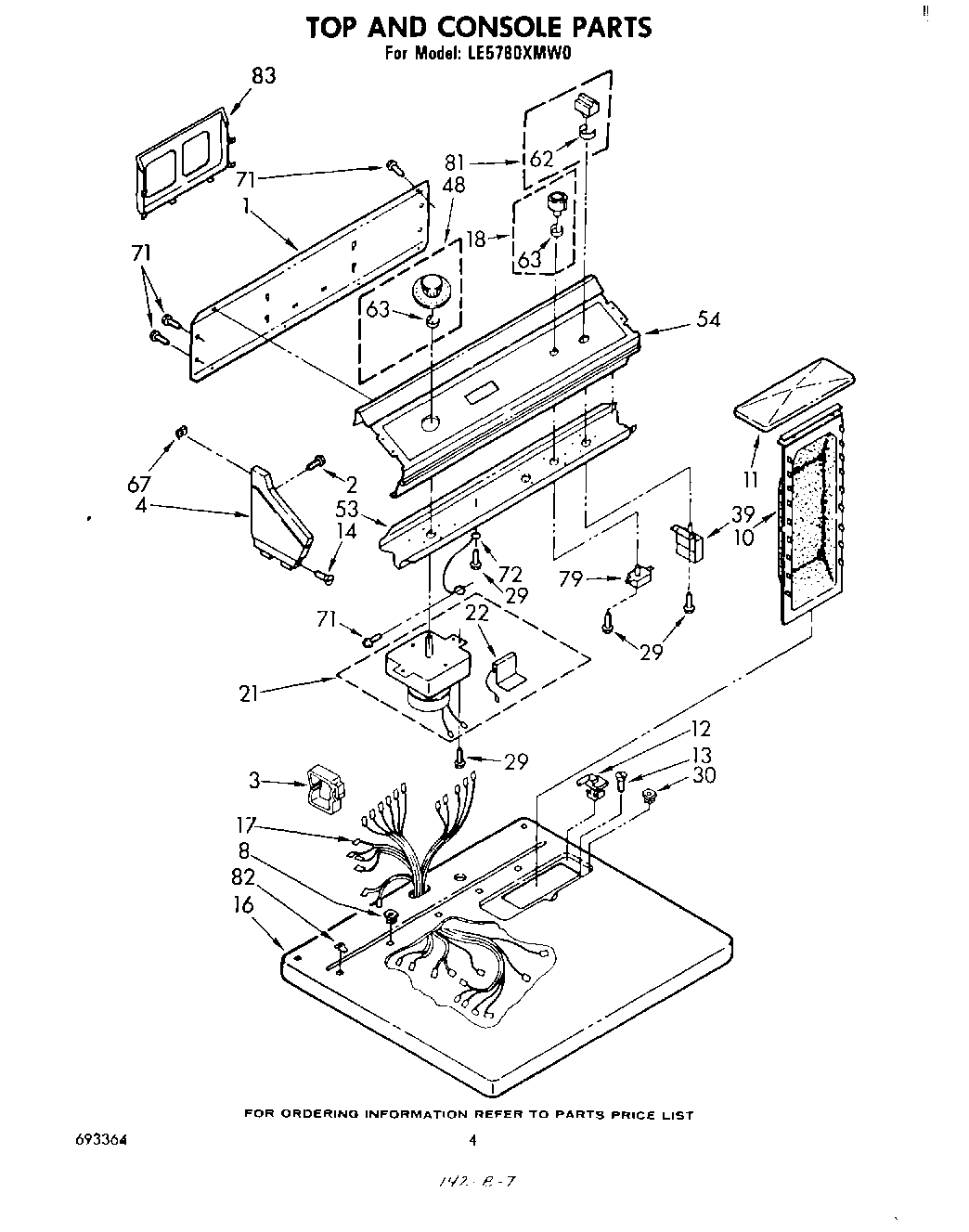

LE5780XMW0 03 – SECTION

Products

Position	Product
	WPL 299805
	799344 Whirlpool Refrigerator Paint
	Golden Harvest (Uncut)
	Almond (Uncut)
1	Panel, Rear Console
2	WPL 355326
3	Clip, Harness (Rear Bulkhead Area)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	Top (Golden Harvest)
16	Top (Almond)
16	top (white)
17	Harness, Electic Wiring
18	Control Knob Assembly
21	Timer & Resistor Assembly, 60 Hz.
22	279872 Whirlpool Resistor
29	WP3390631 Whirlpool Screw
30	98460 Whirlpool Nut
39	Switch, Push-To-Start (Alternate)
39	(Alt.)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
63	WP688805 Whirlpool Spring Clip
67	Clip (4)
71	SCREW
72	Wire, Ground
79	Switch, Temperature Selector
81	Button Assembly
82	Stop, Push-In Top
83	WPL 693671
83	350938 Whirlpool Spray Gun
83	72017 Whirlpool Appliance Touch-Up Paint White
83	350956 Whirlpool Spray Assembly
83	Instructions, Installation
83	WP72107 Whirlpool Touchup
83	WPL 693849
83	Leveler (Thinner)
83	350930 Whirlpool White Spray Paint
83	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83	Golden Harvest
83	Rack, Literature
83	WPL 799351
83	List, Service Parts
